The new flagship in ambient lighting from our company!

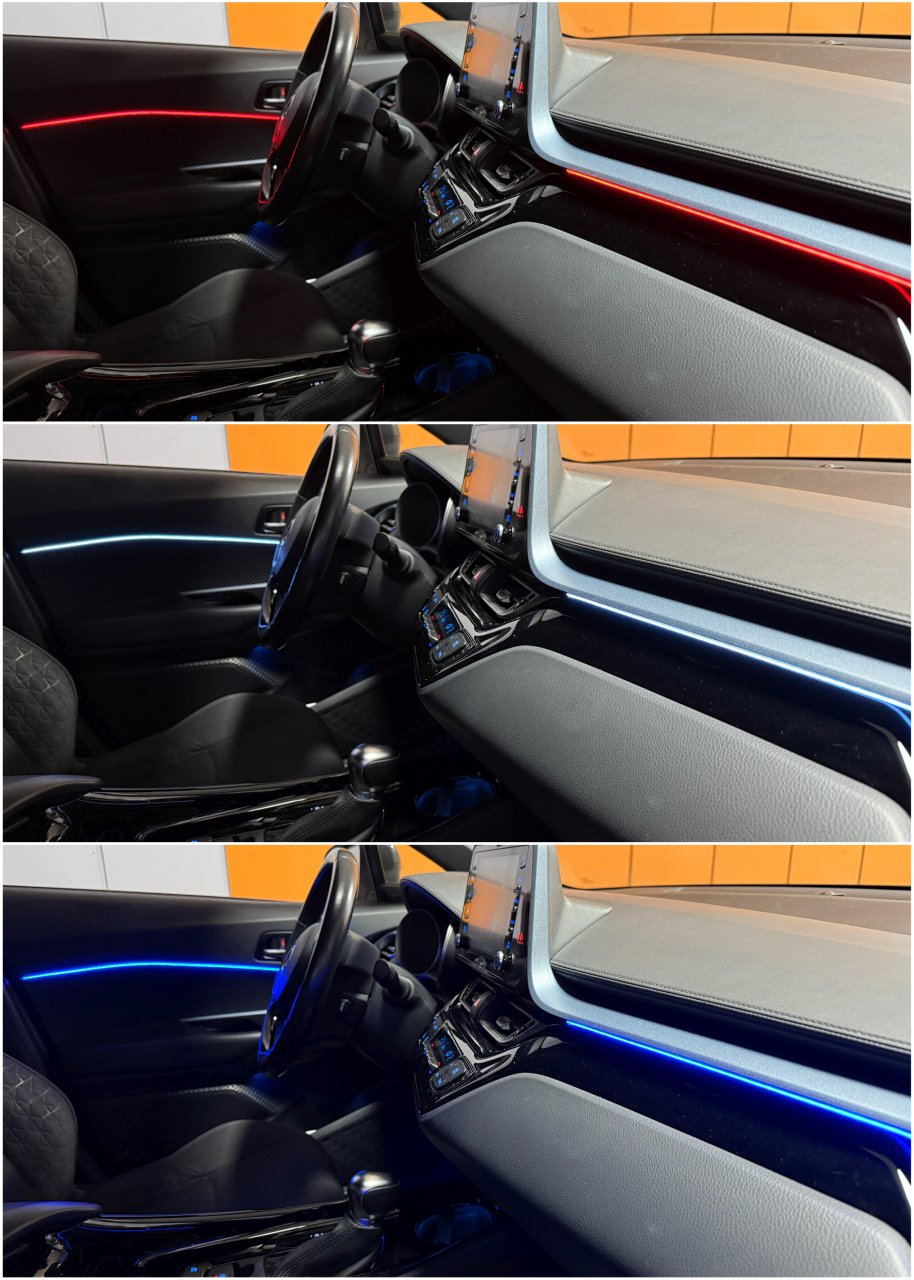

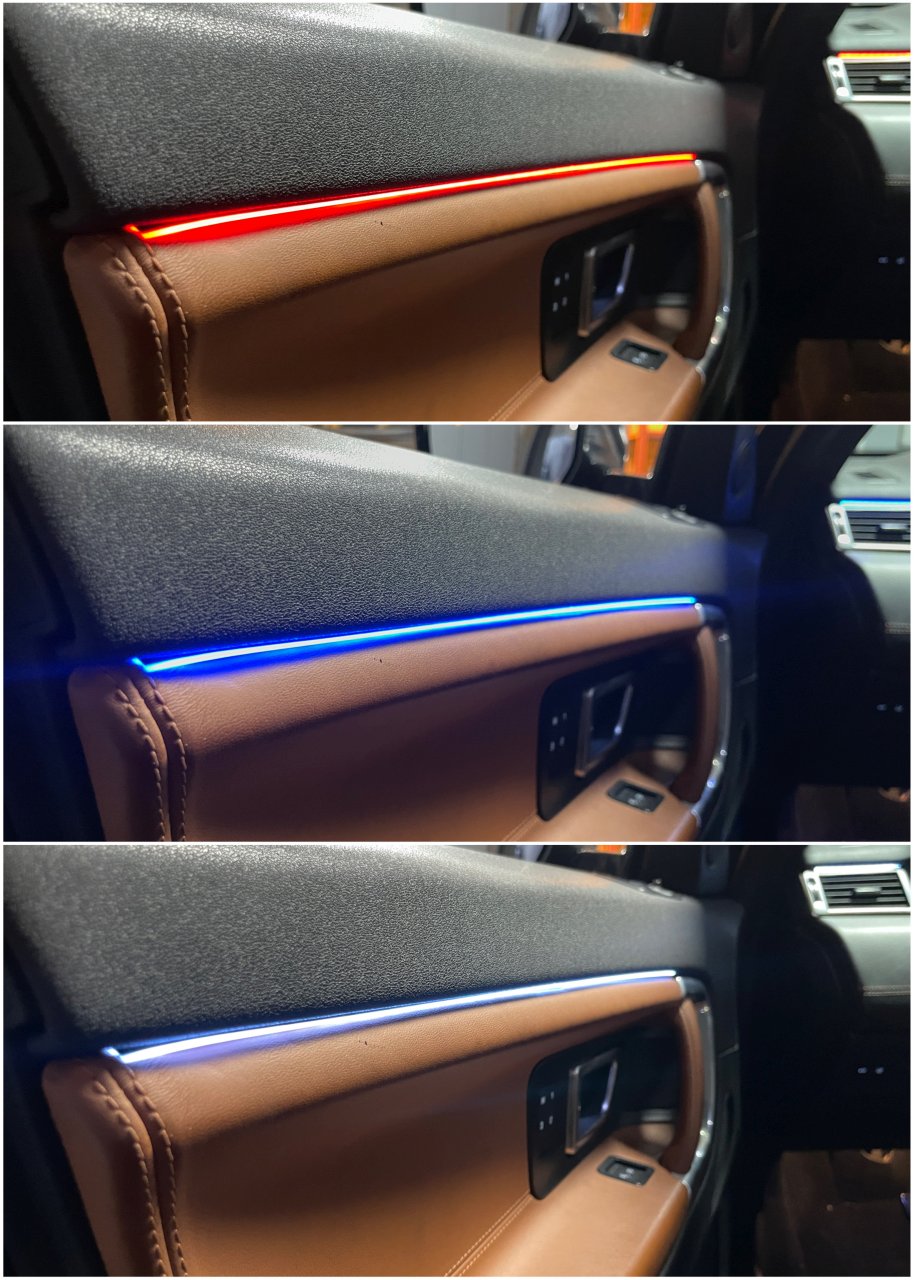

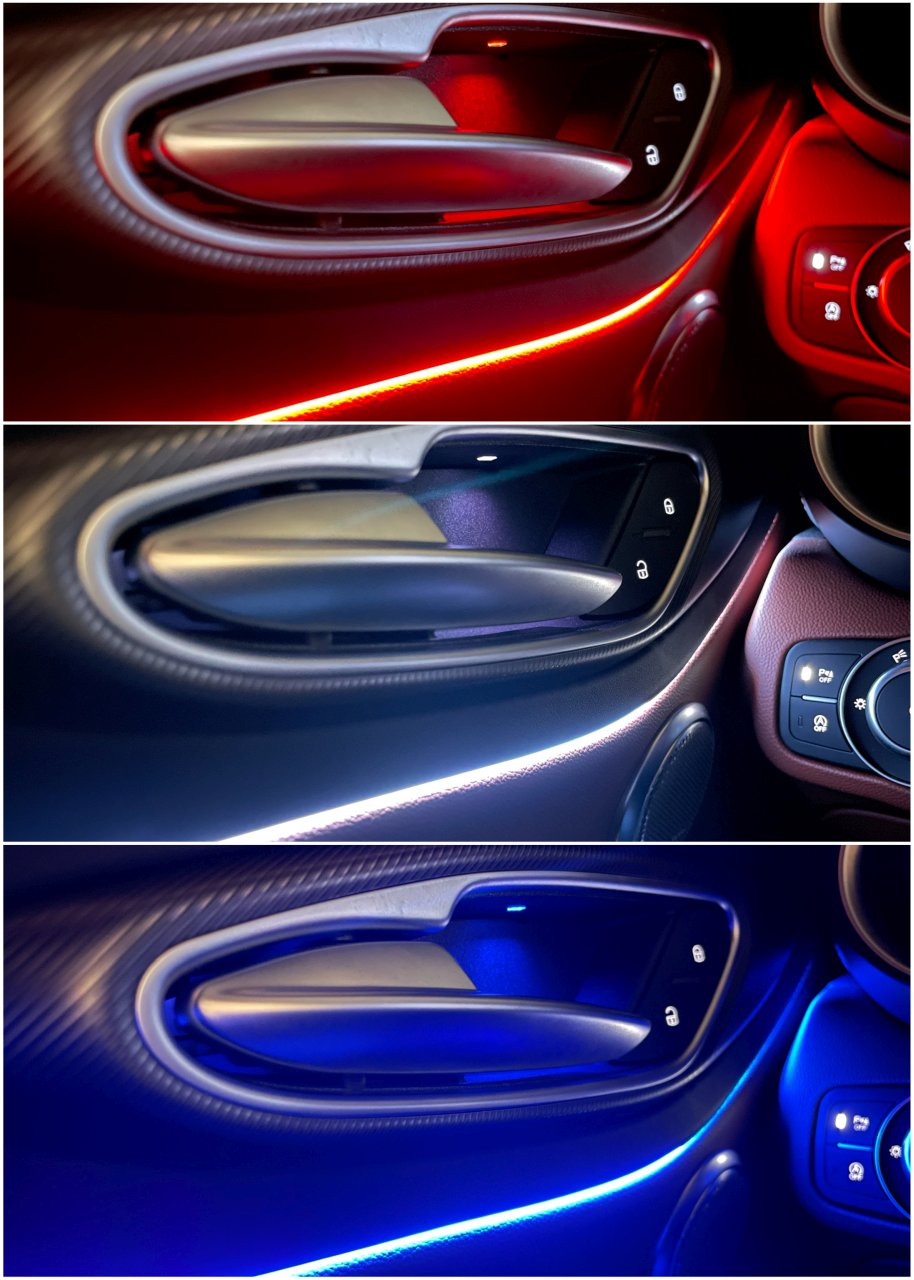

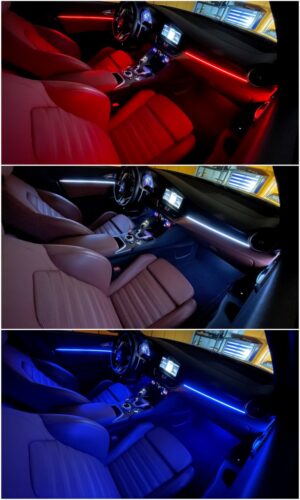

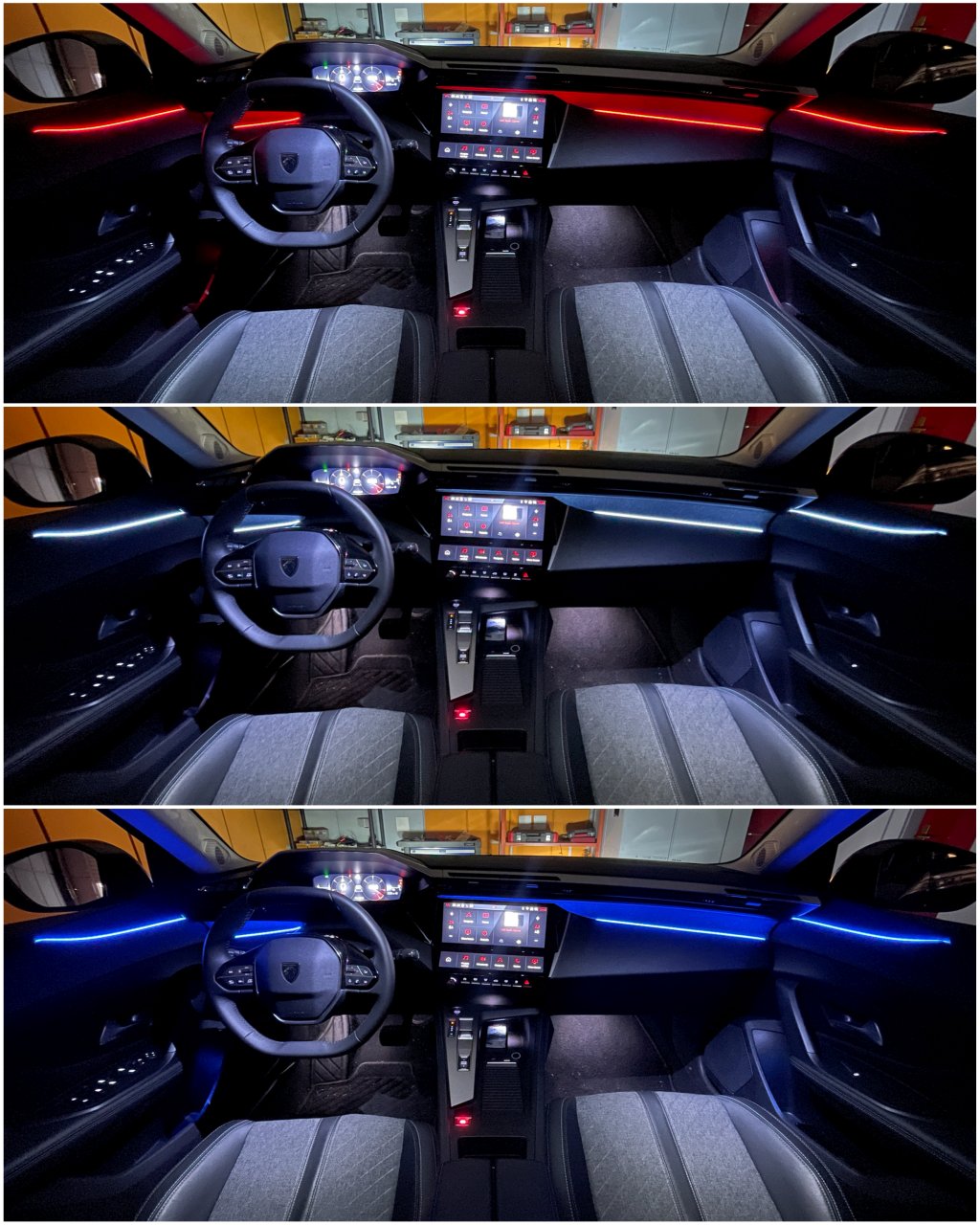

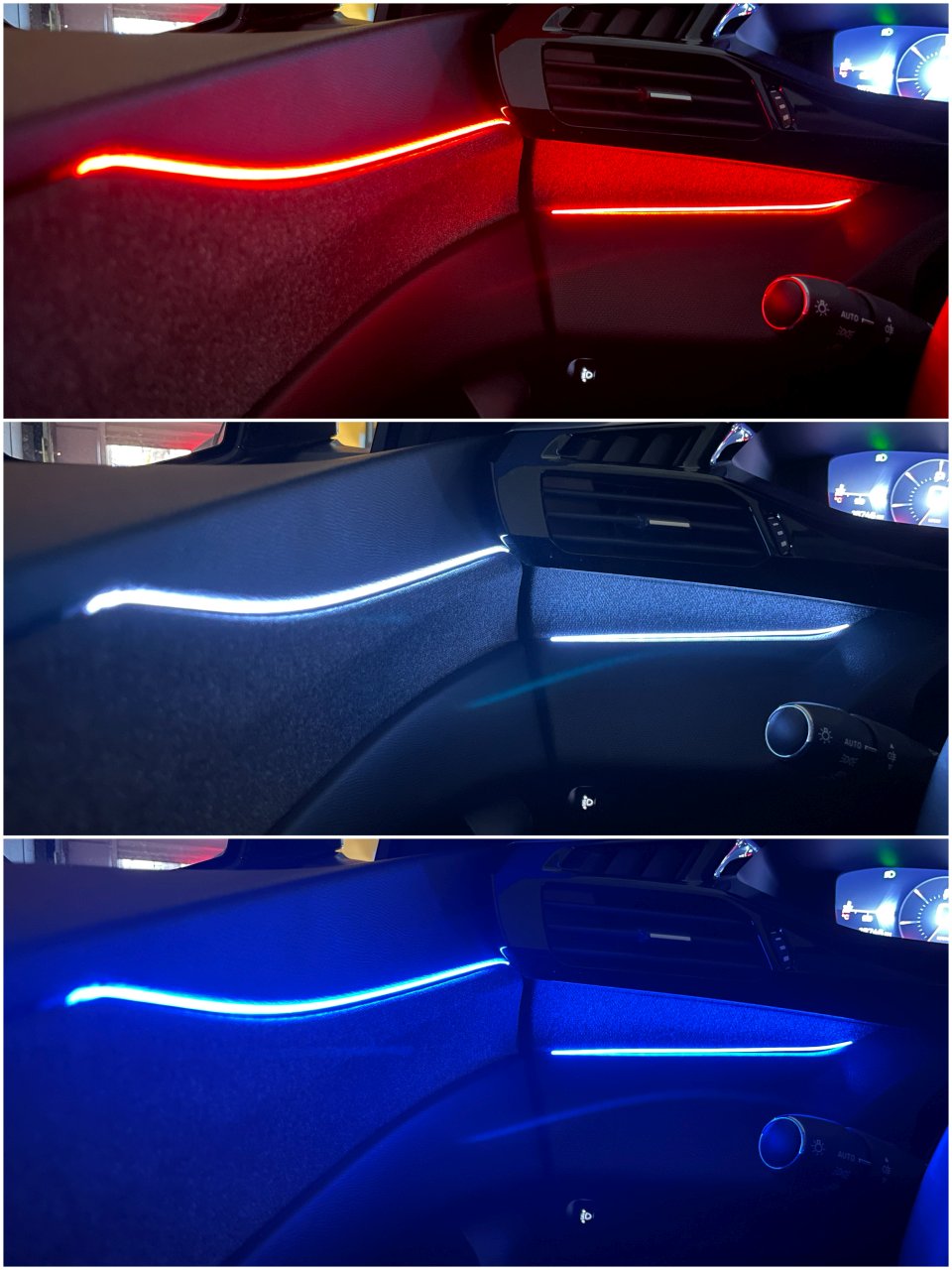

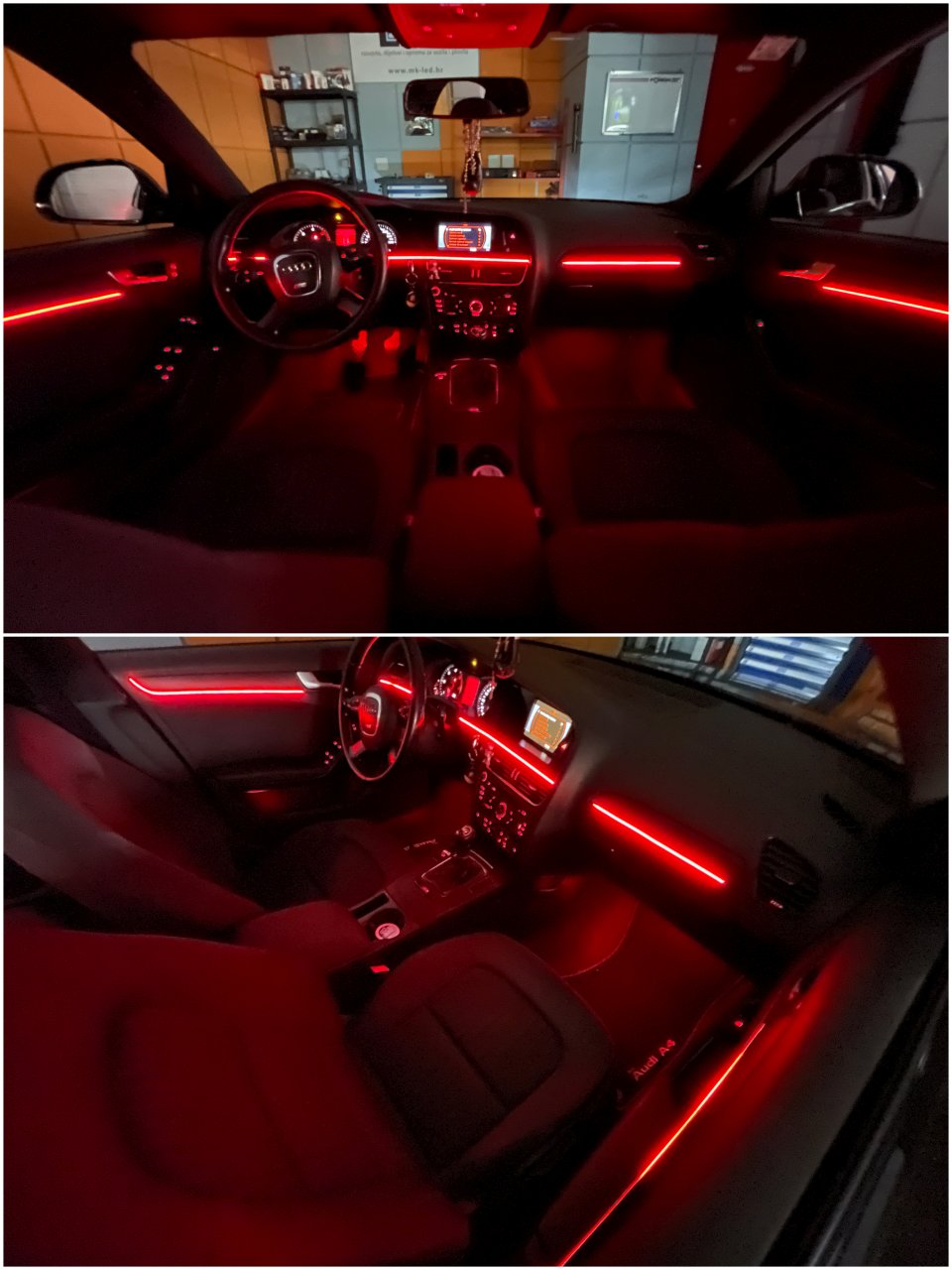

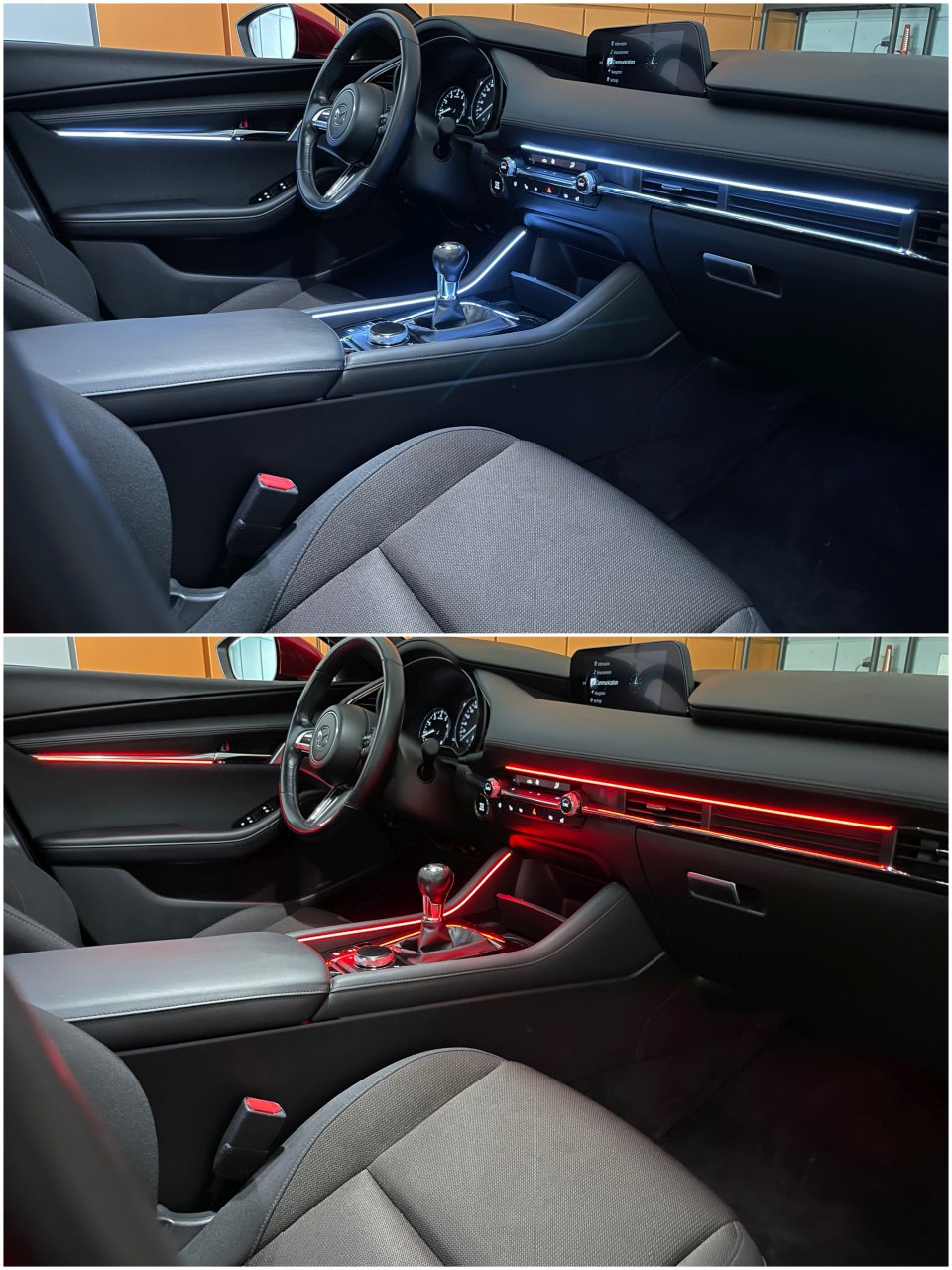

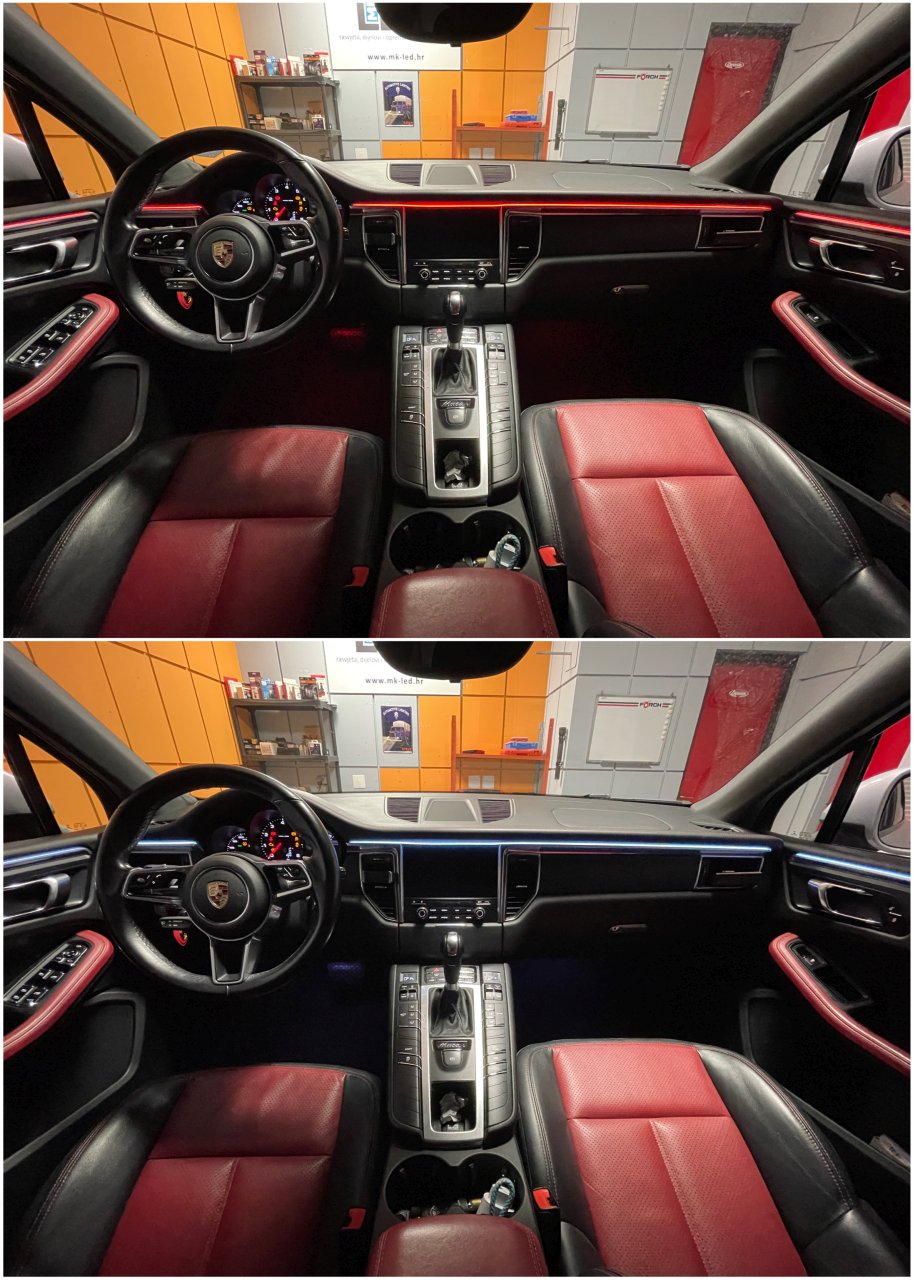

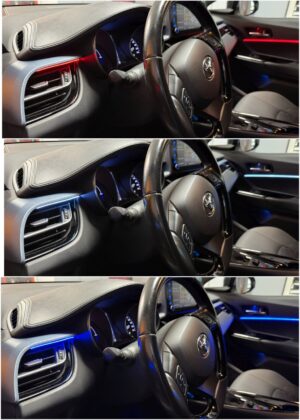

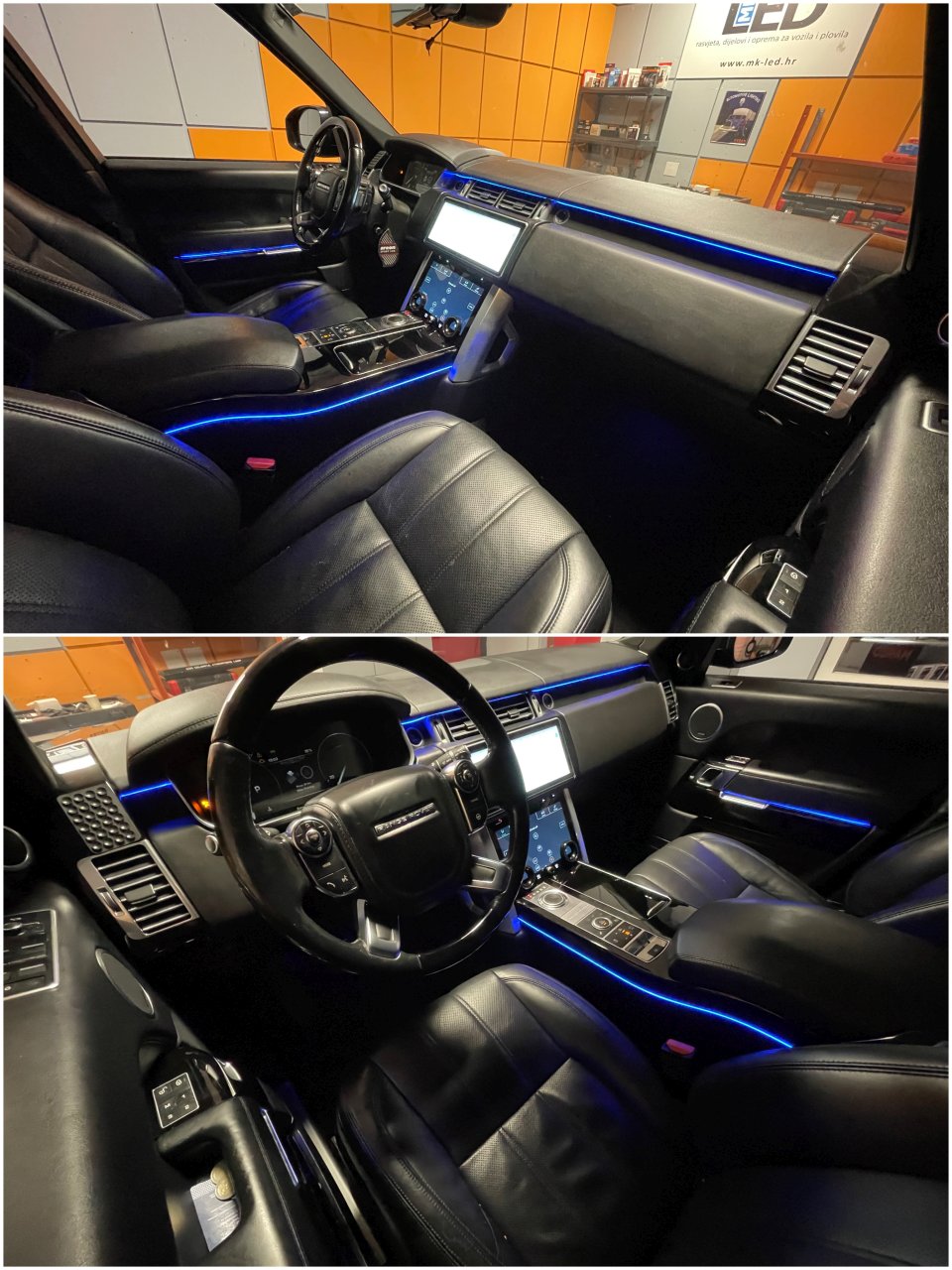

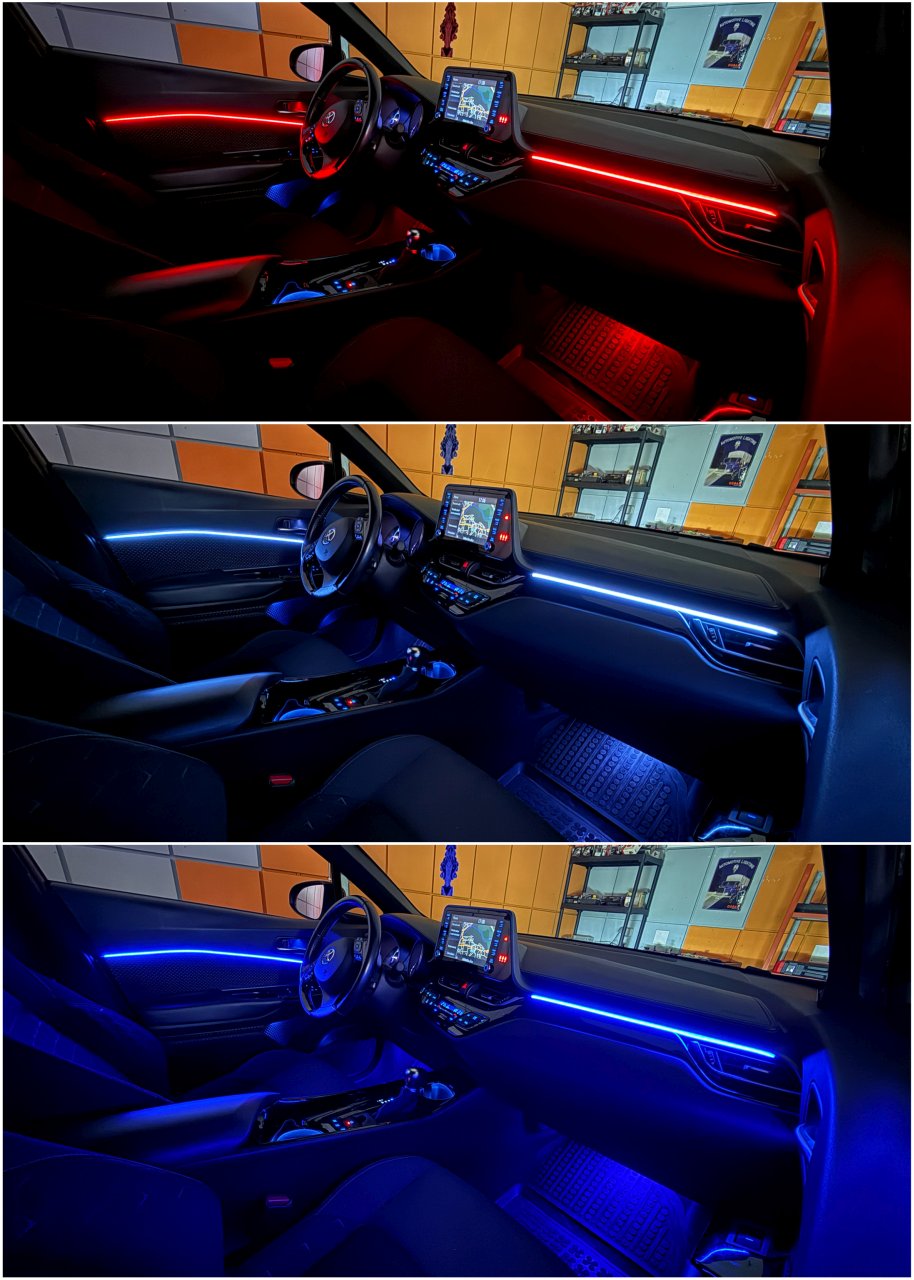

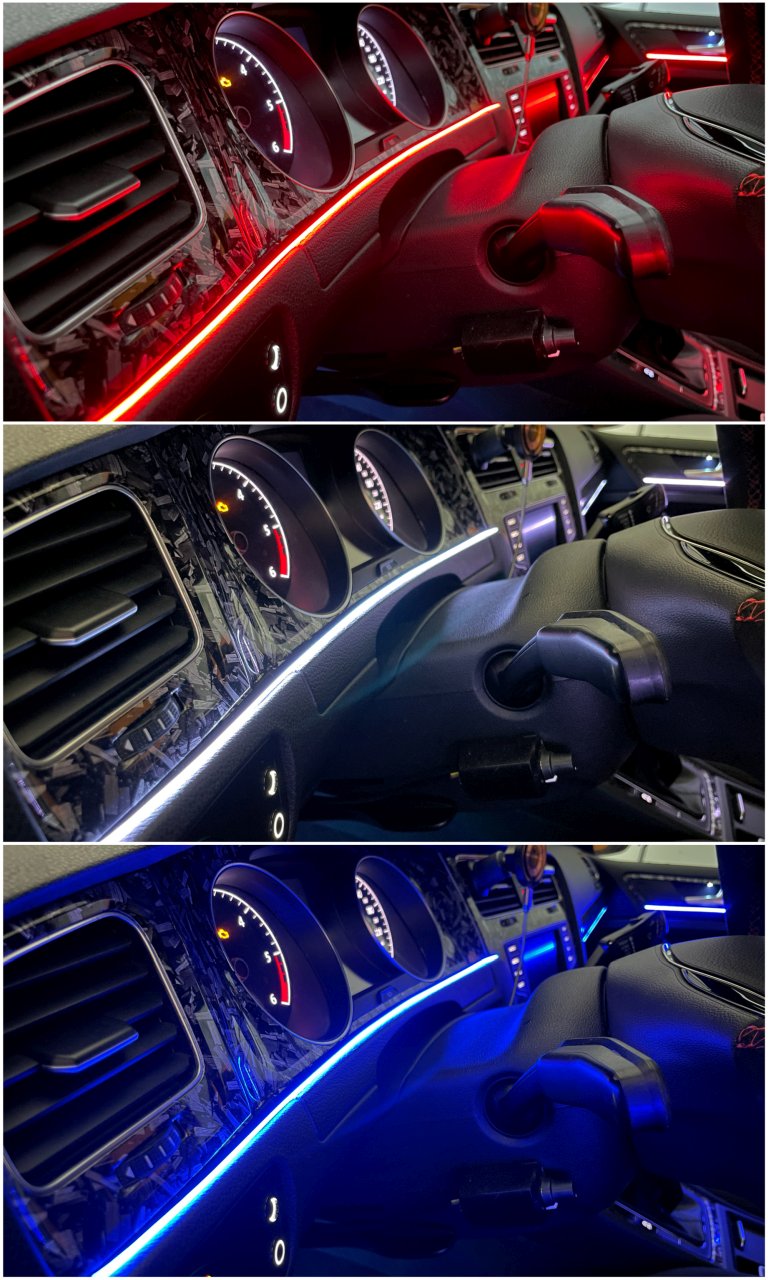

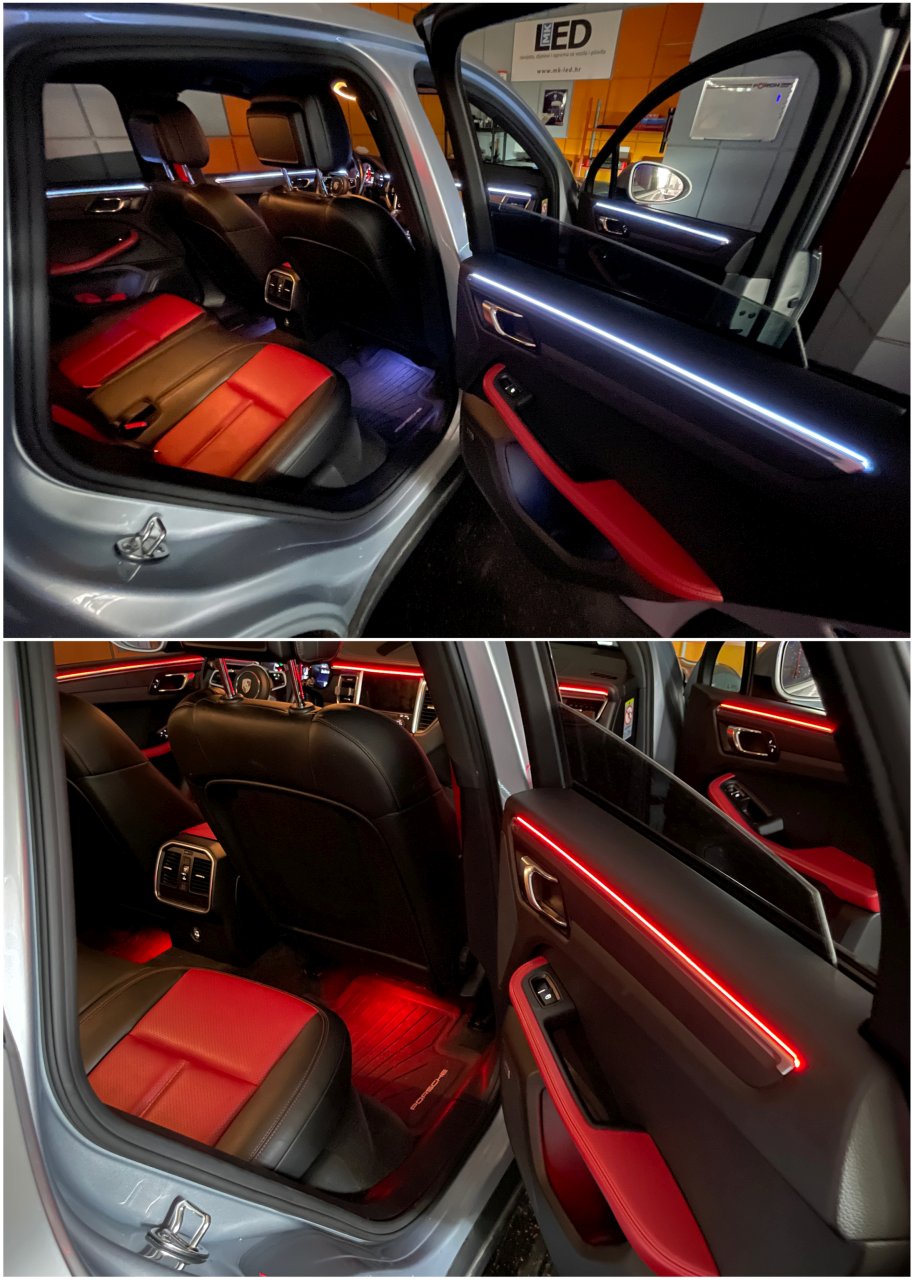

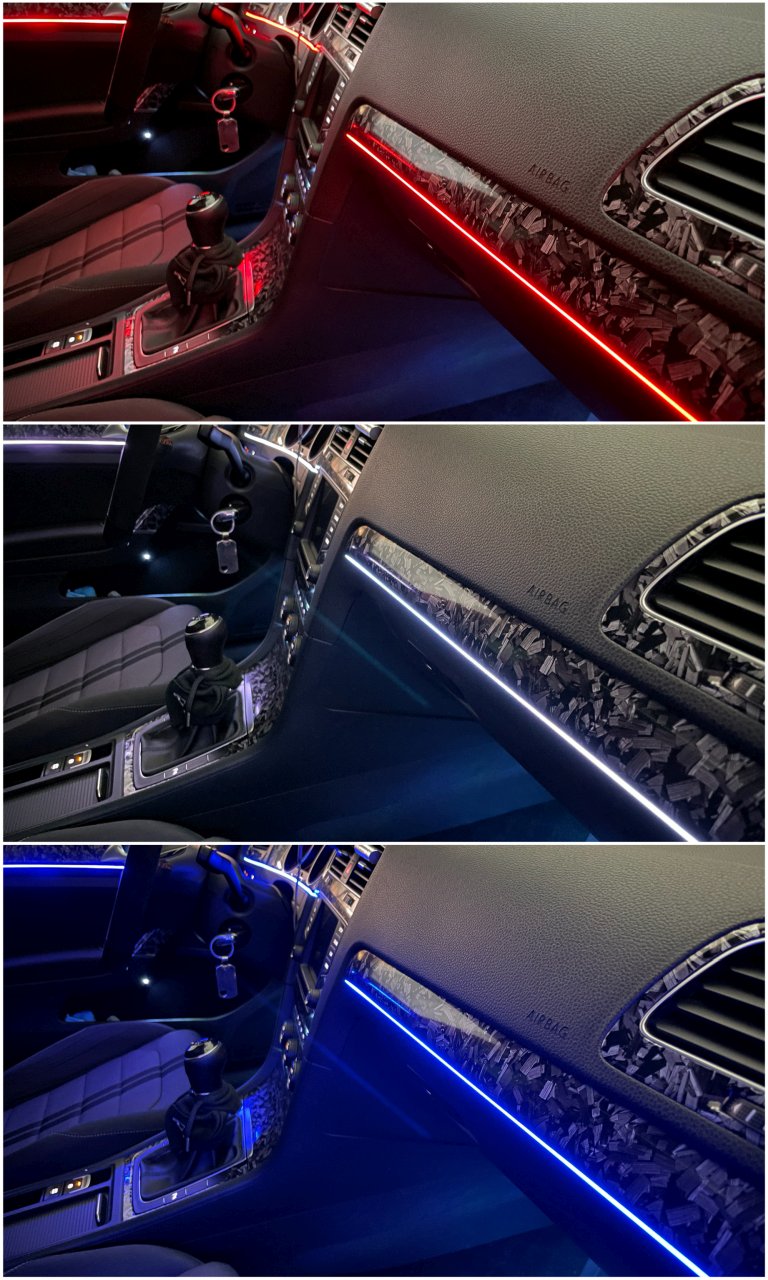

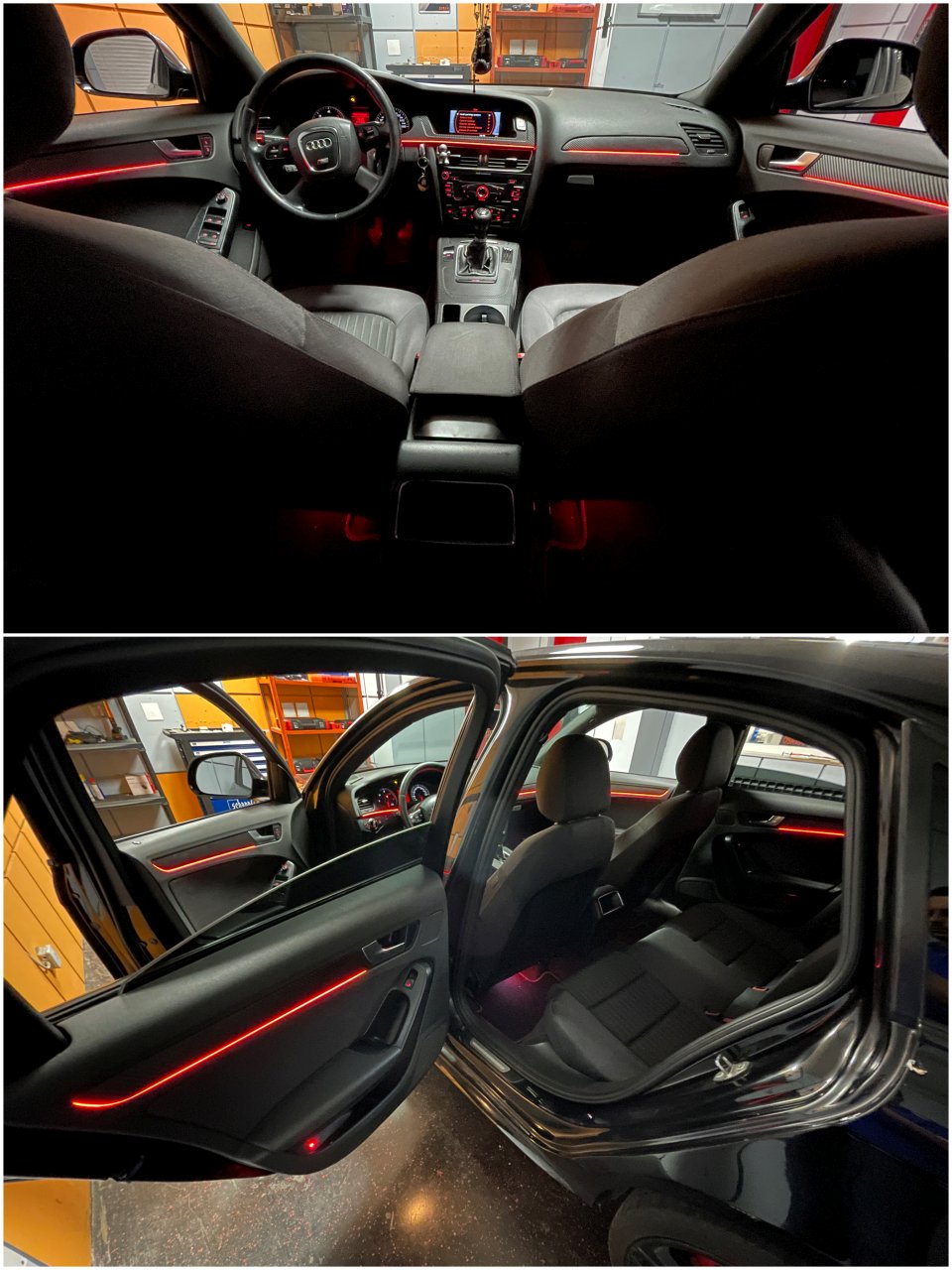

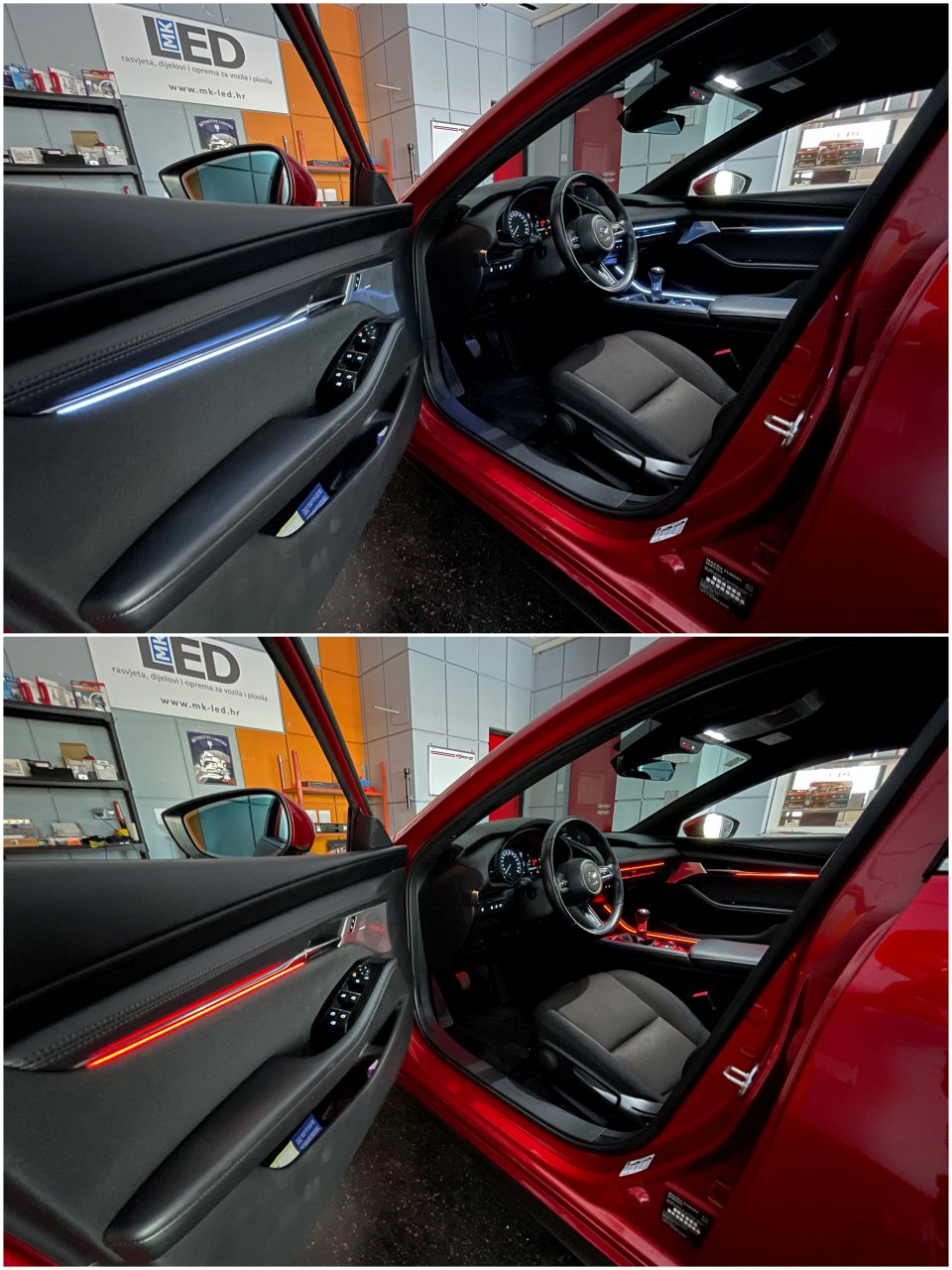

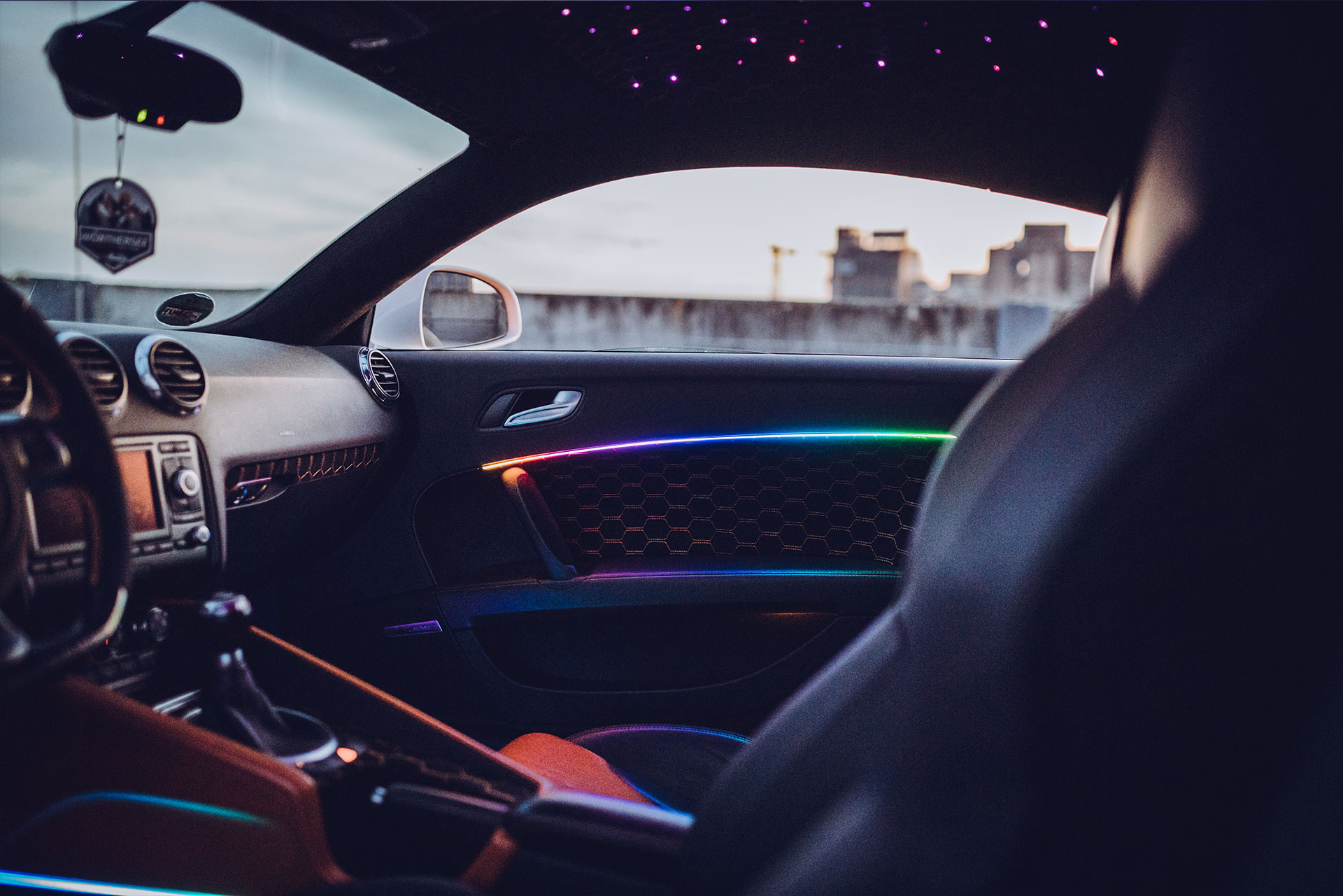

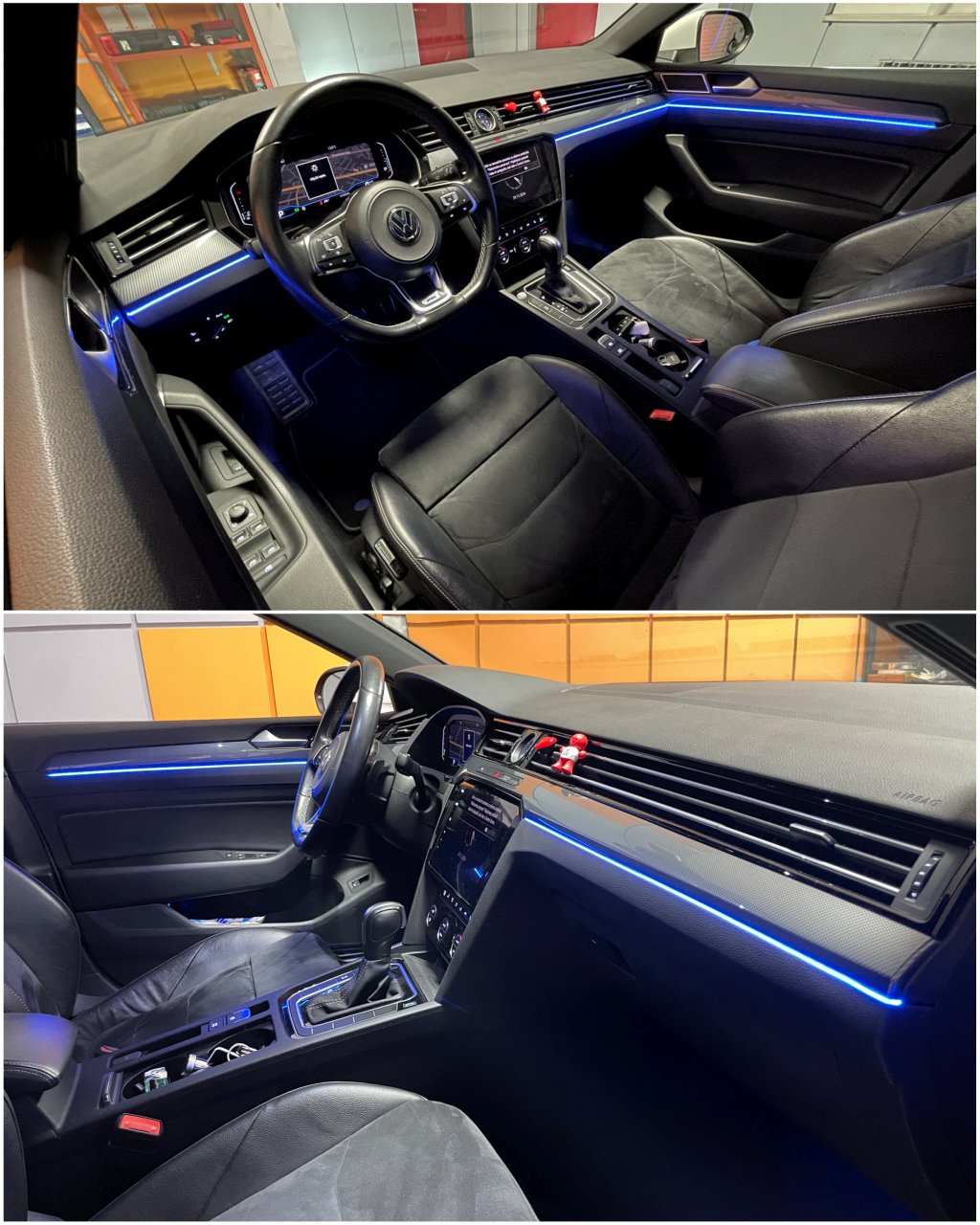

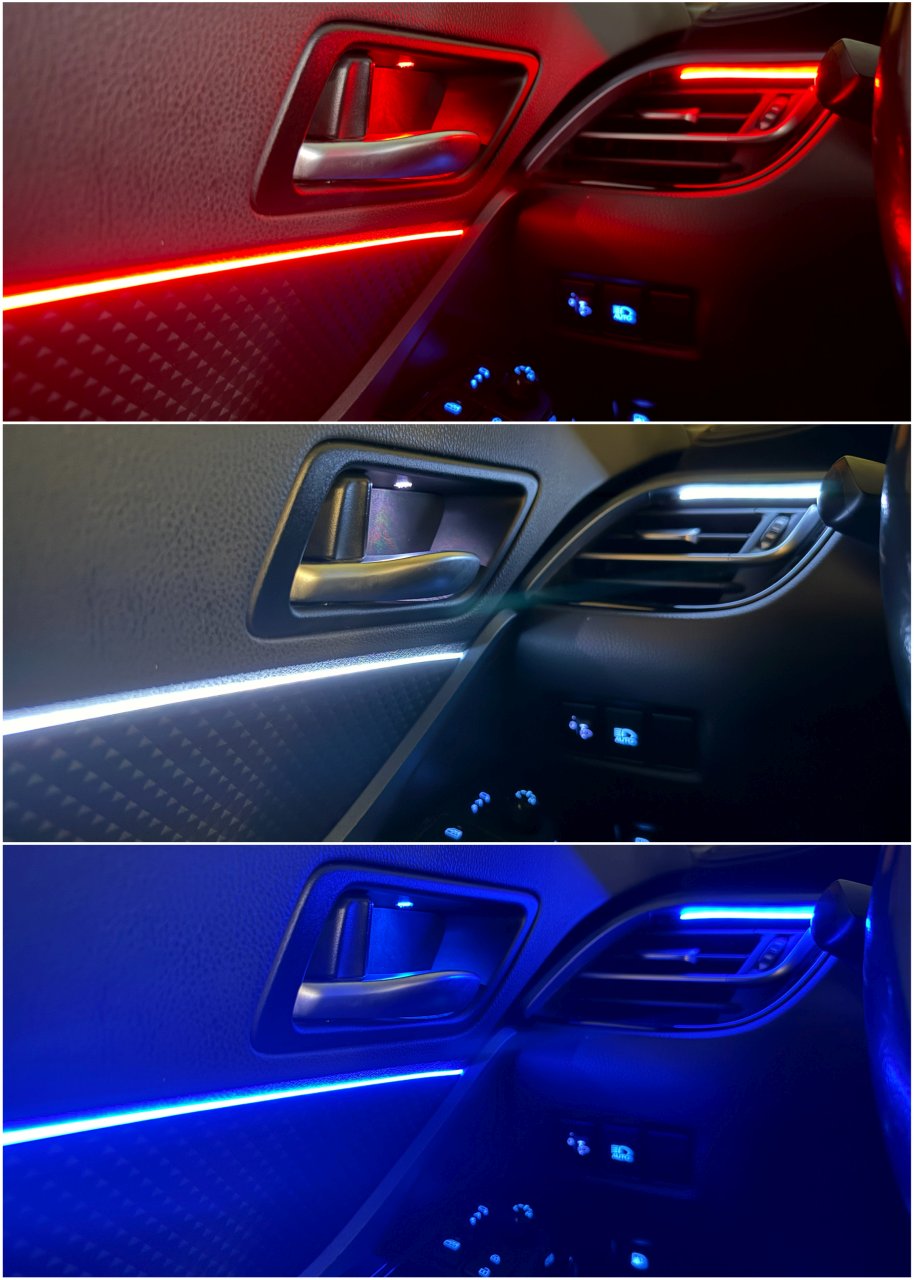

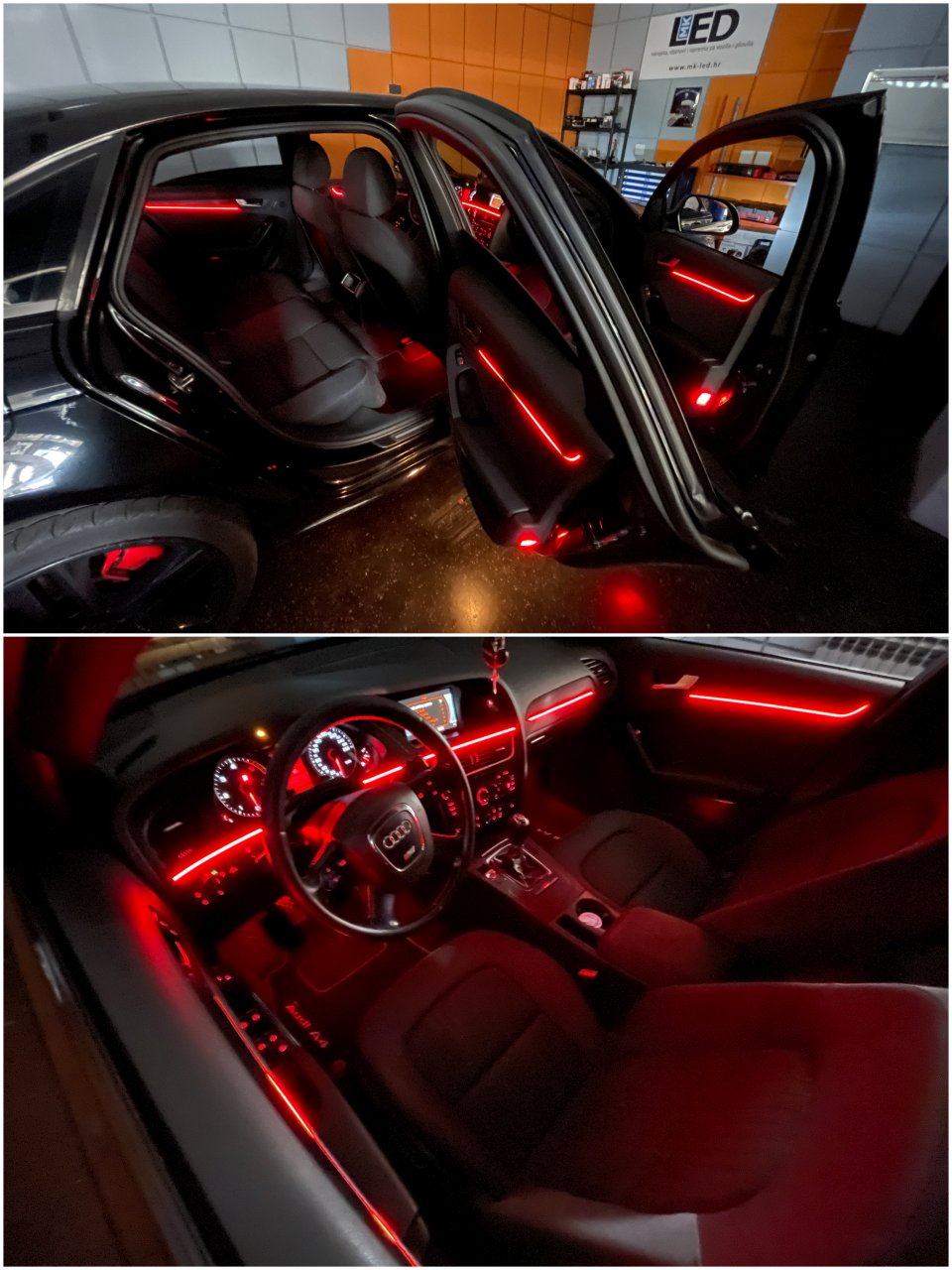

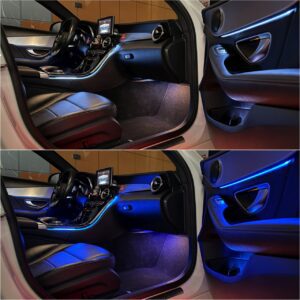

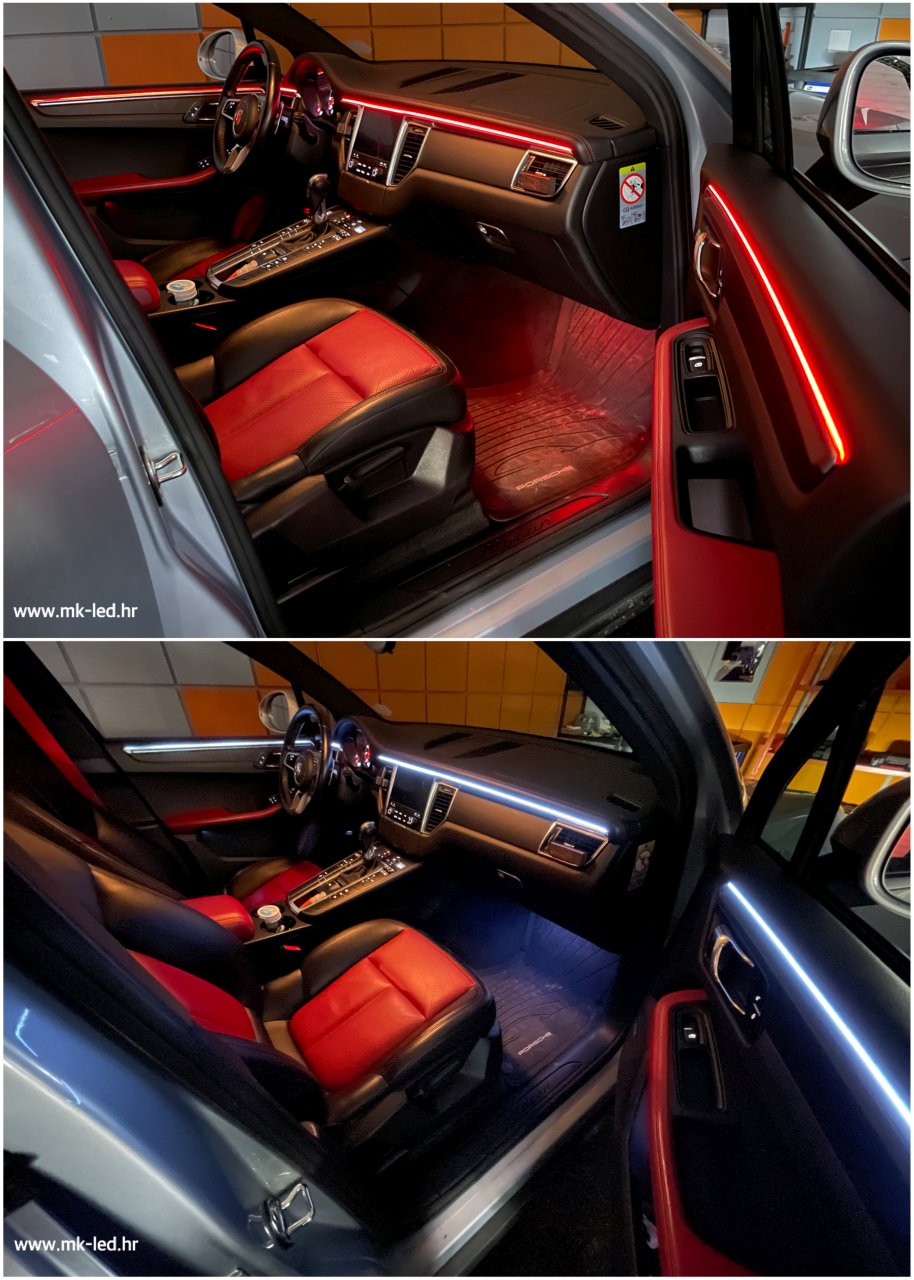

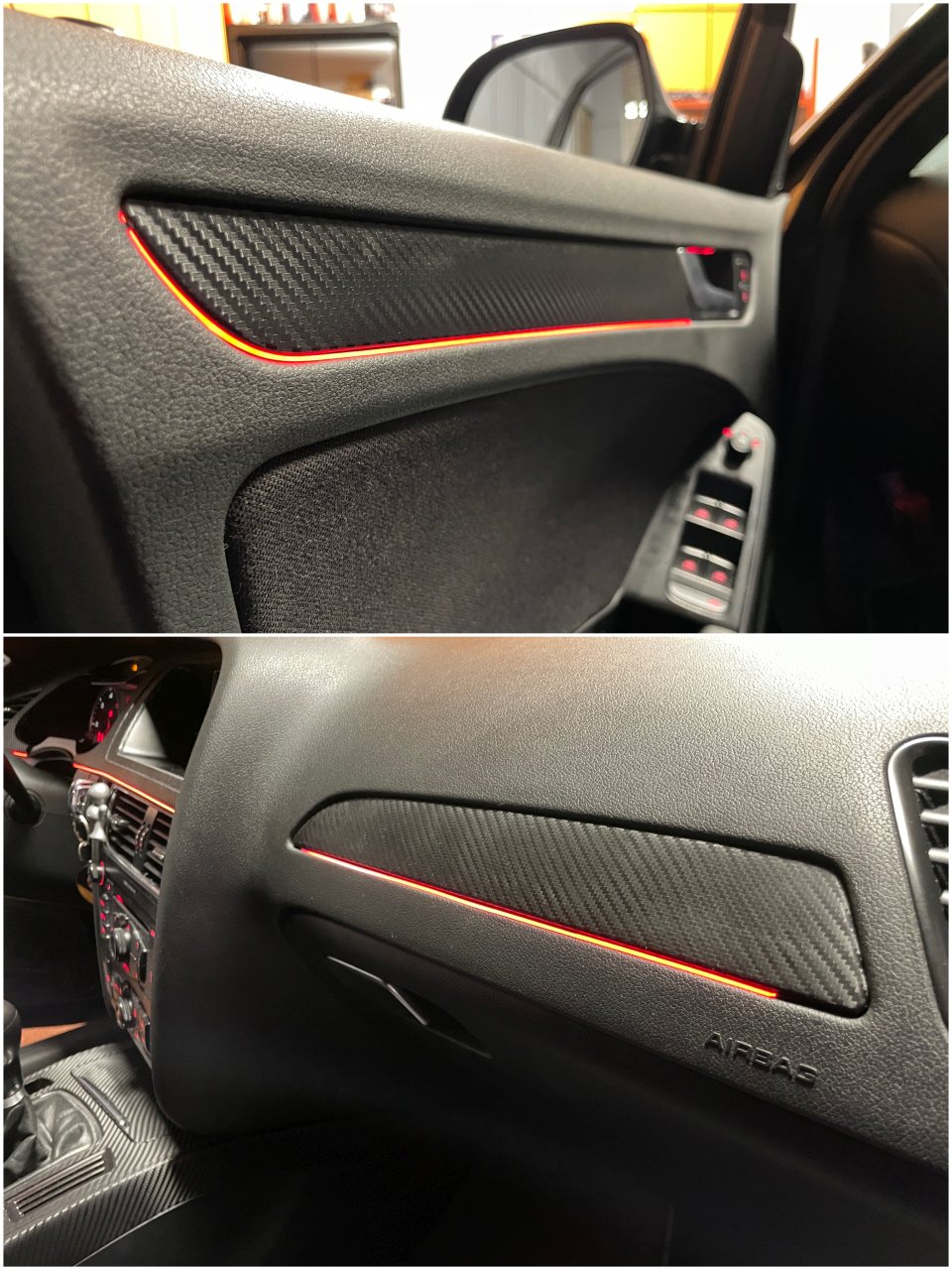

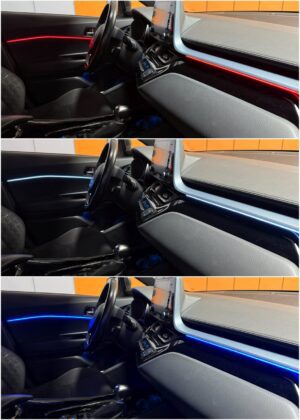

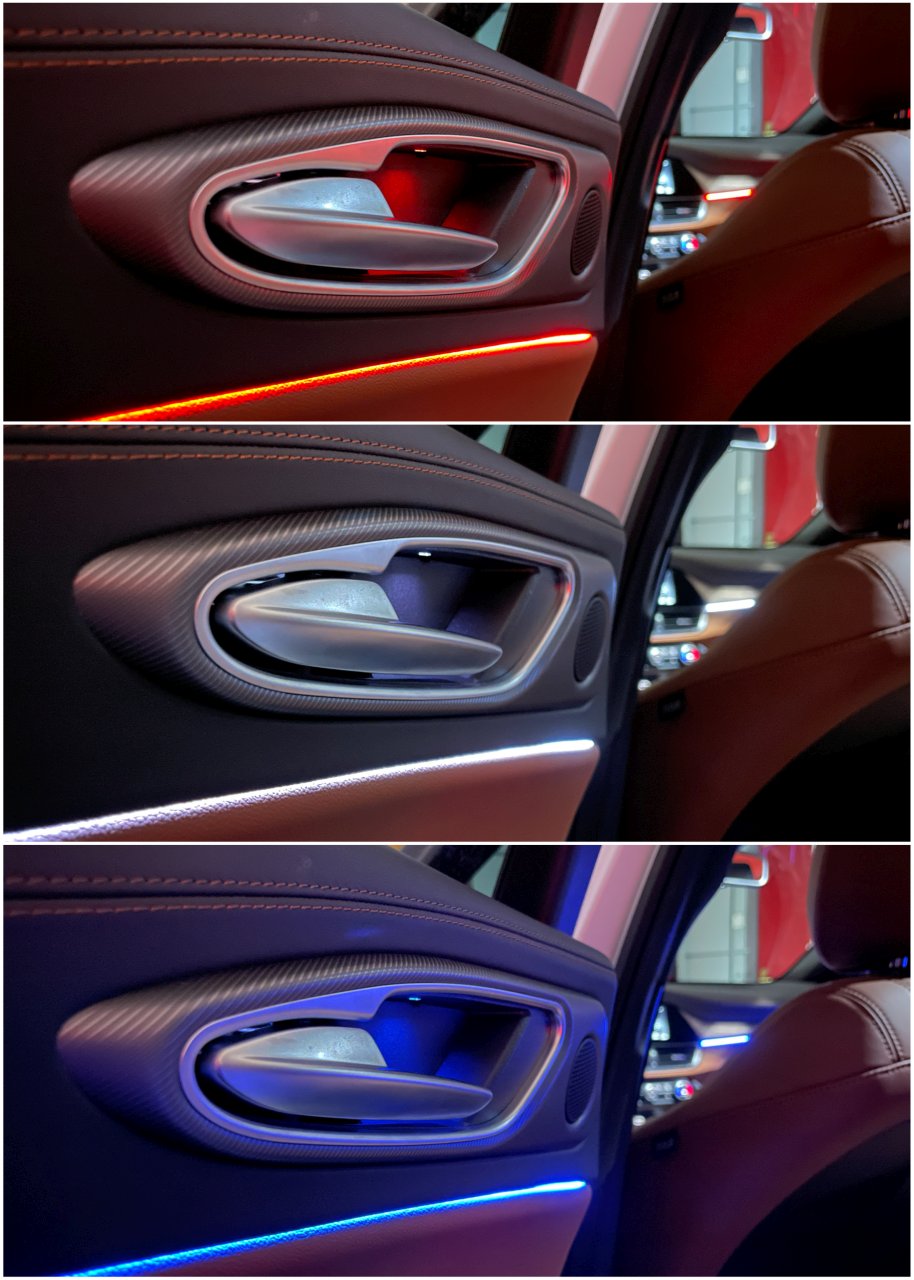

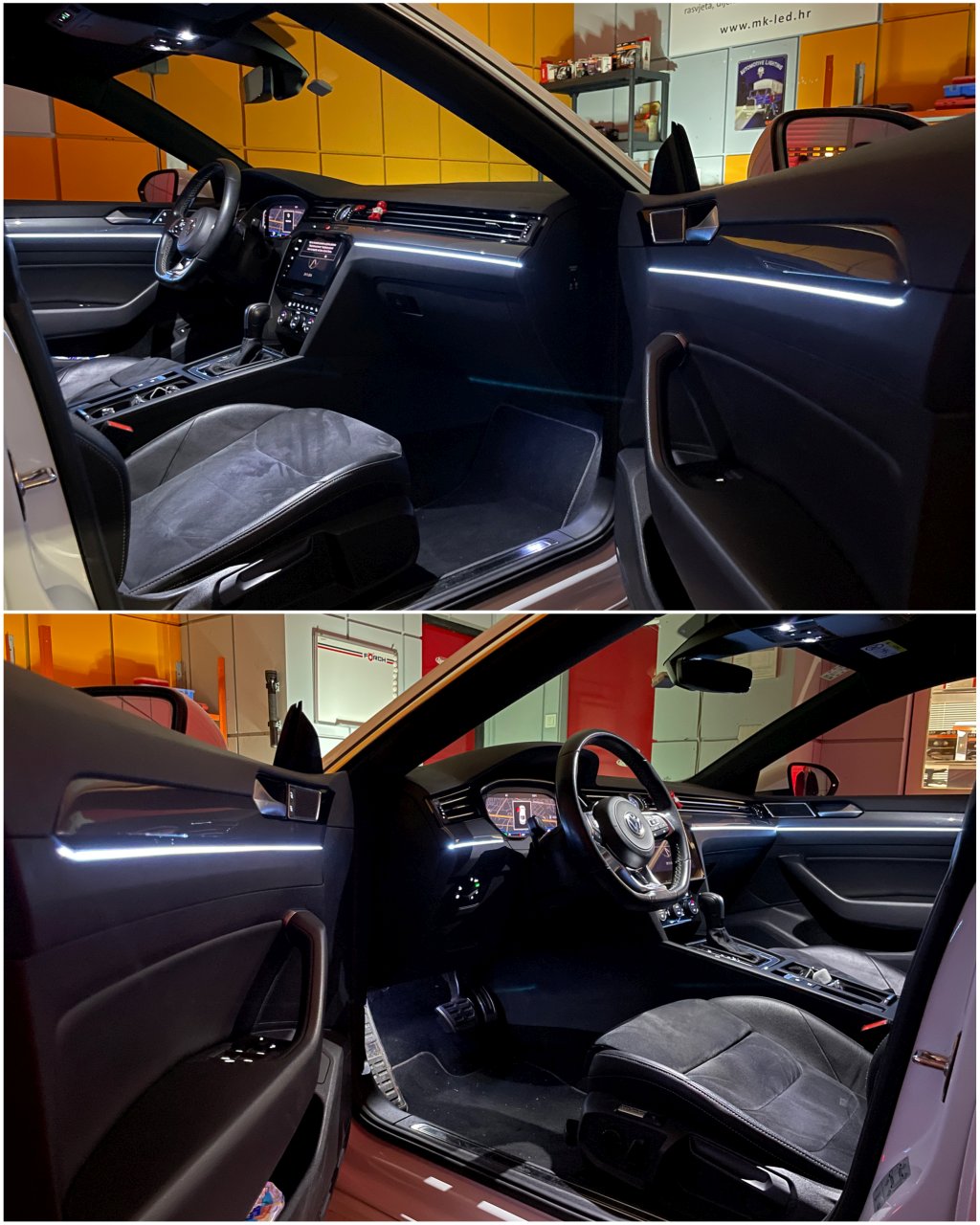

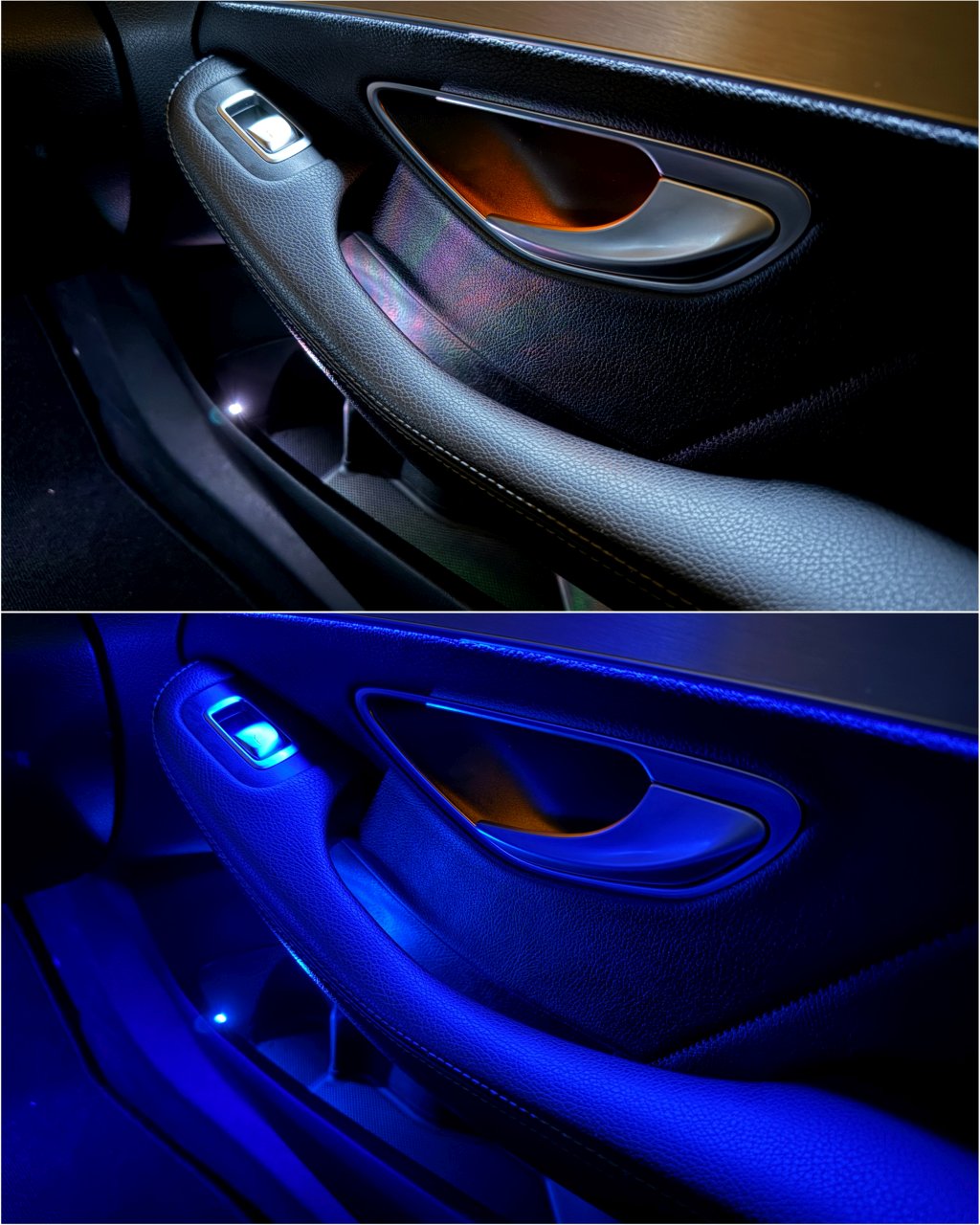

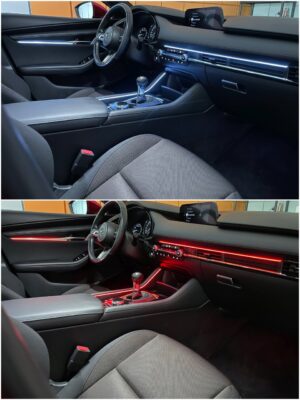

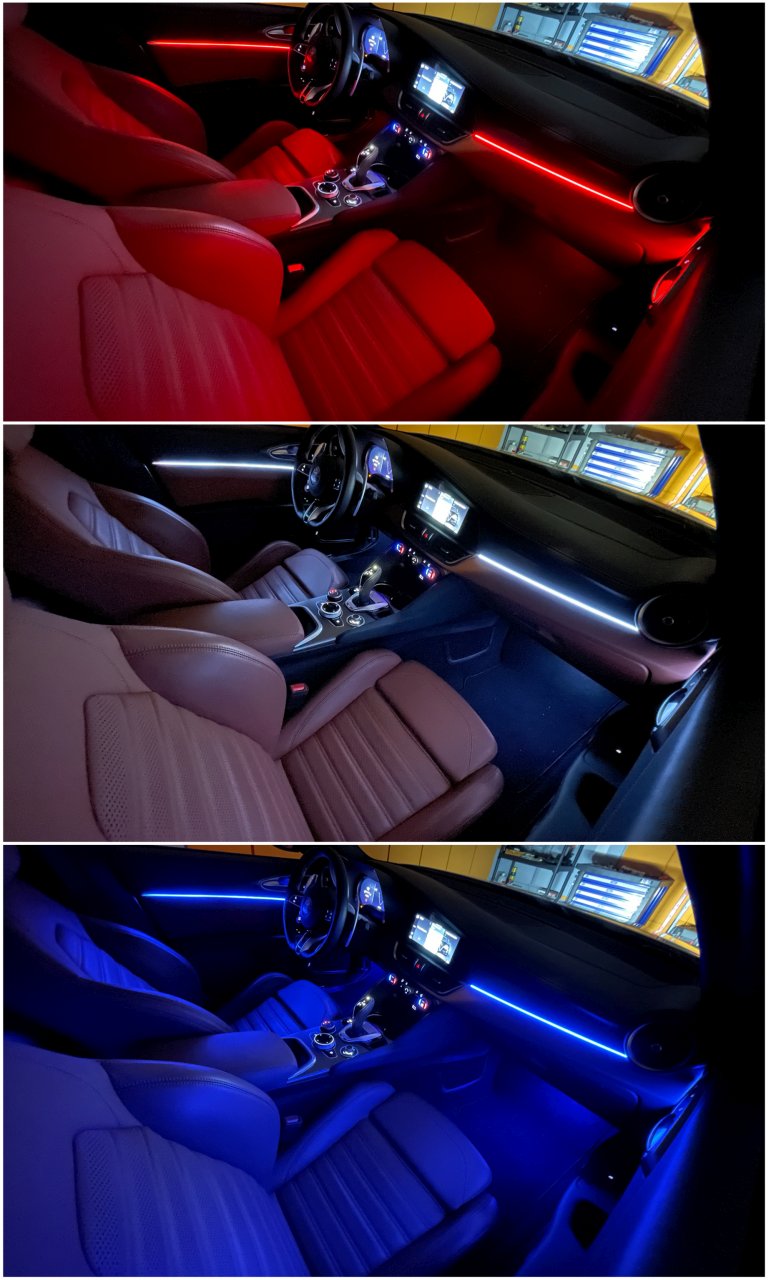

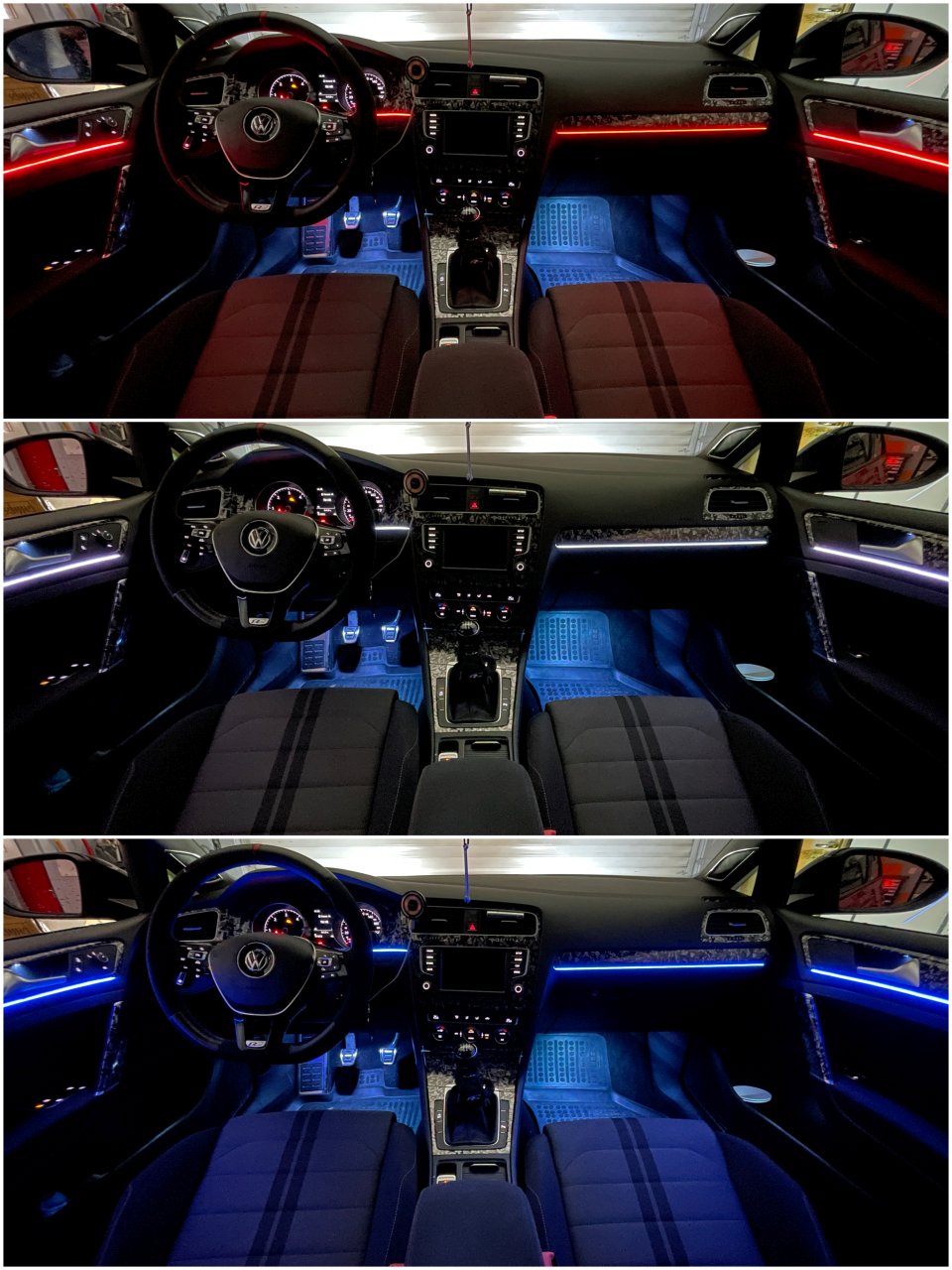

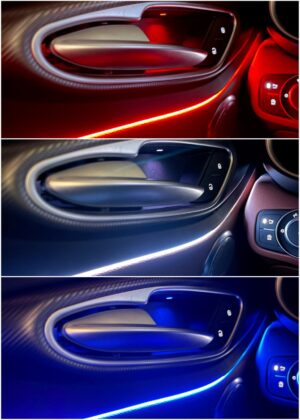

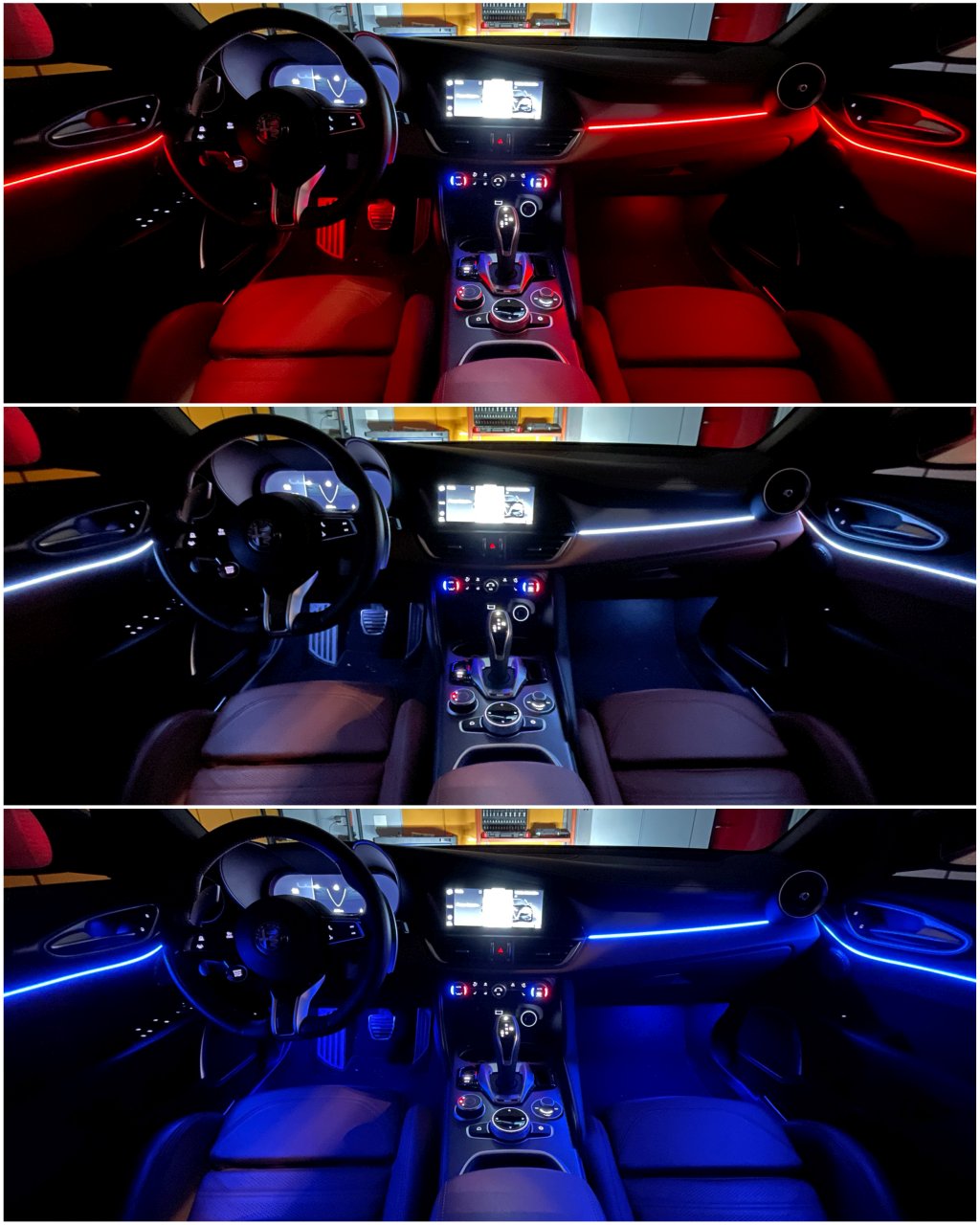

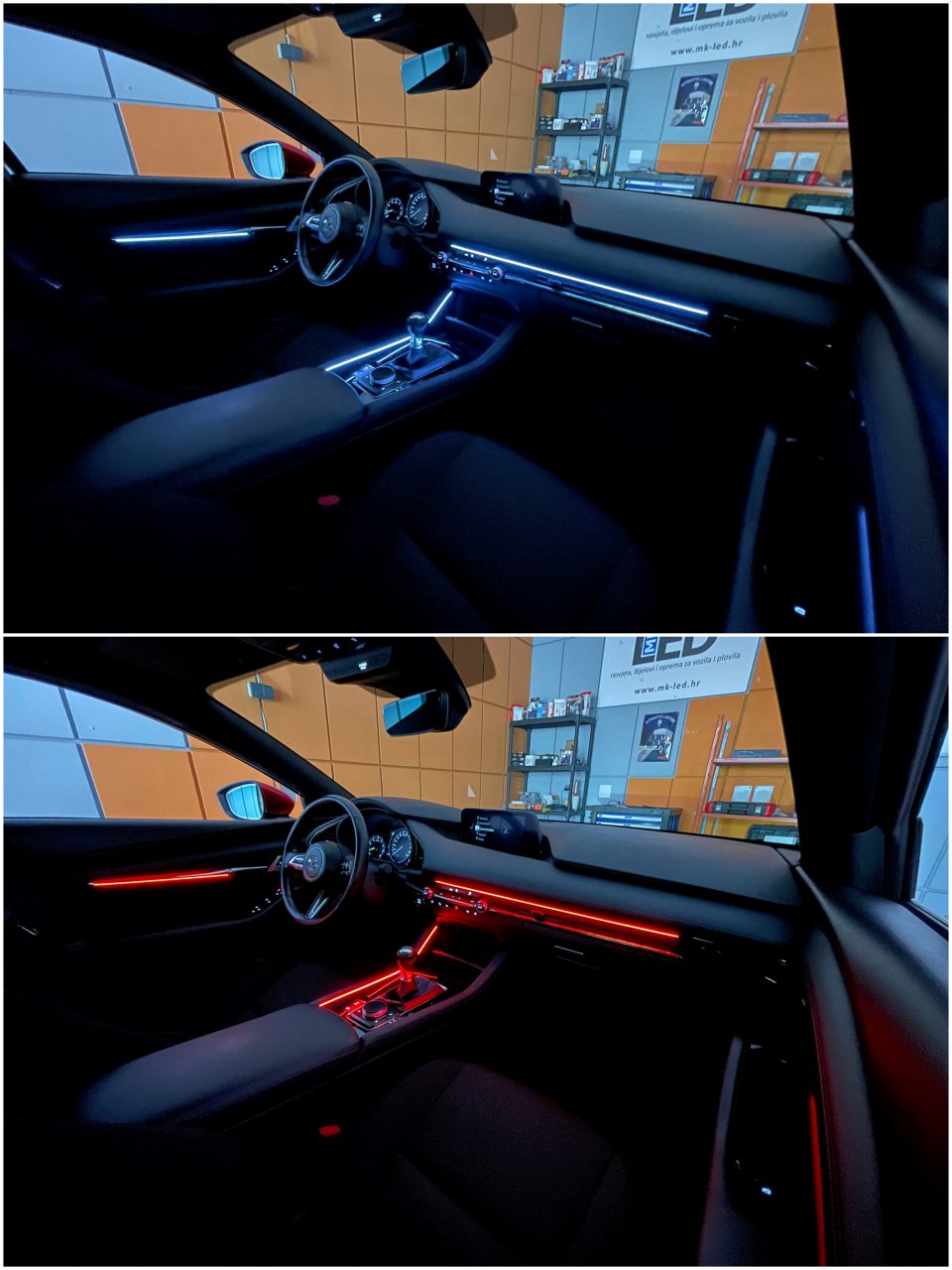

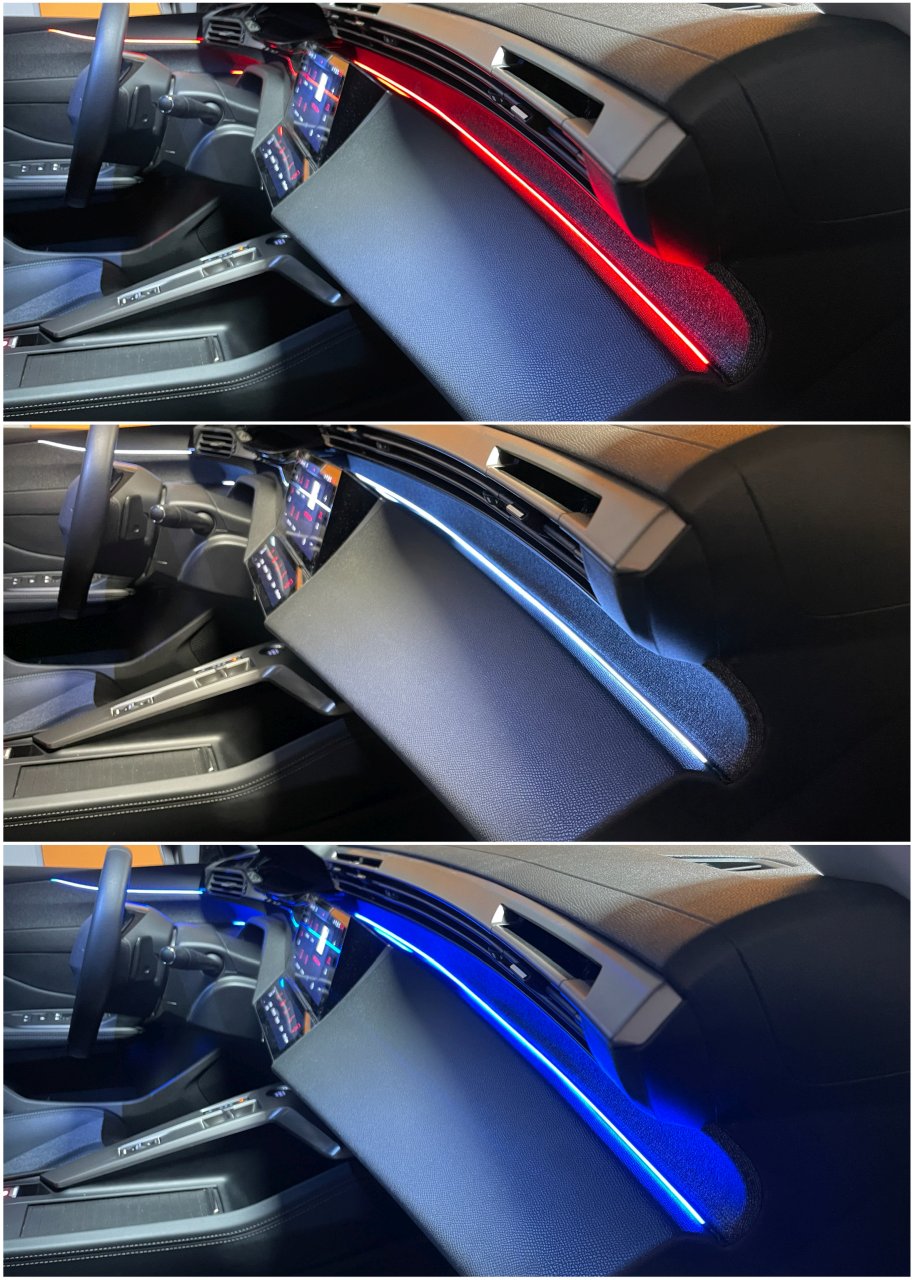

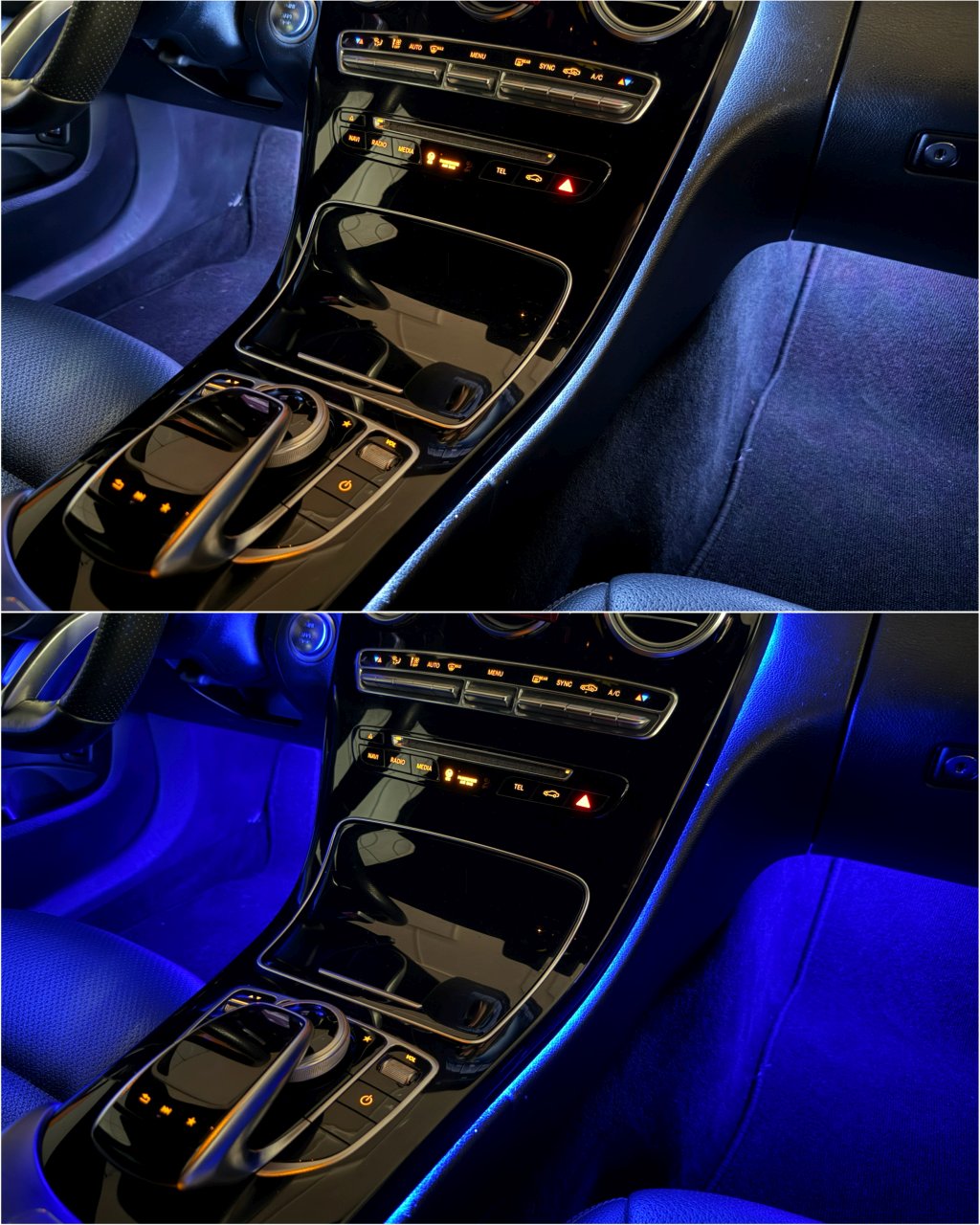

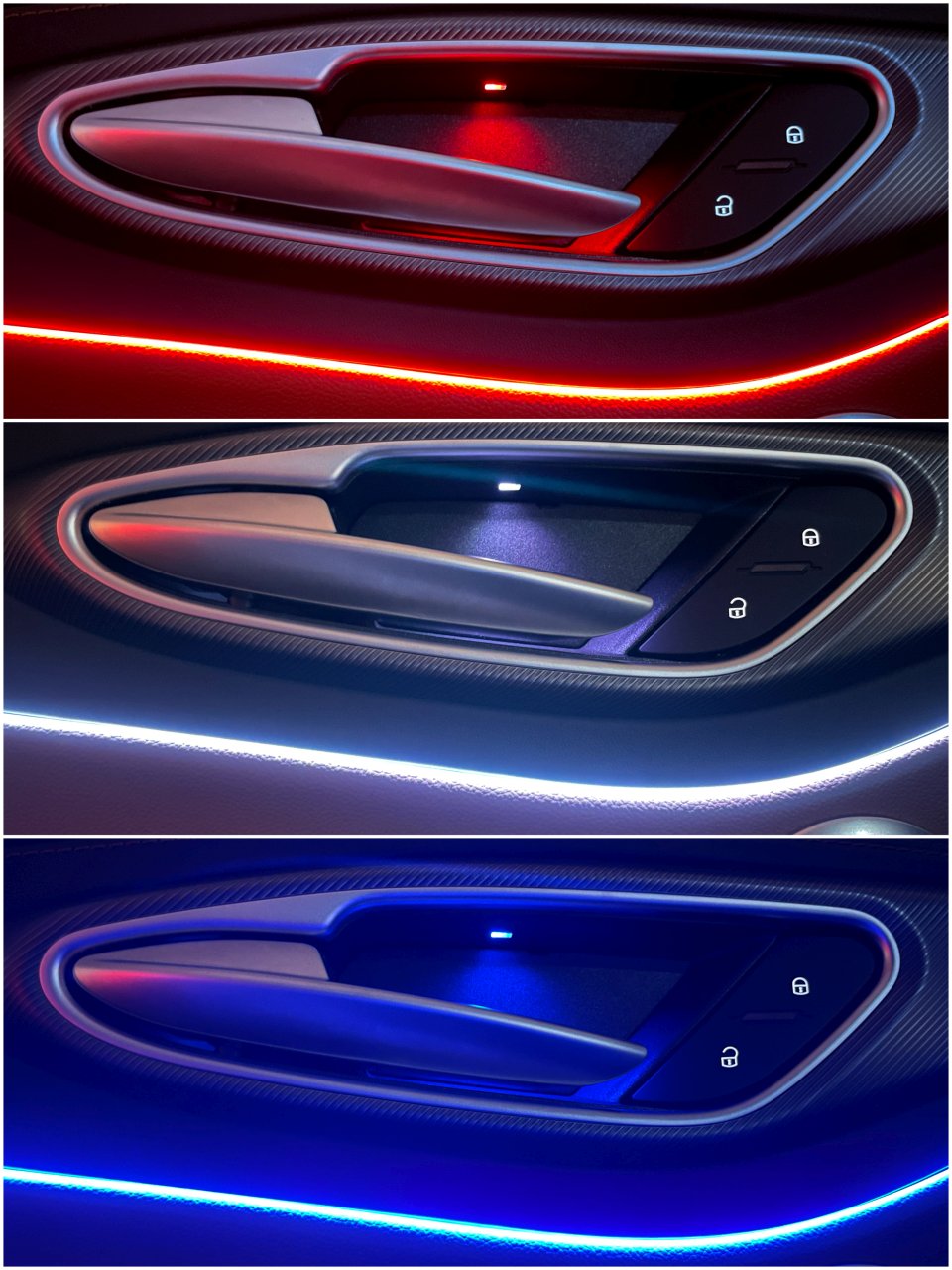

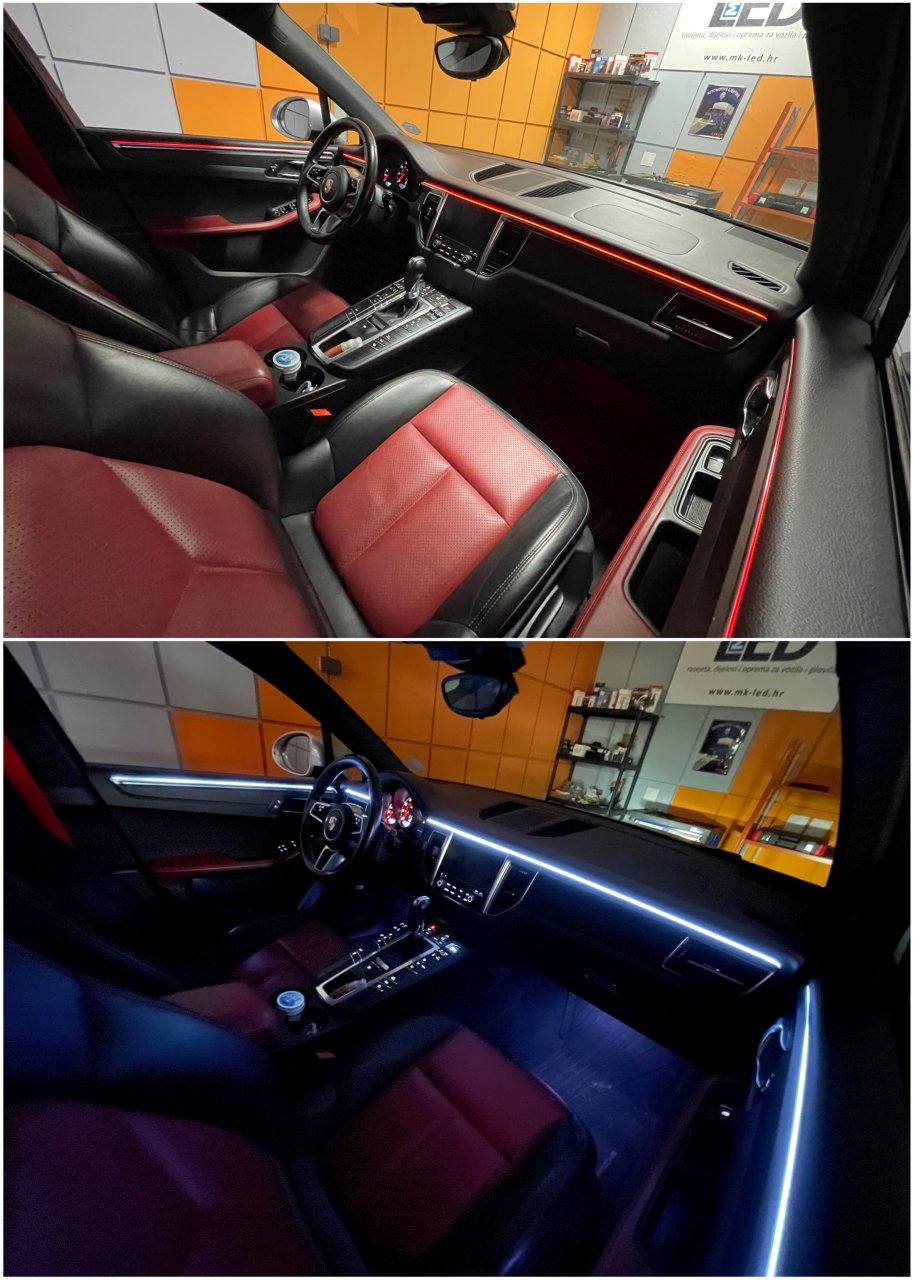

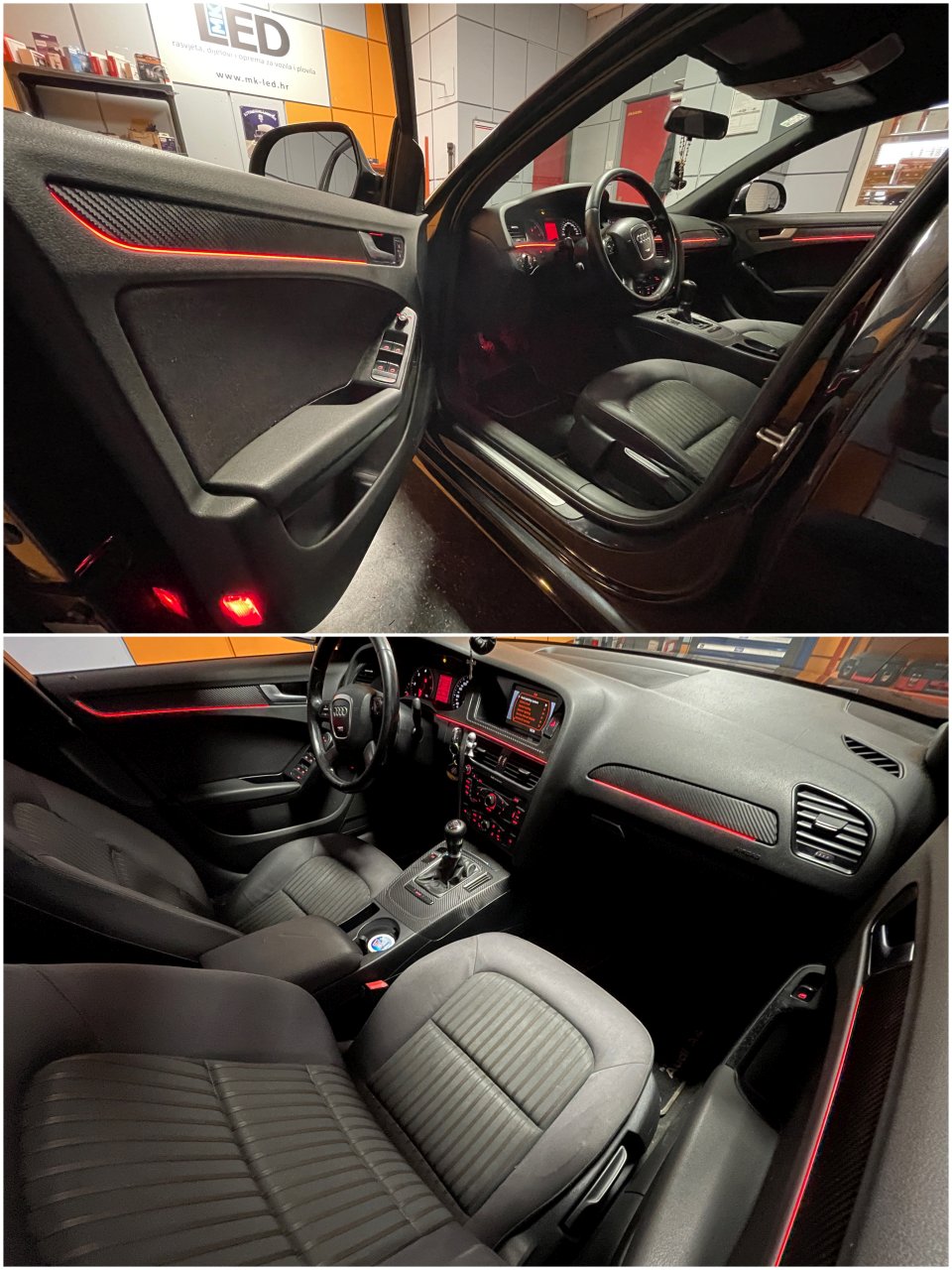

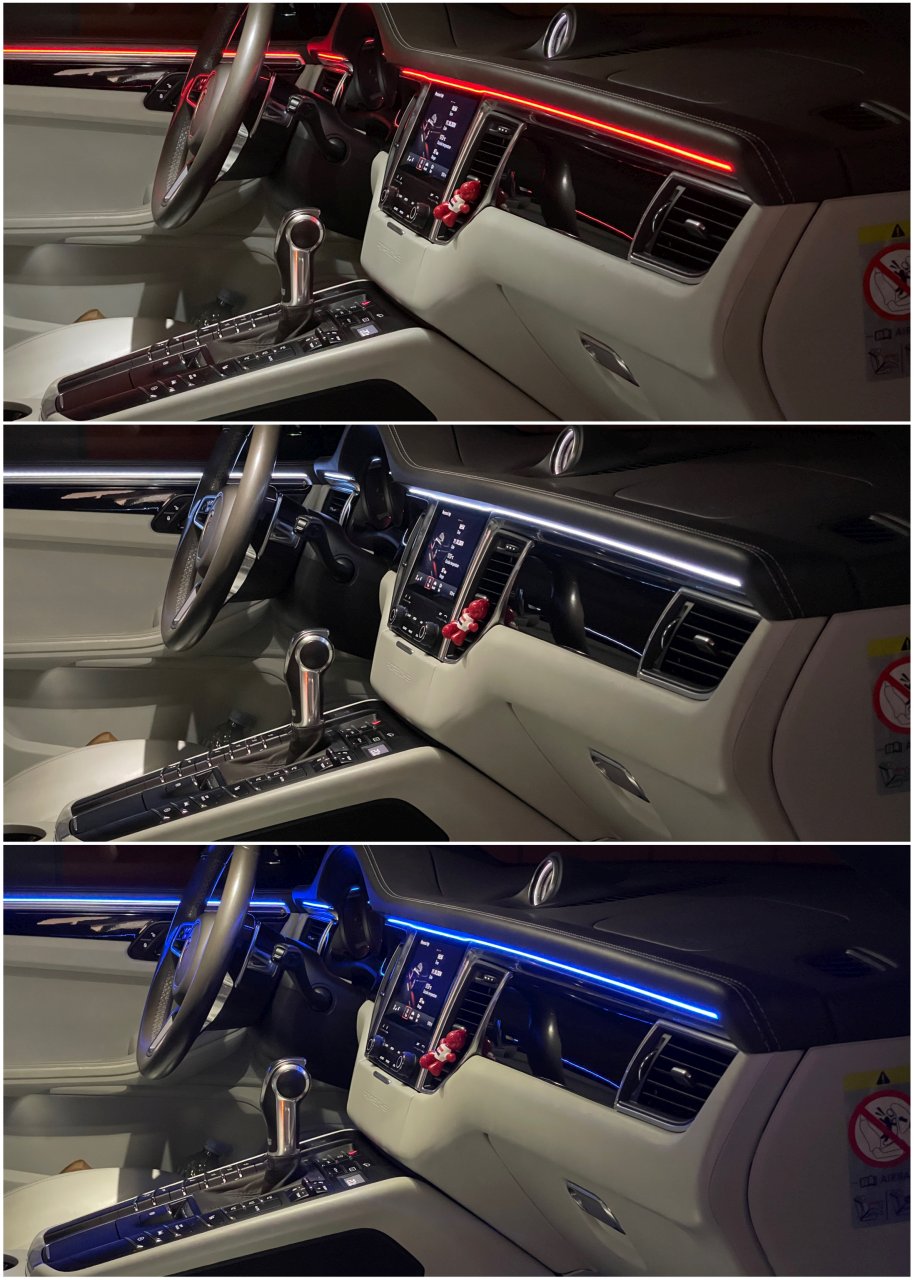

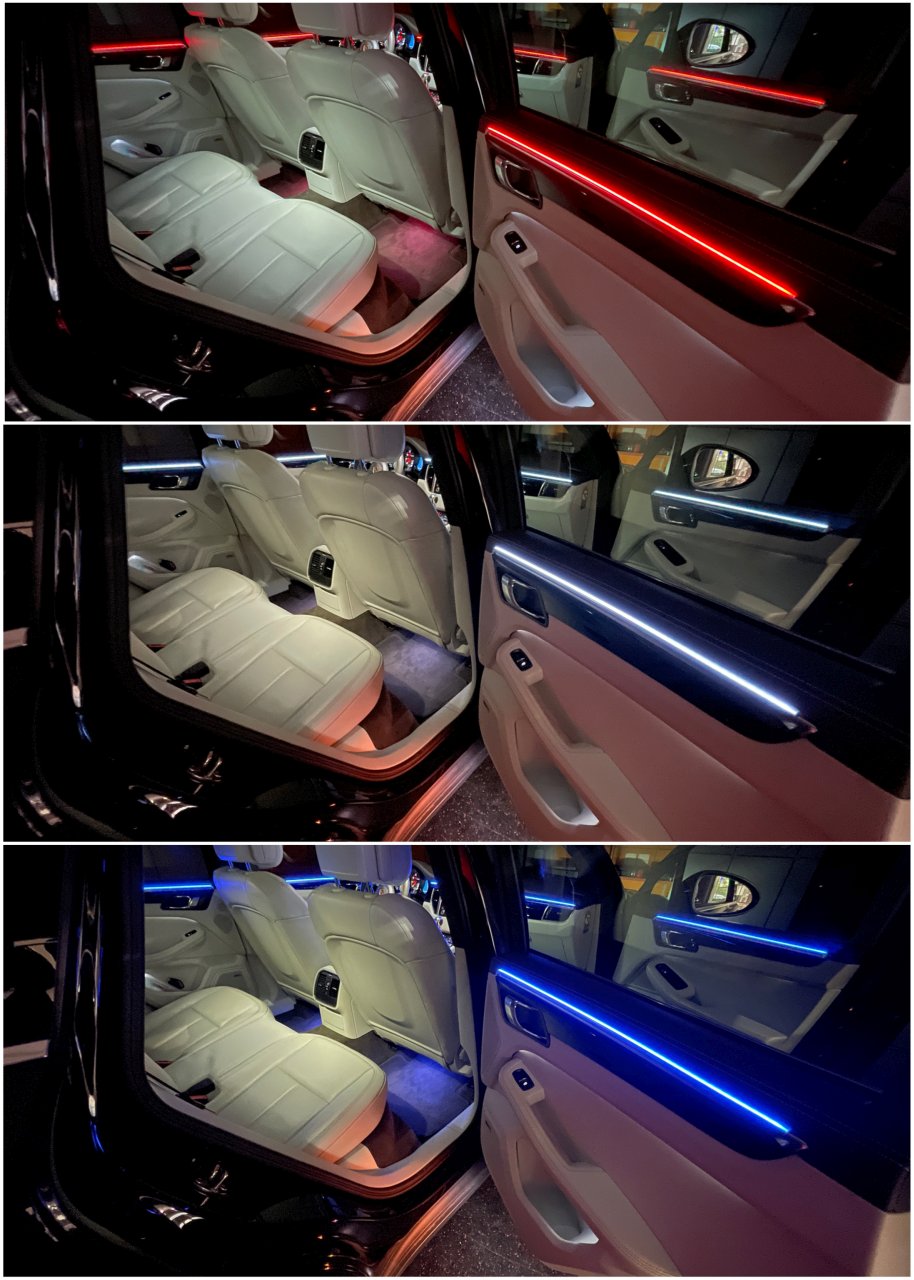

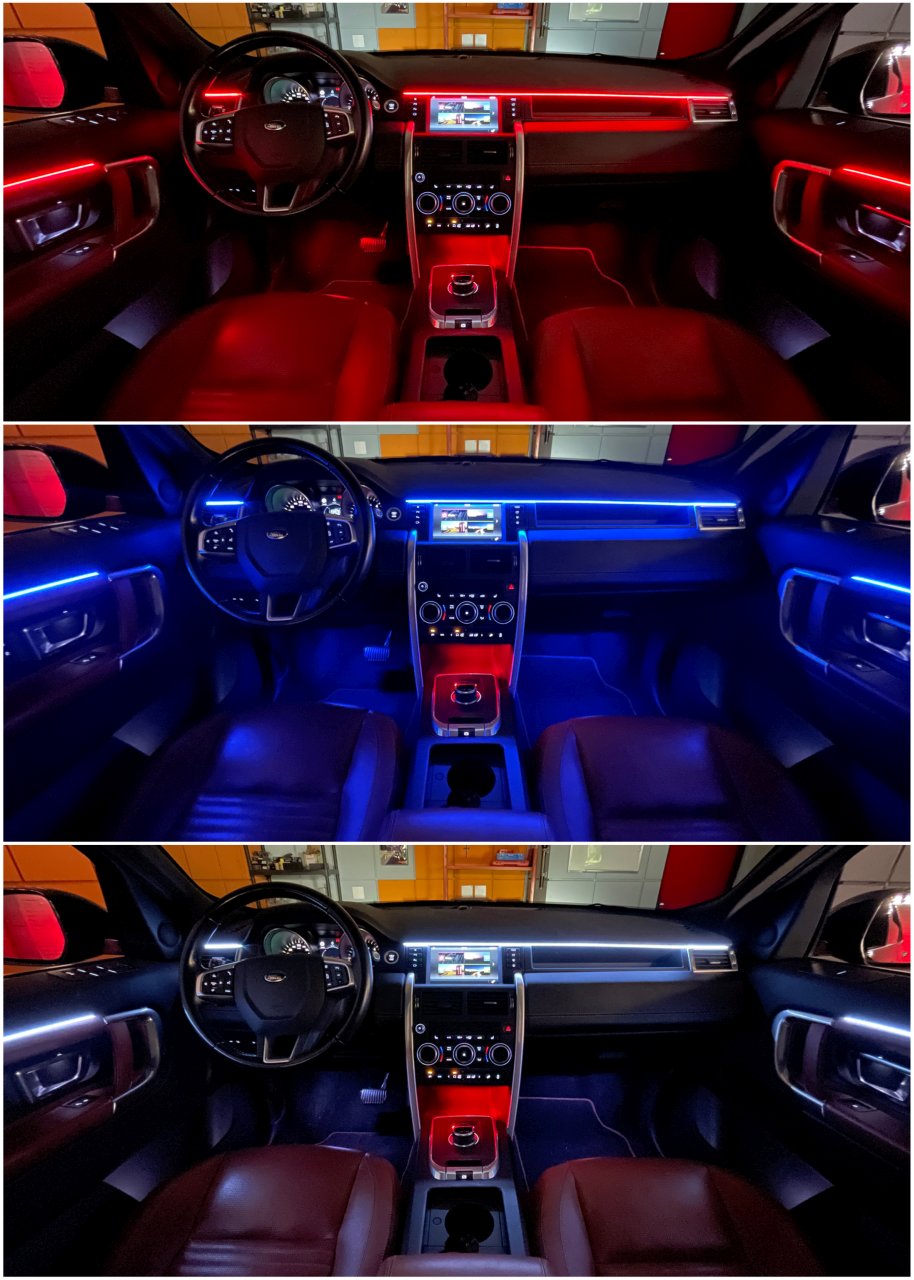

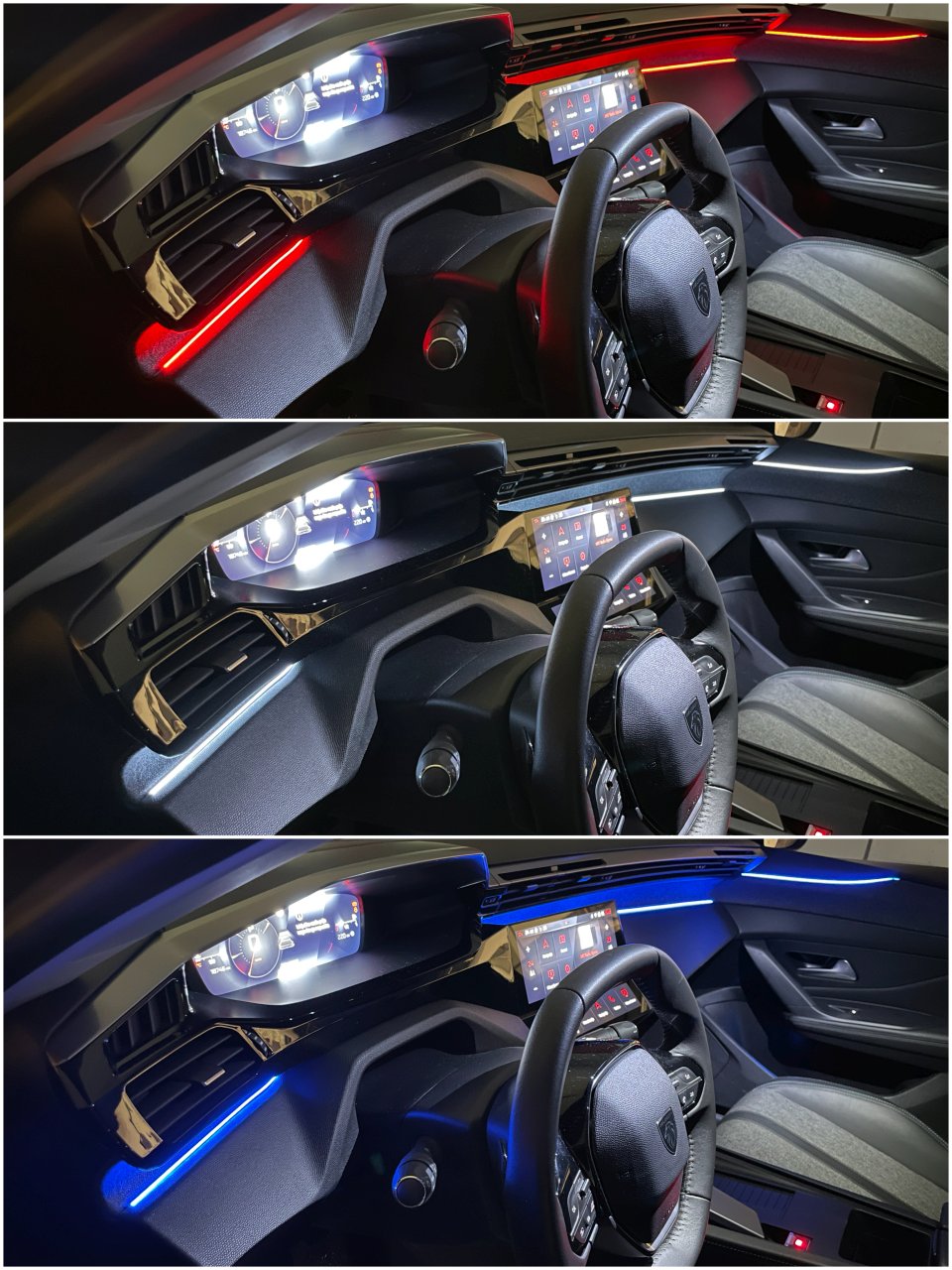

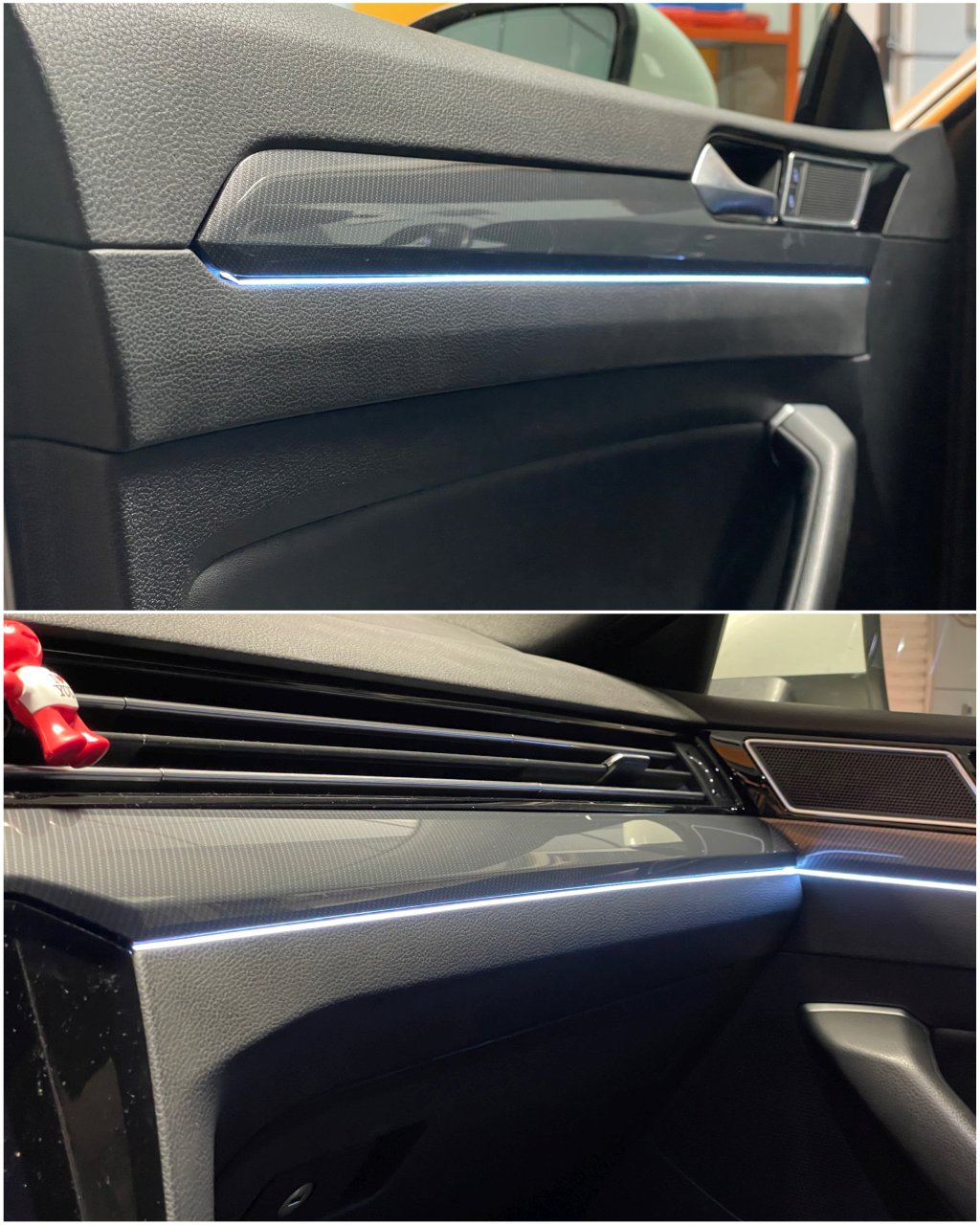

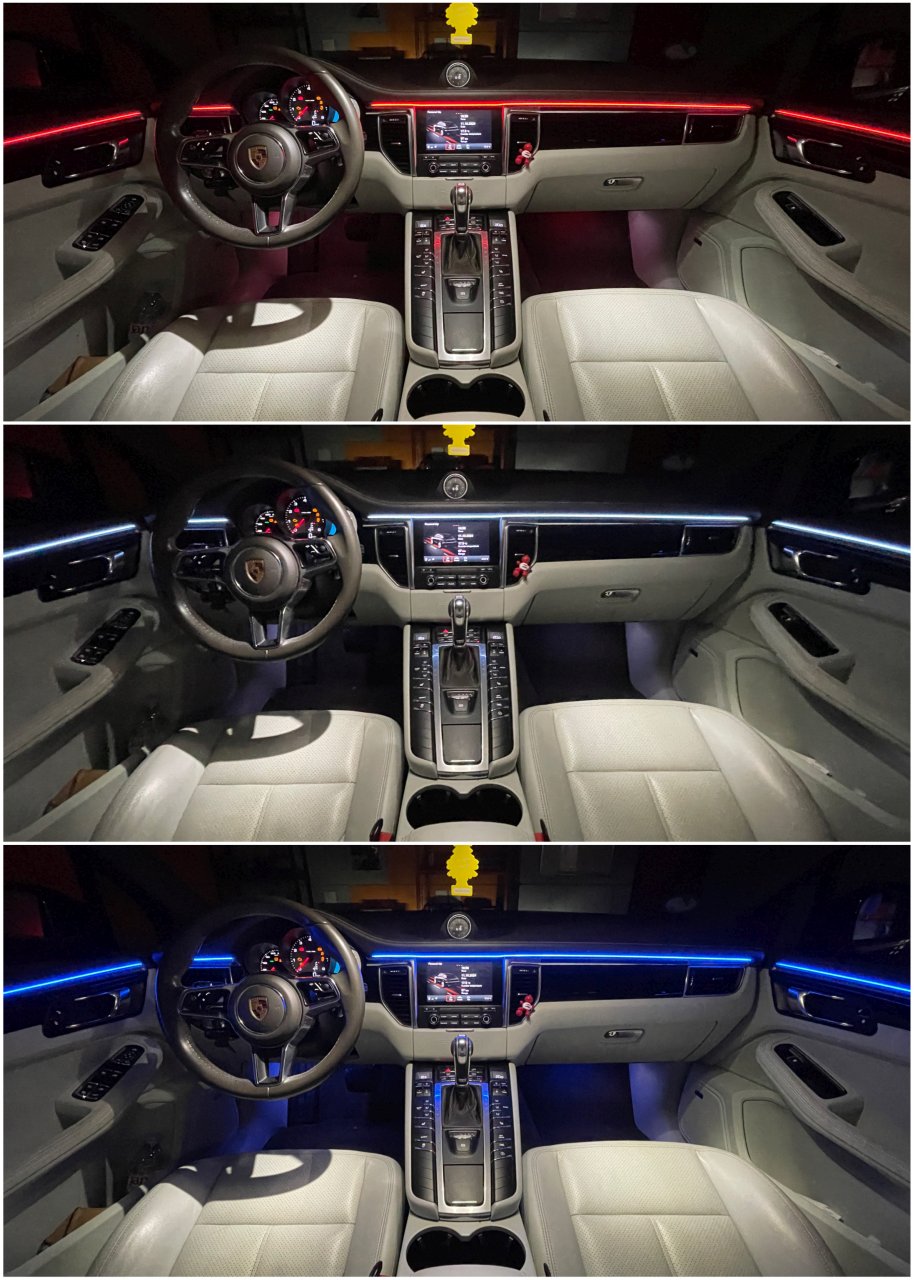

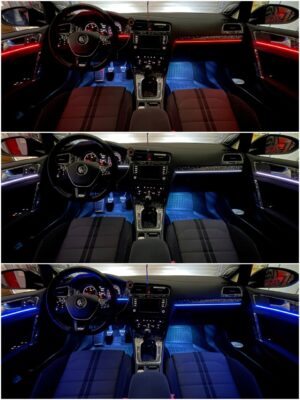

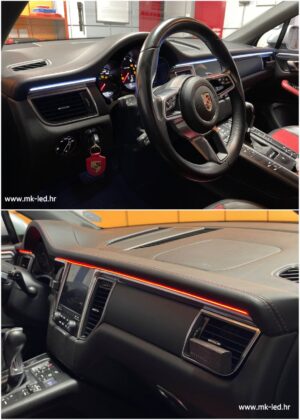

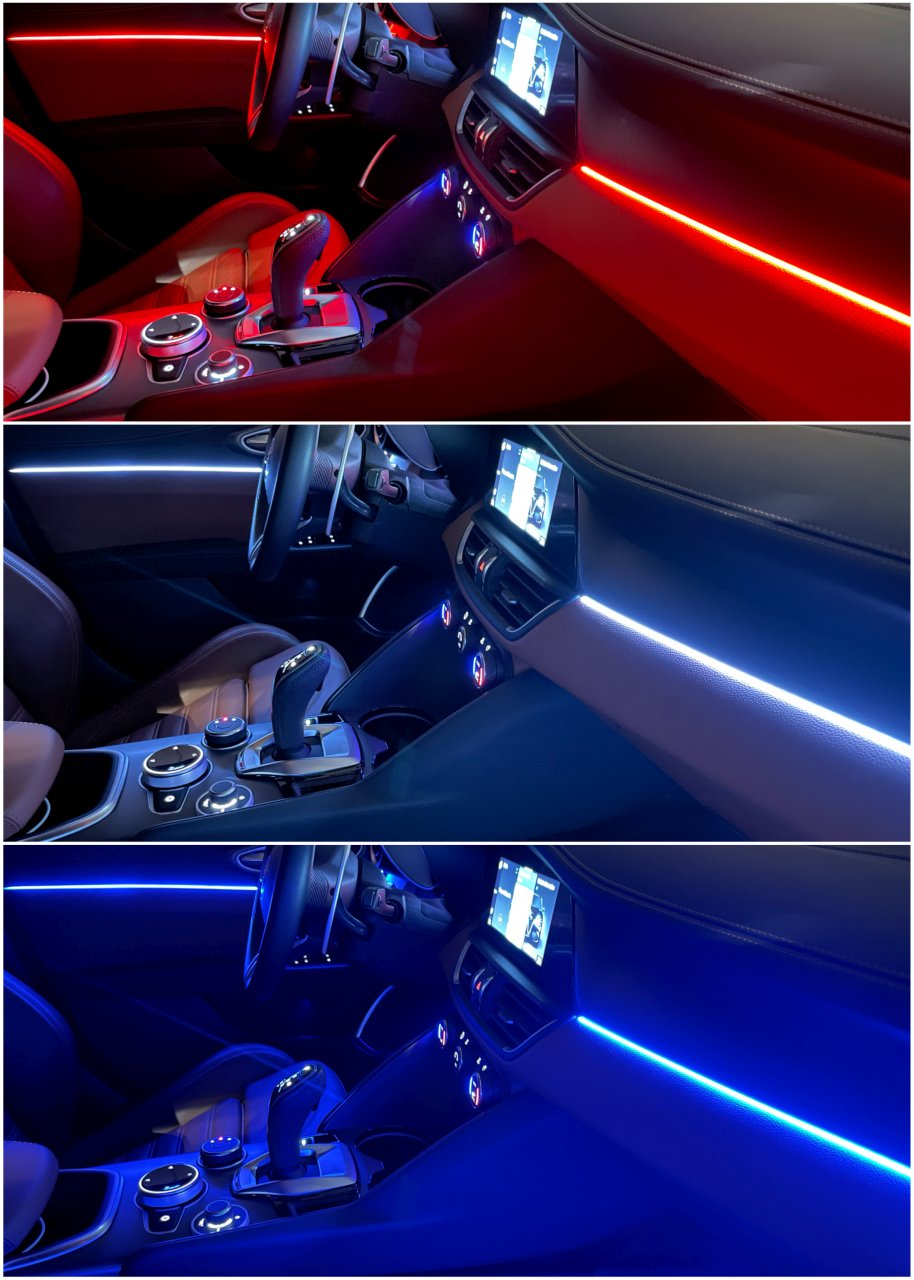

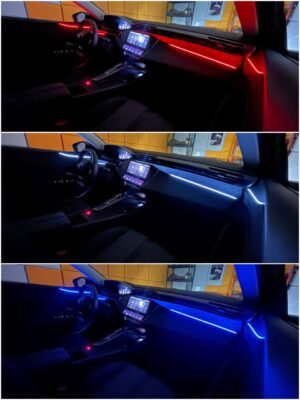

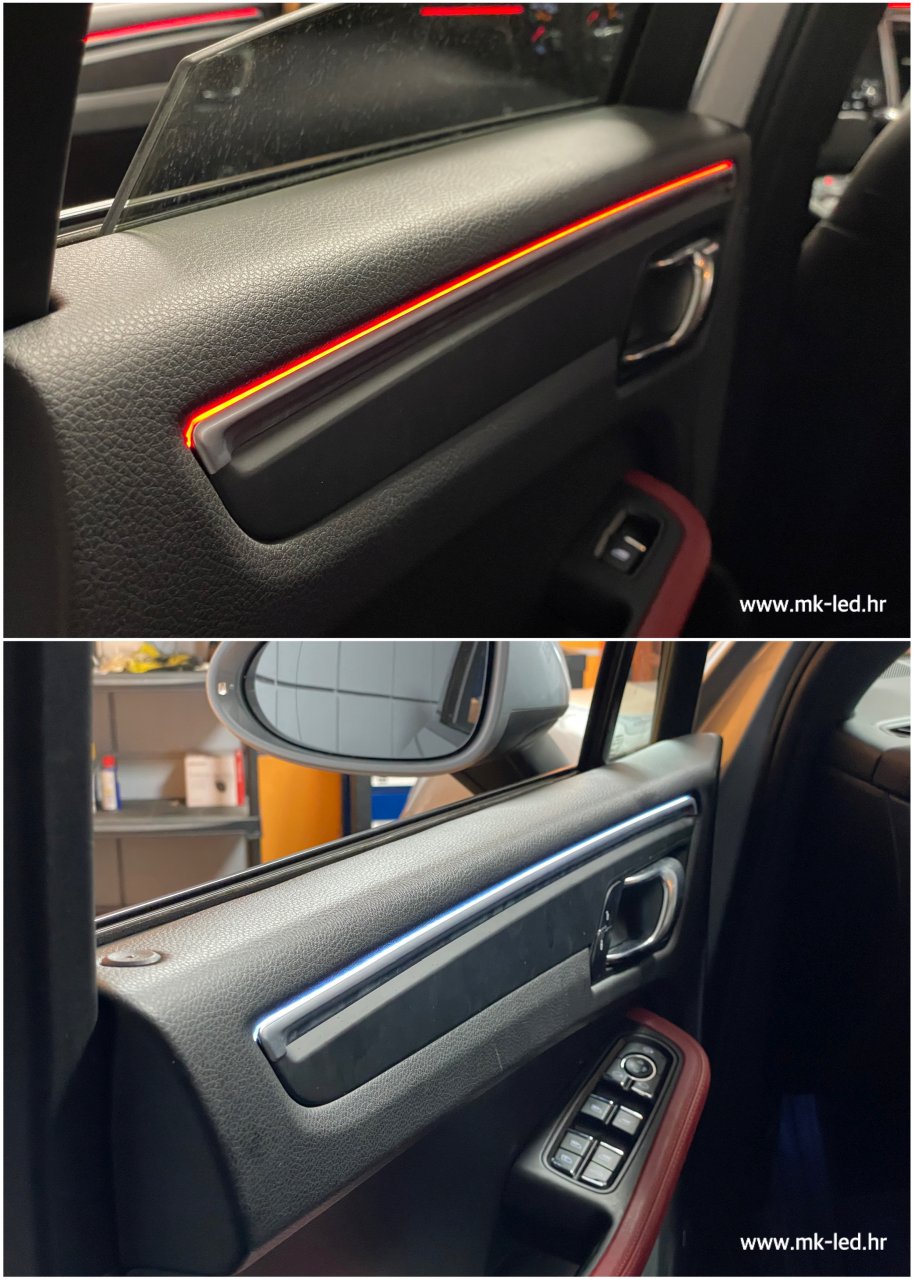

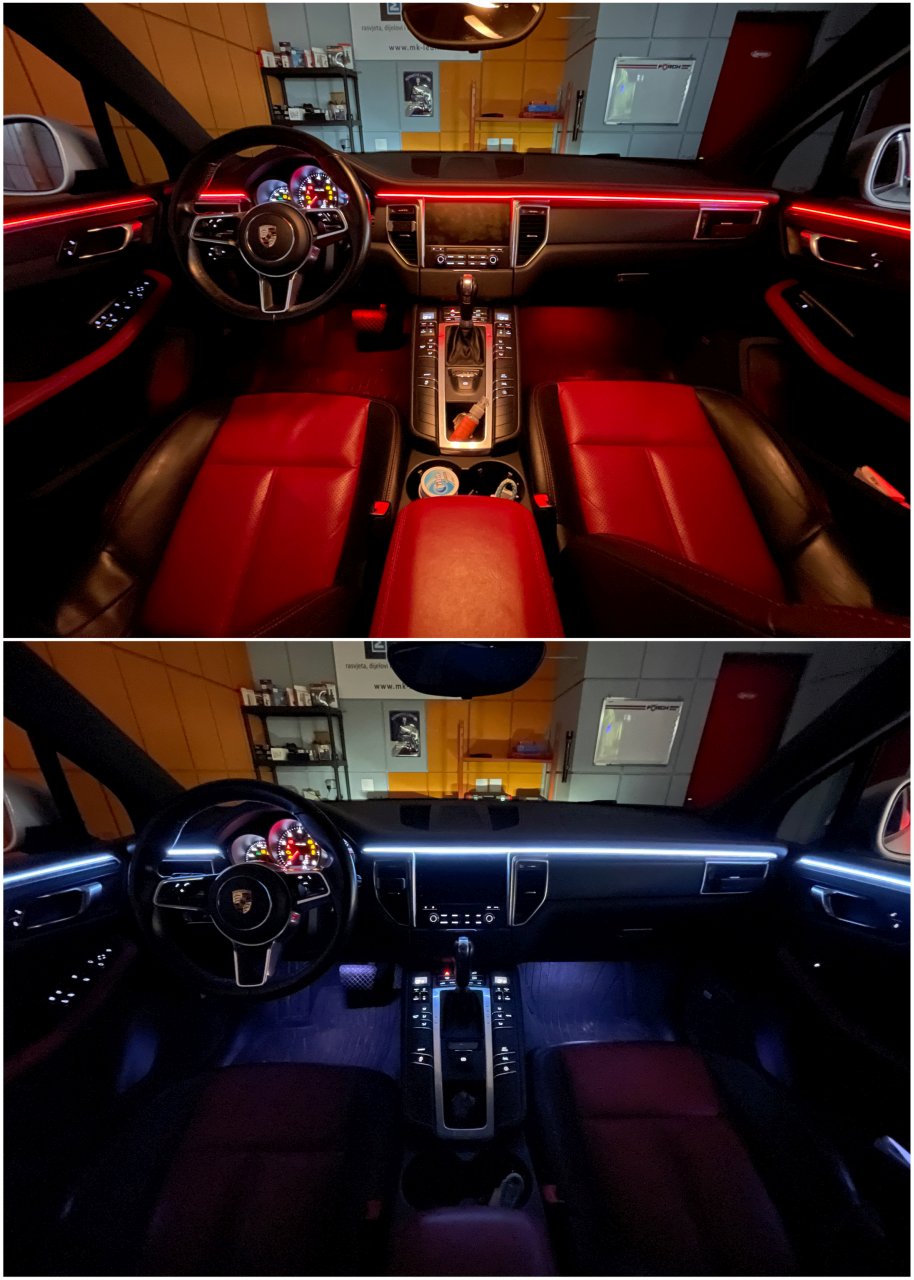

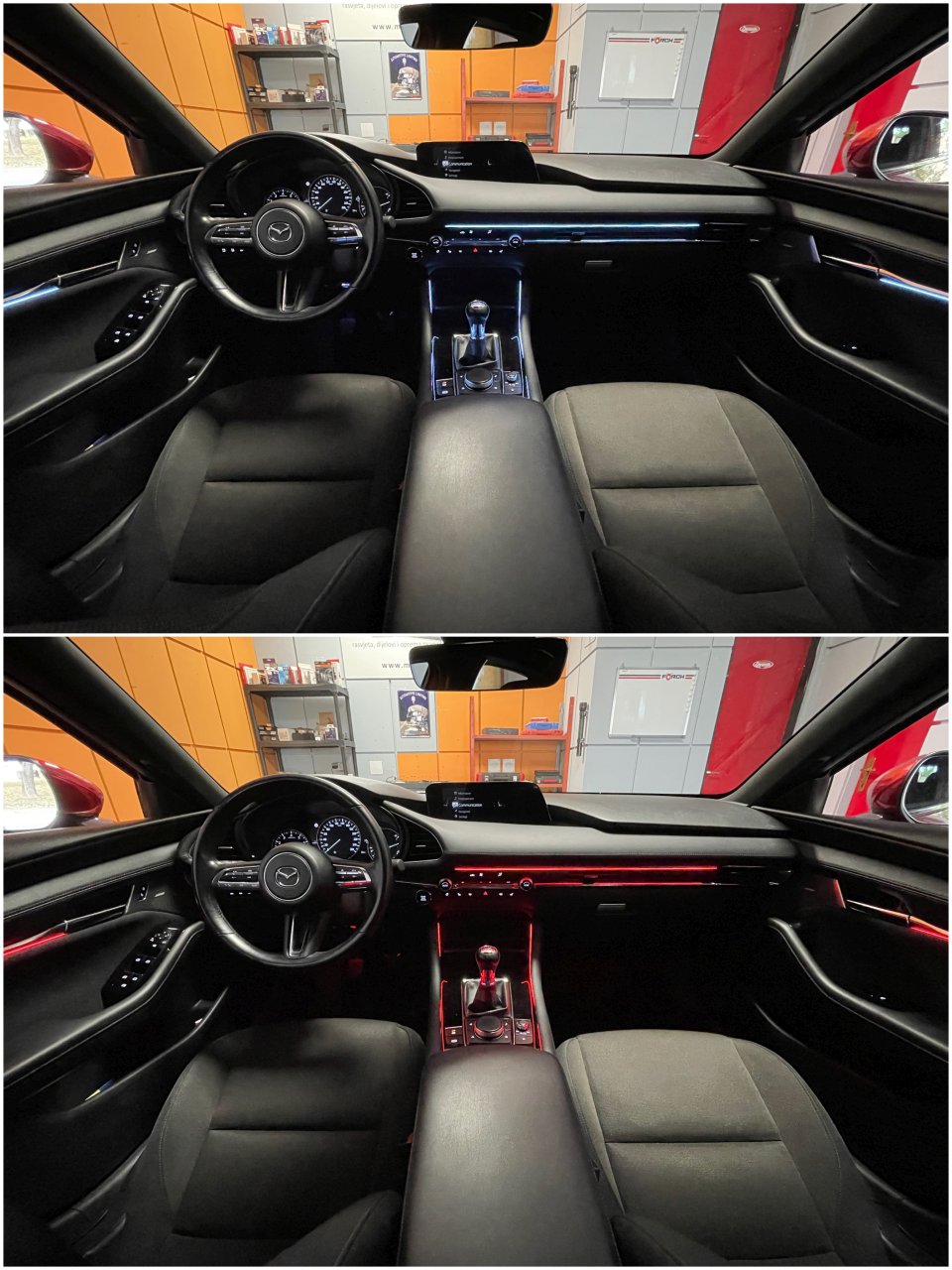

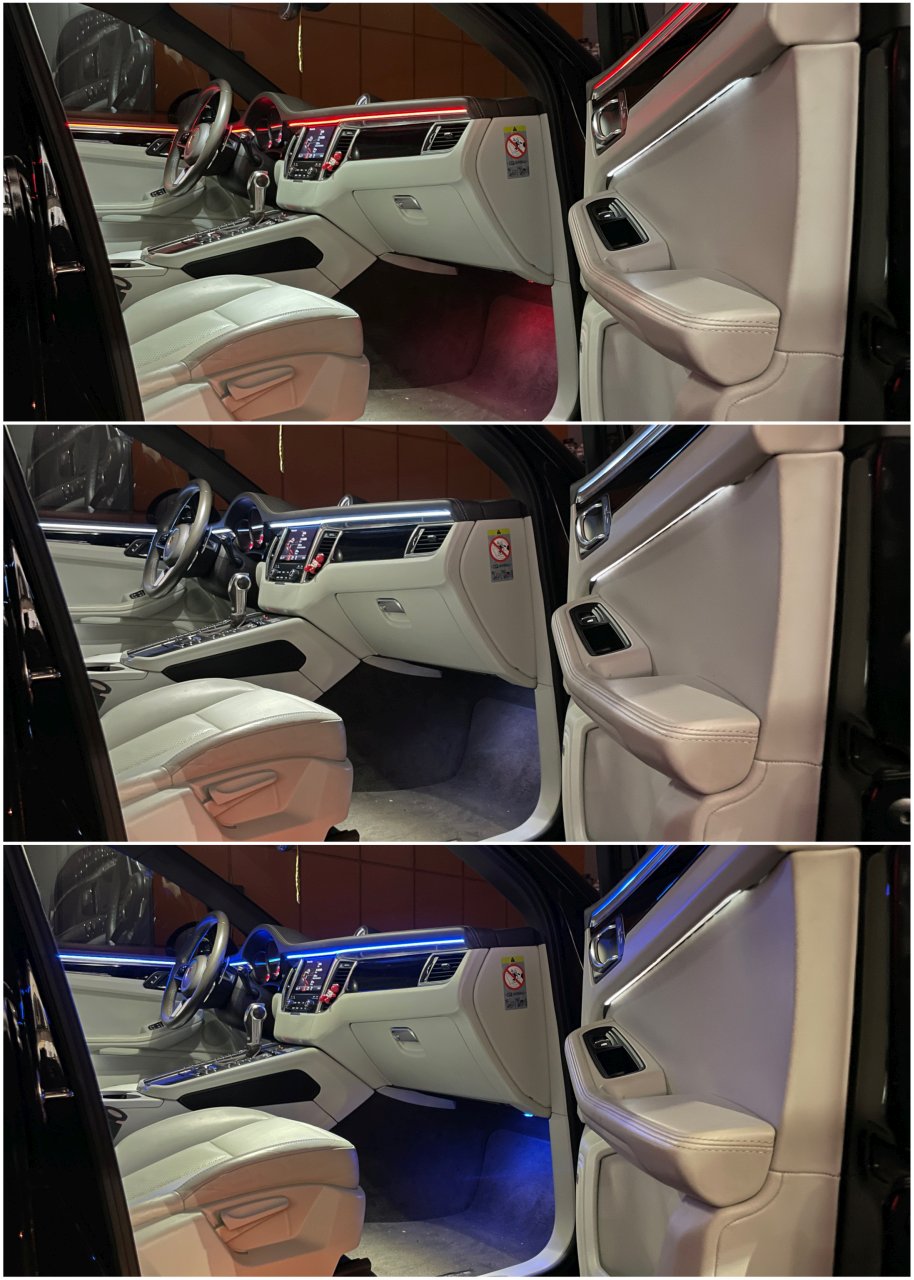

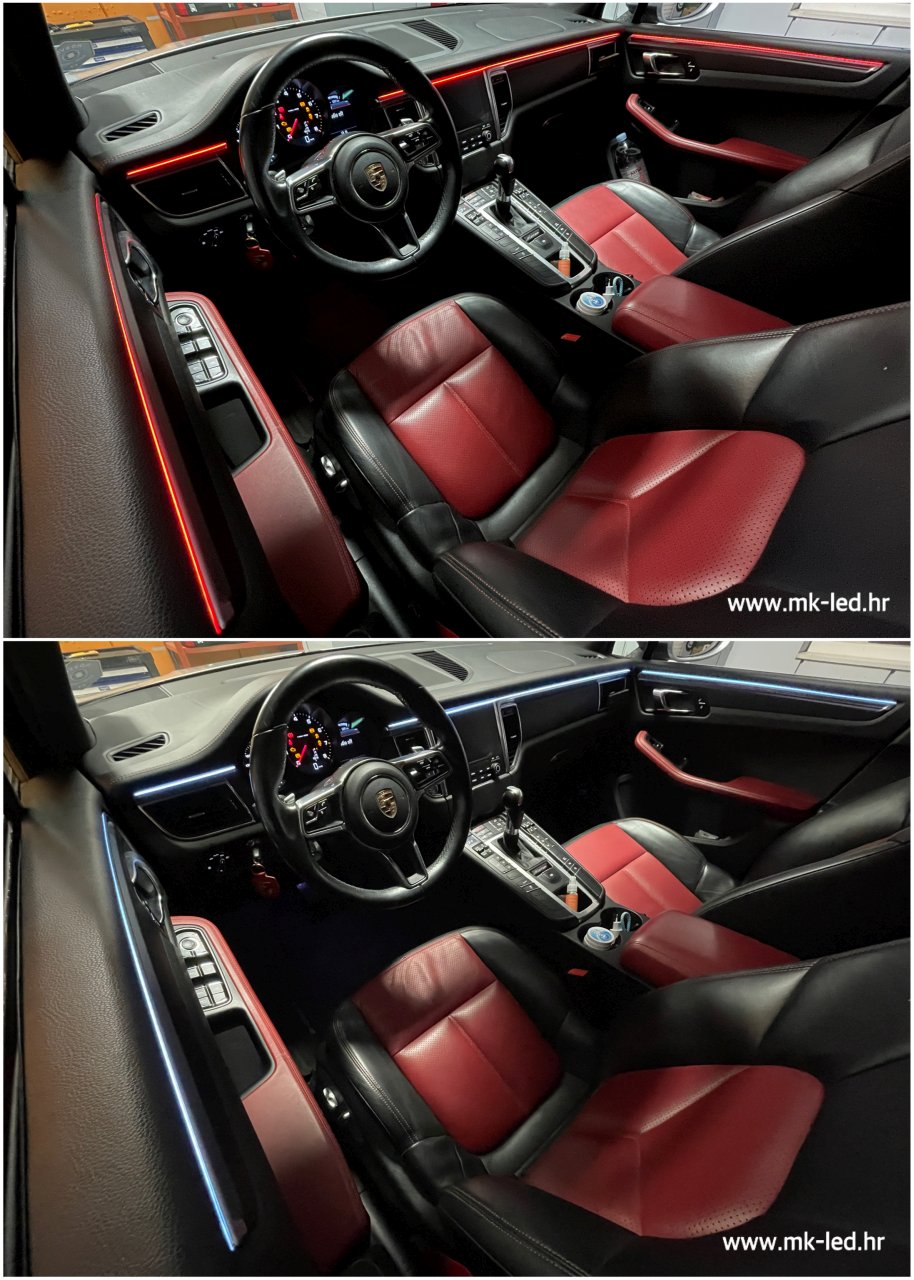

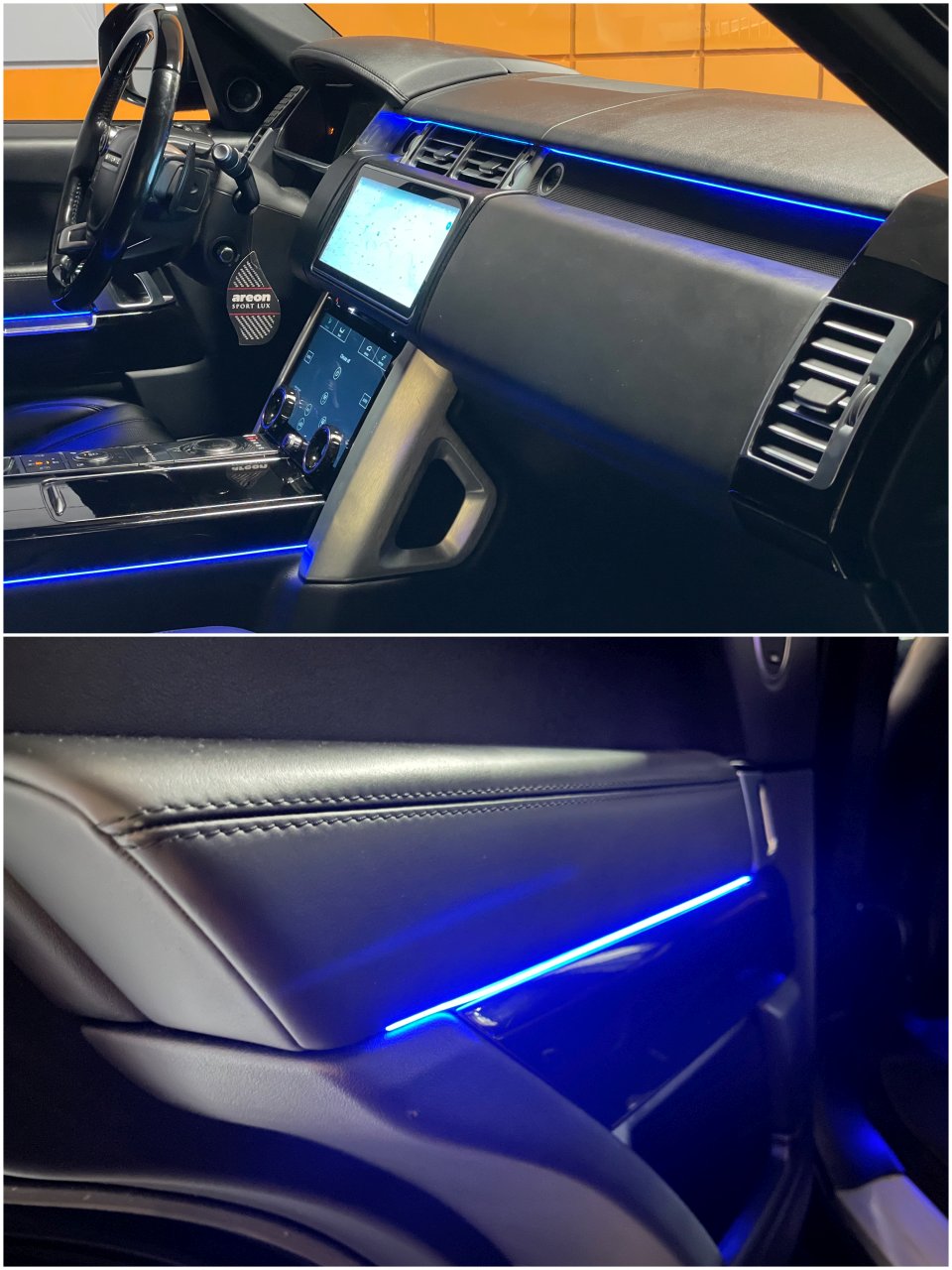

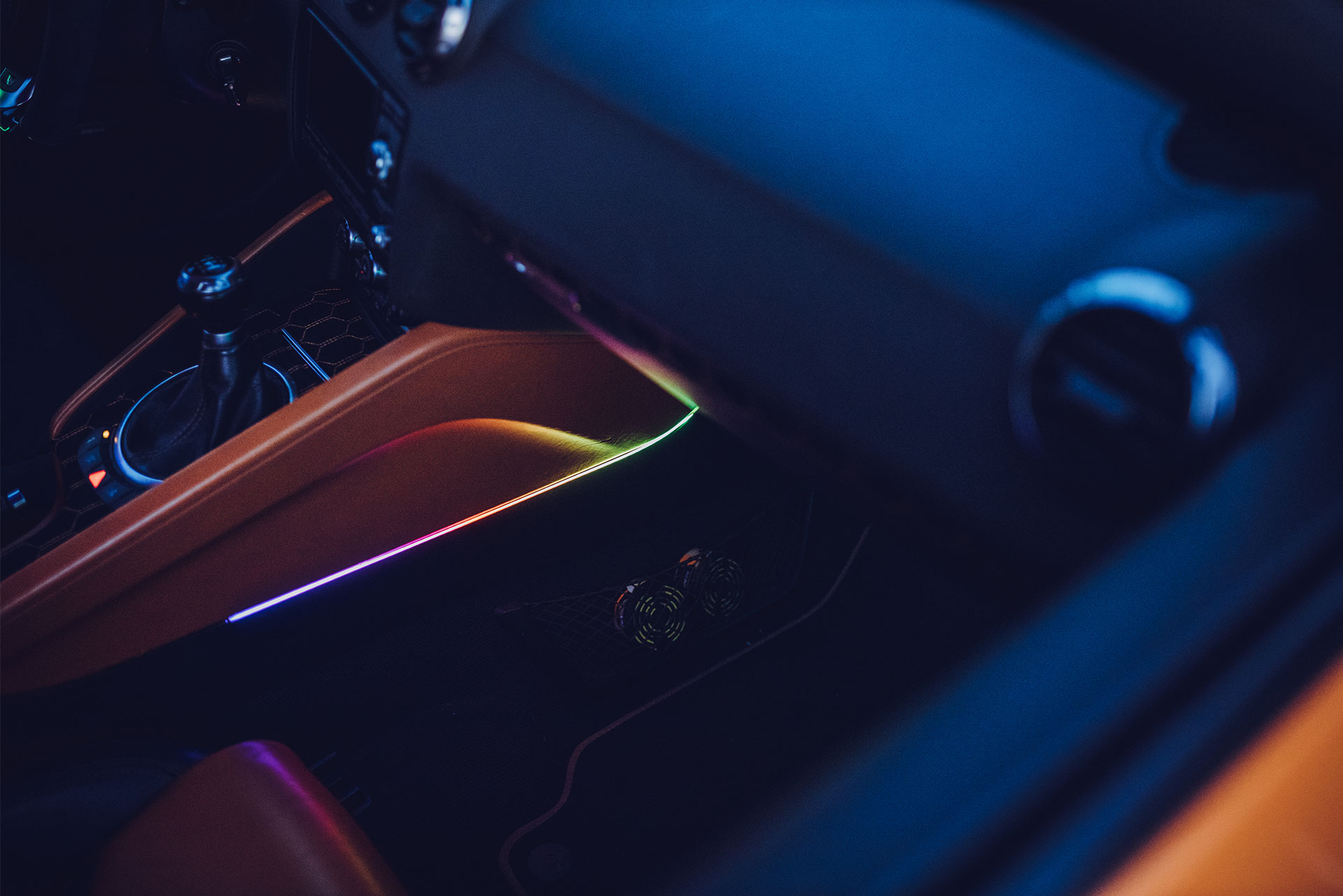

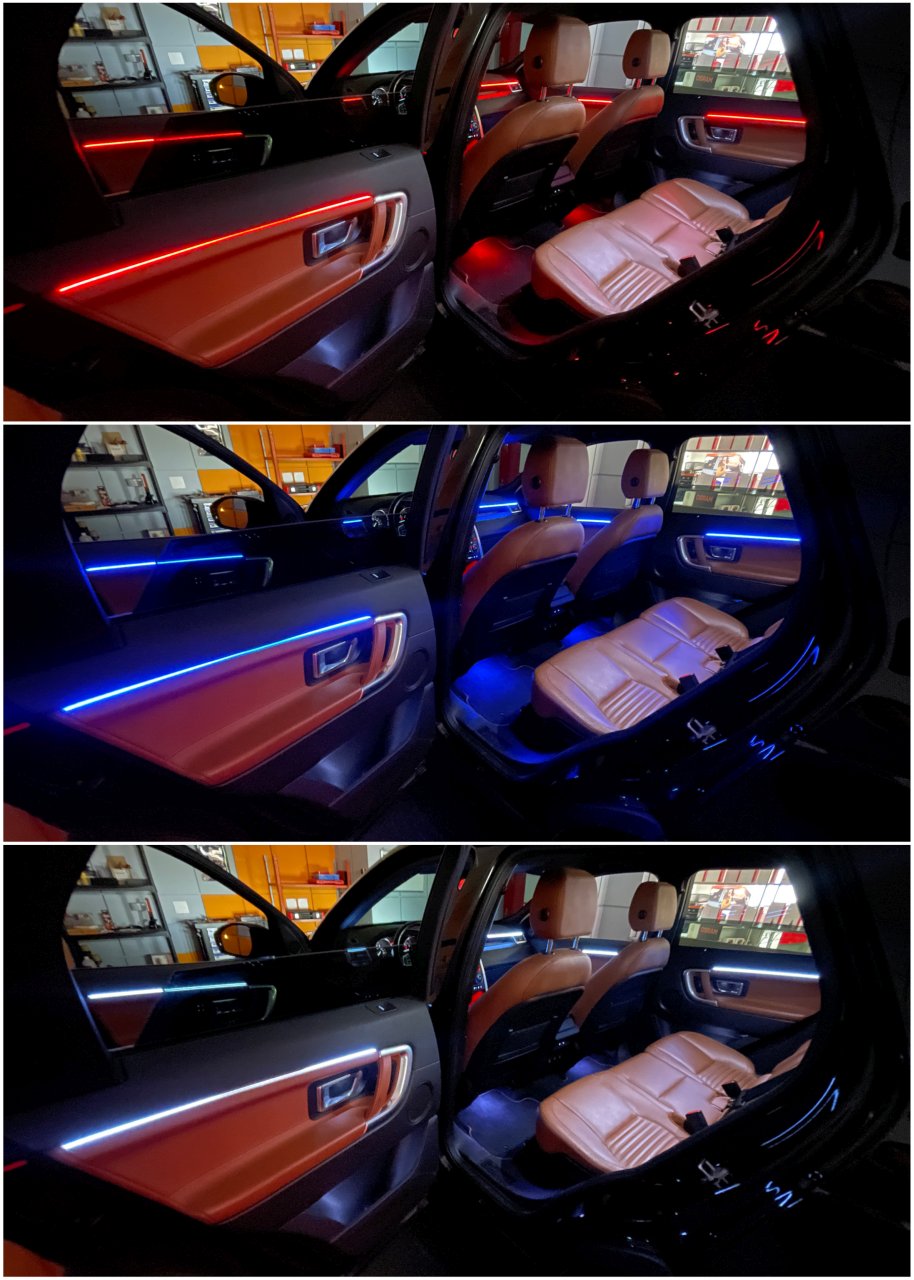

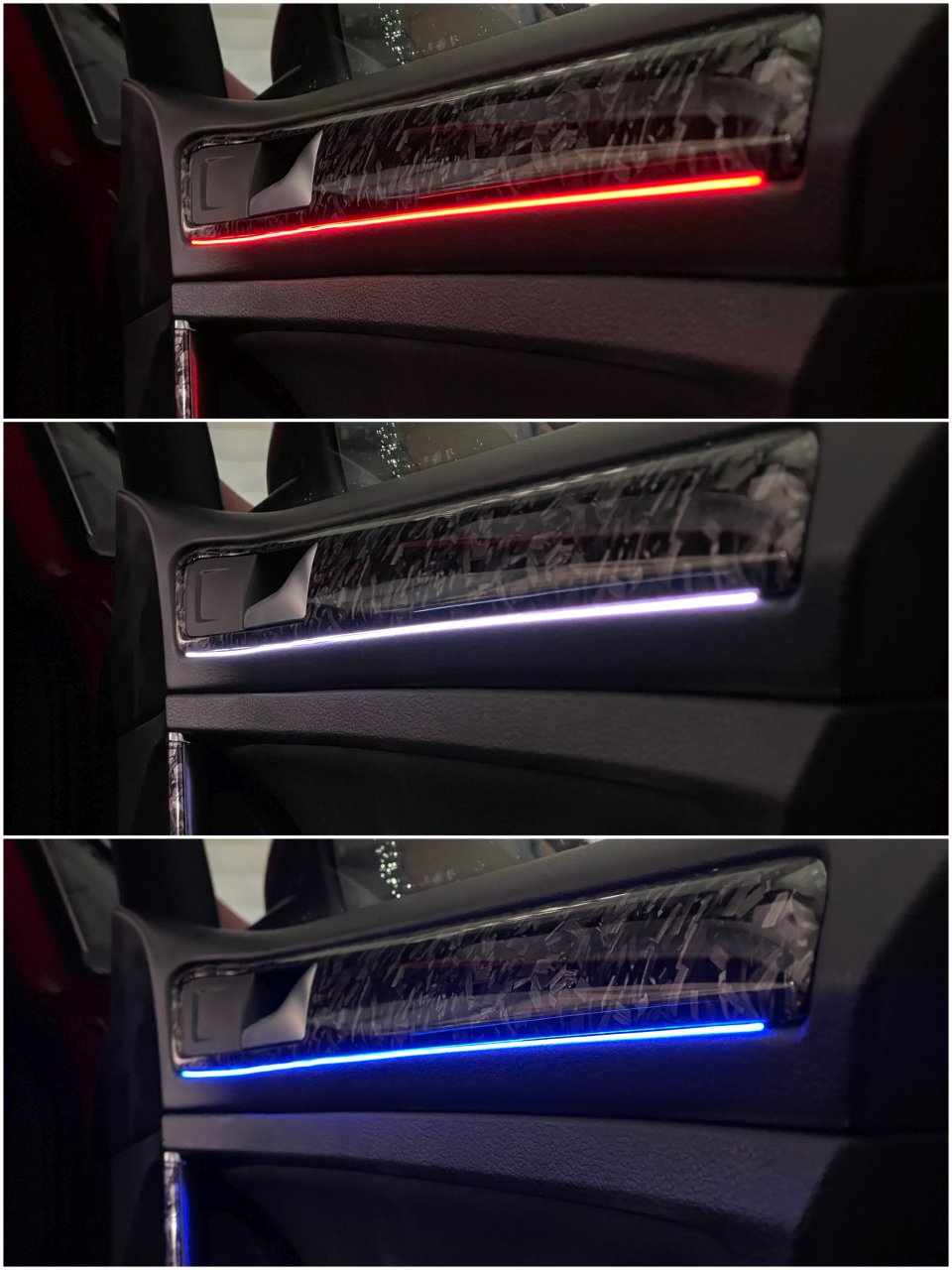

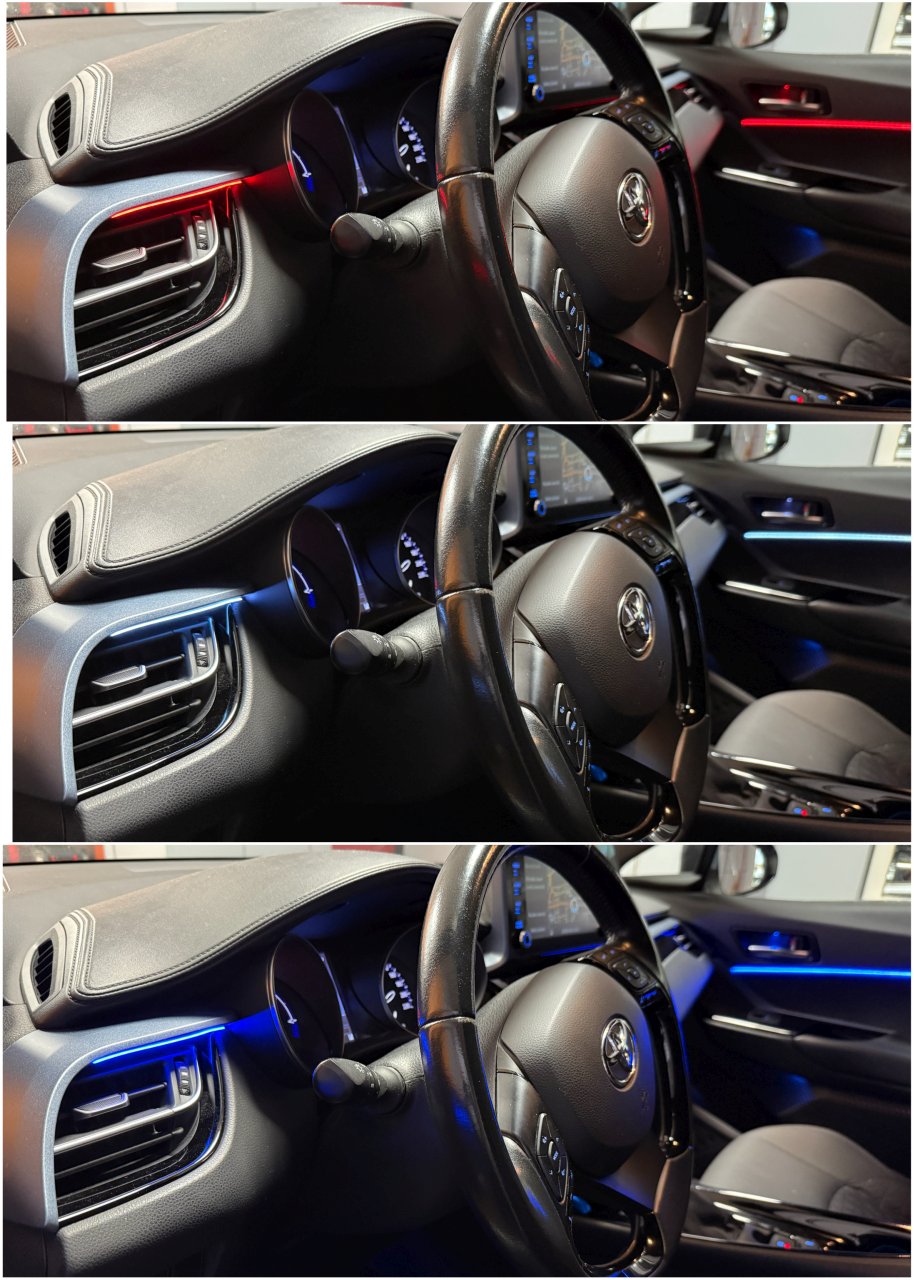

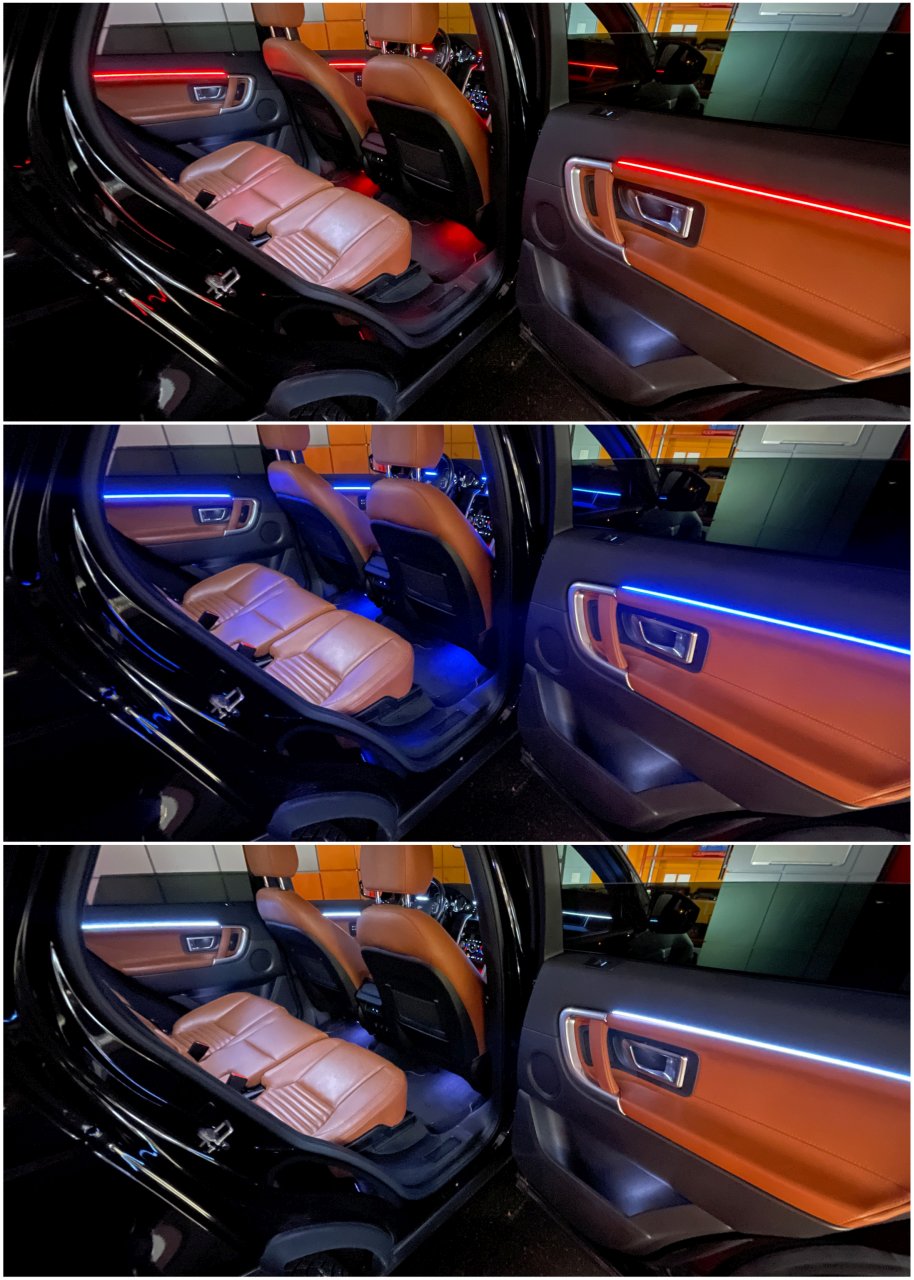

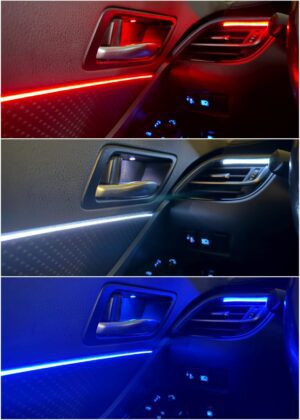

We present to you our latest development in ambient lighting – our ambitrim® Digital RGB RGBIC LED. This new ambient lighting illuminates your interior with absolute silence, without any loss of brightness, and offers numerous modes to set the perfect ambiance! Whether on the dashboard, in the doors, or other locations, the possibilities are endless, allowing you to customize your vehicle to your liking. Light bars for doors, dashboard, lighting units for footwells, side compartments, and door handles, all are achievable with the ambitrim® Digital RGB RGBIC LED ambient lighting. No wish goes unfulfilled.

Features:

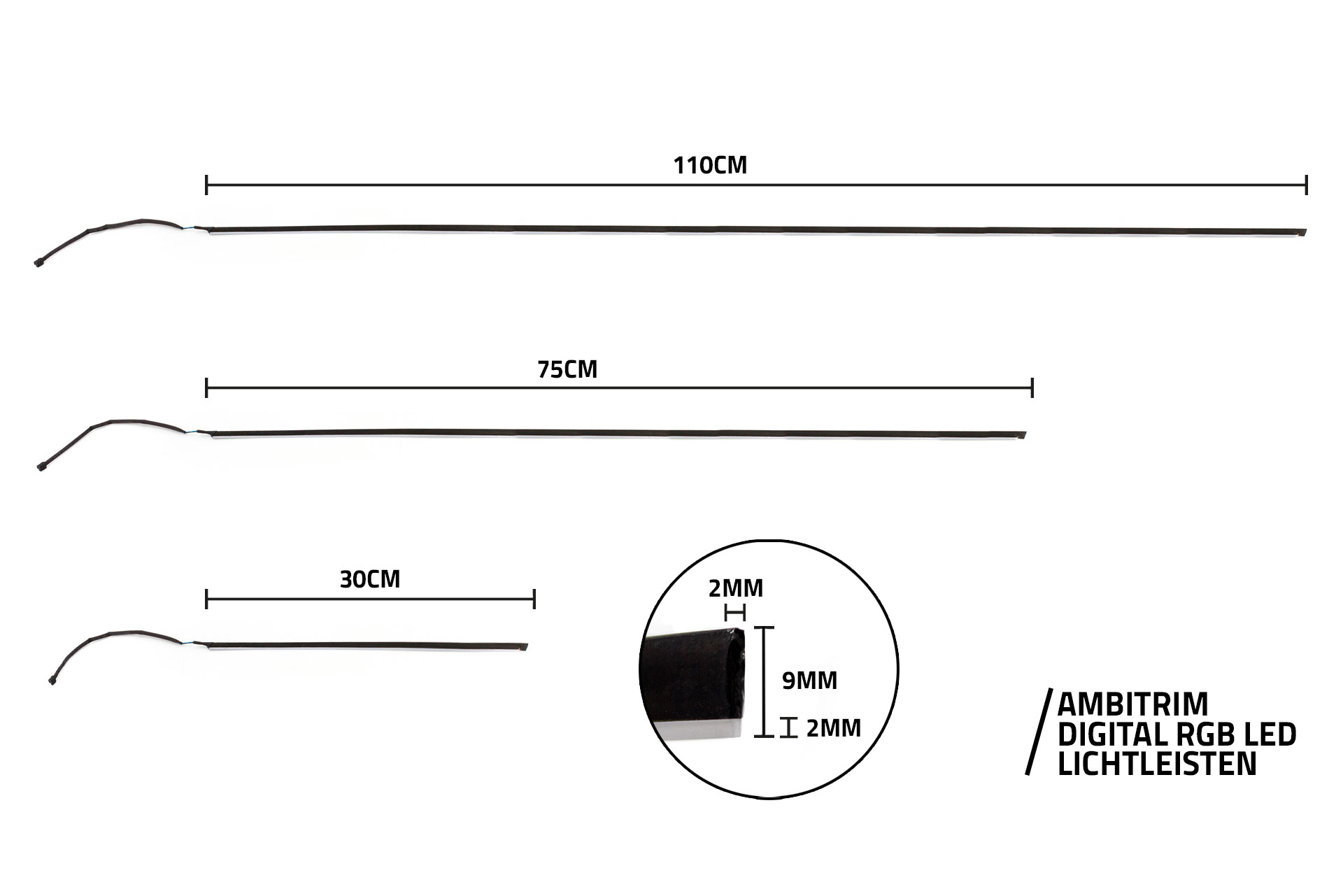

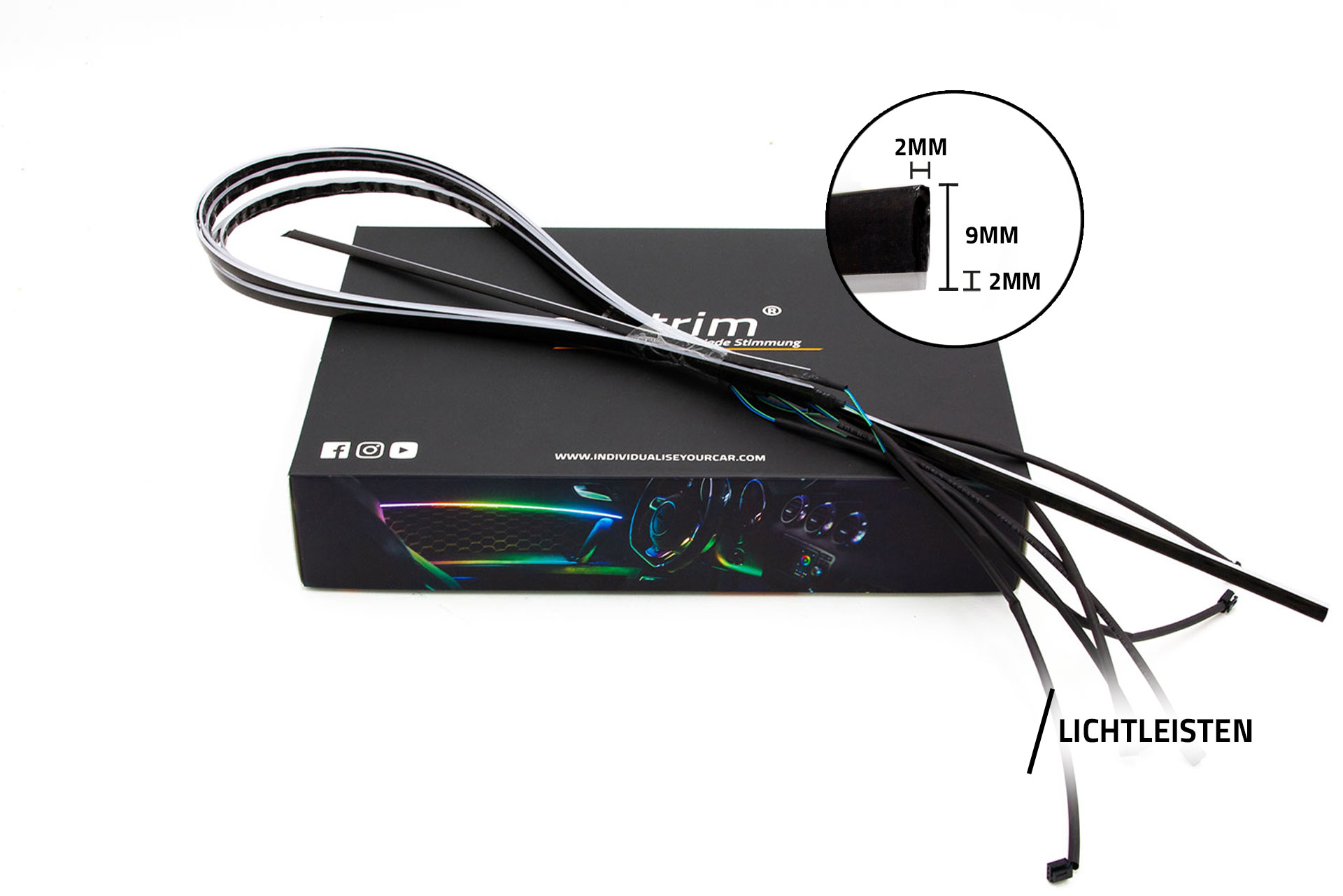

• Light bars can be shortened
• Blends discreetly into the interior
• “Welcome program” on every start
• Completely silent in operation

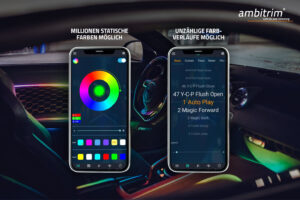

• Color change function via app control
• Digital LED = each LED individually controlled
• Countless color transitions possible
• Millions of static colors available
• Easily reversible at any time!
• Adds an individual touch to your vehicle
• Approved as interior lighting within the scope of road traffic regulations (StVO)
• 0807 LED chips

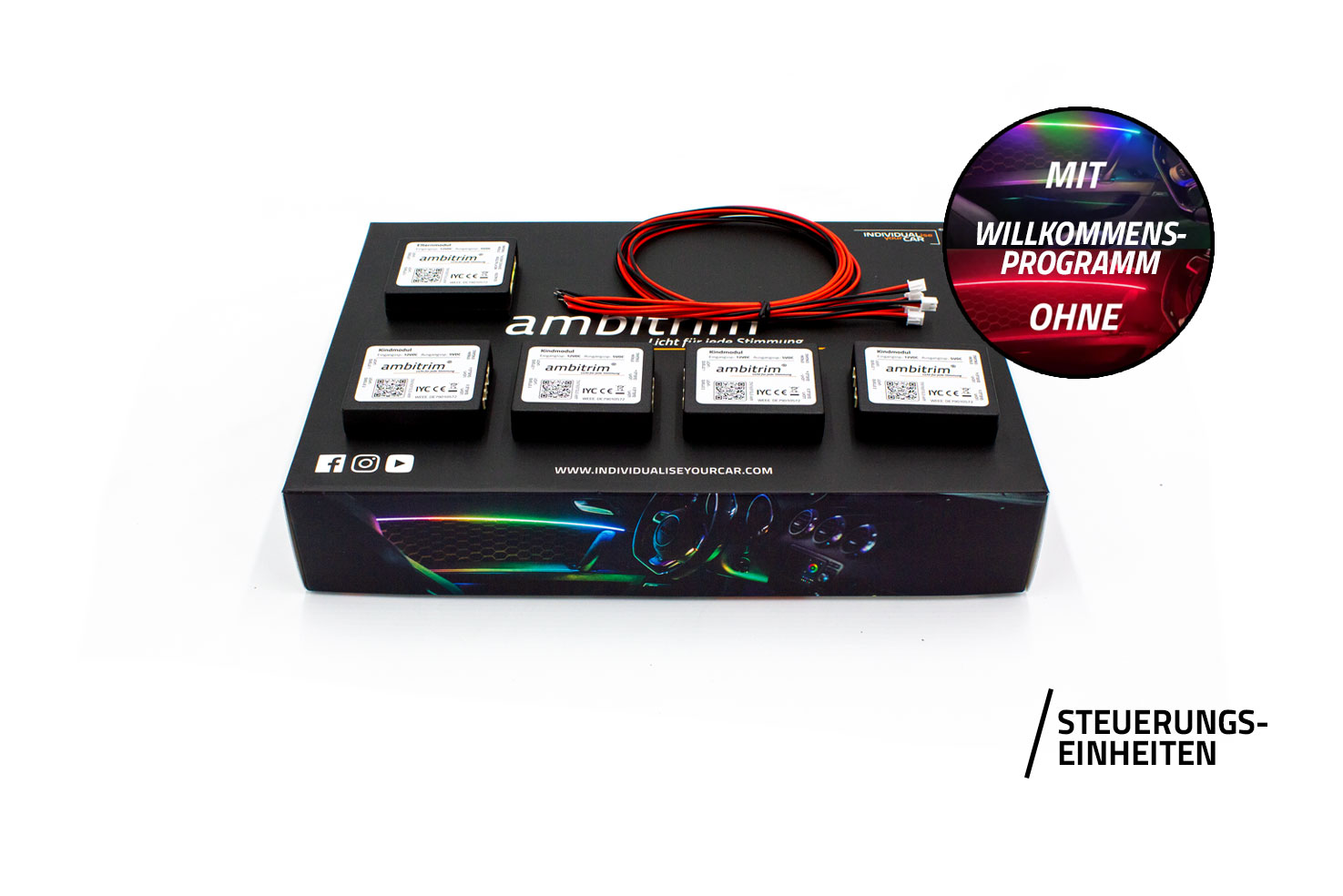

• Individual wireless control units including parent and child units
  • thereby no cable connection between them
  • Child units can be connected at the point of use, e.g., to the constant power supply (not to the PWM regulated board lighting)
  • Child units only respond once the parent unit is turned on (meaning you definitely need one parent unit per car).

Technical Data:

• Voltage: 12V DC
• Current consumption: up to 1A

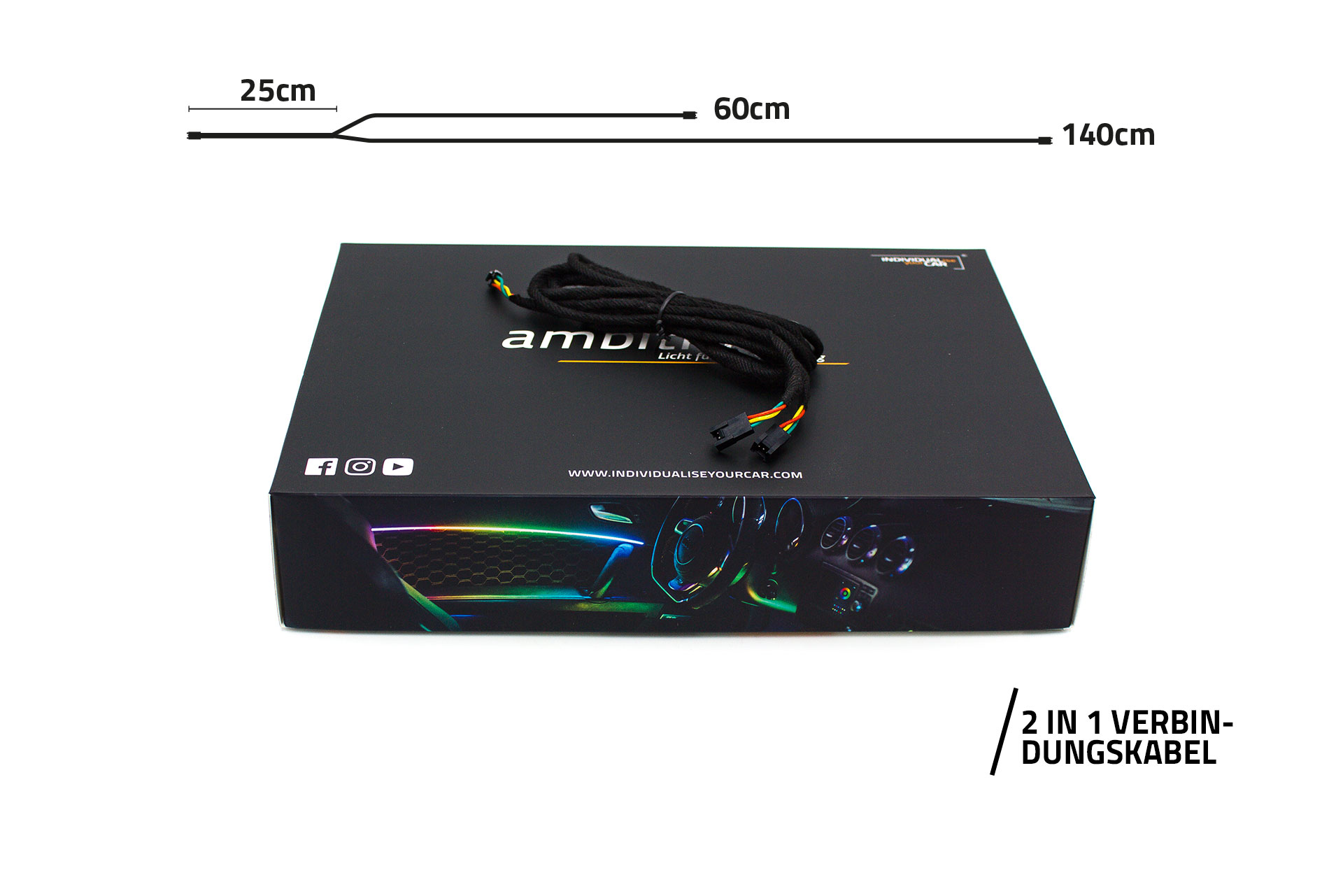

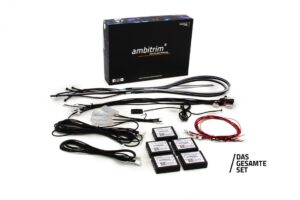

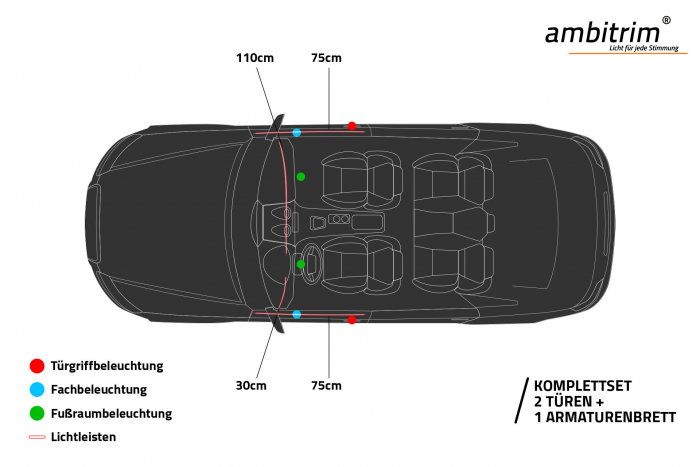

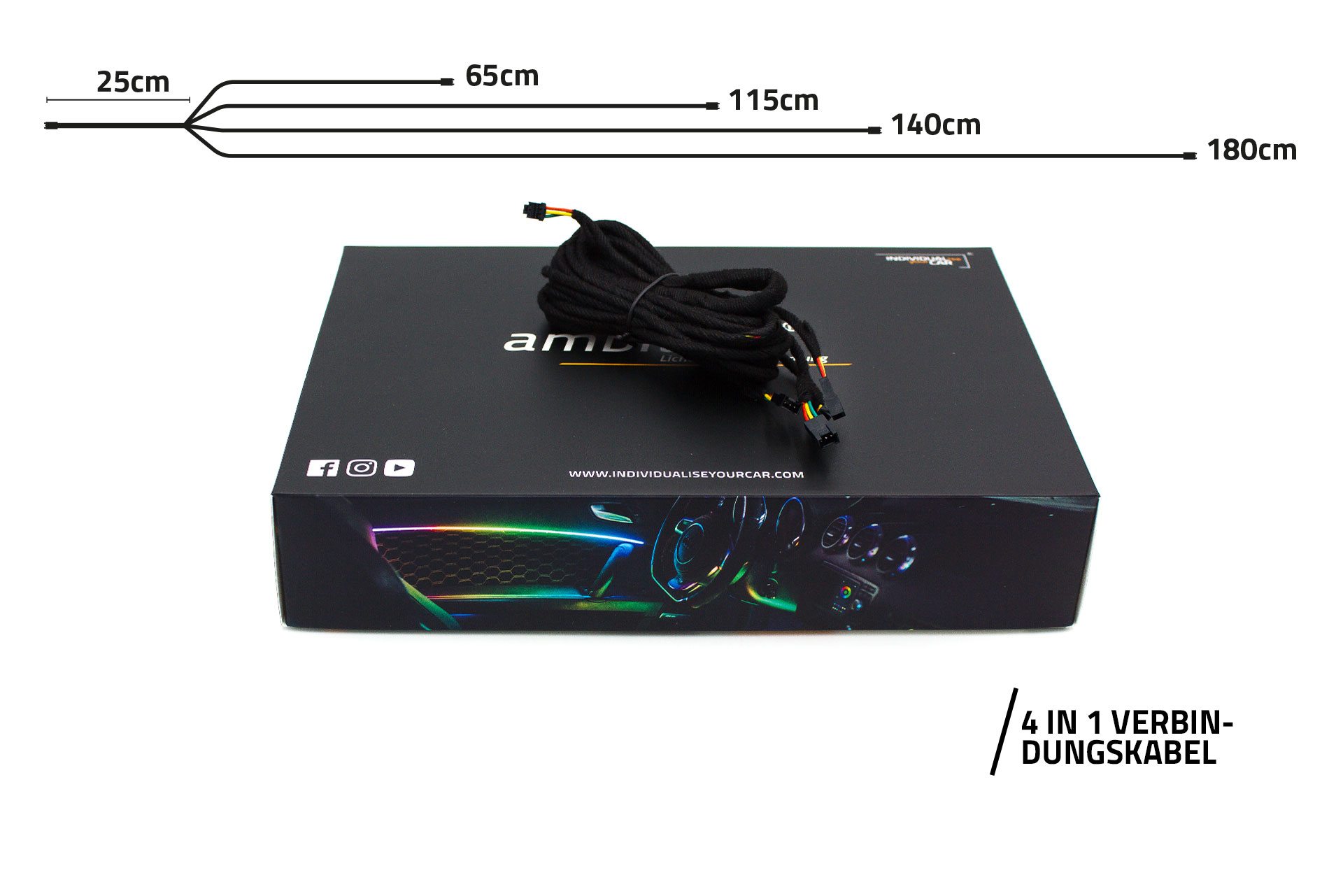

The delivery includes the following parts:

If possible: By selecting the desired parts (top right next to the “Add to Cart” button), the scope of delivery and the price will be adjusted individually for you.

Fits the following models:

Installation Instructions​:

• Our instructions are to be understood as installation ideas. Our ambient lighting is intended to be connected to the car battery or the cigarette lighter socket (in the fuse box). Wiring to the onboard electronics is done at your own risk. Connection to the onboard lighting is NOT possible as most vehicles use a PWM signal to dim the lighting. This damages the color change modules.
• You only need to connect the parent unit to the switched power source (so that the ambient lighting comes on when, for example, the ignition is turned on). You connect the child units to the constant power lines. However, these will only come on when the parent unit gives the command.
• If you want to drill holes in your door panel (necessary for a few models), drill them at an angle so you don’t have to bend ambitrim®.
• All electrical work must be carried out by qualified personnel/workshop.
• Our ambitrim® light bars can be easily glued using plastic adhesive.
• You can find the installation video here: Click me
• For each module, you can connect a maximum of 2x 100cm light bars. If you connect more than that, you will overload the module and it will not work. Of course, it also depends on what else you connect to the module, but it should never be more than 2x 100cm light bars.
• A parent module has 2x connections for light sources, a child module has 4x connections for light sources.
• IMPORTANT: During the very first start of the system, the parent module must be powered before the child modules, as this ensures the learning process runs correctly.

Legal Notices

This item is only permitted inside the vehicle. Outside the vehicle, the item is not allowed within the scope of road traffic regulations (short StVO) (see §22a StVZO).
