Description

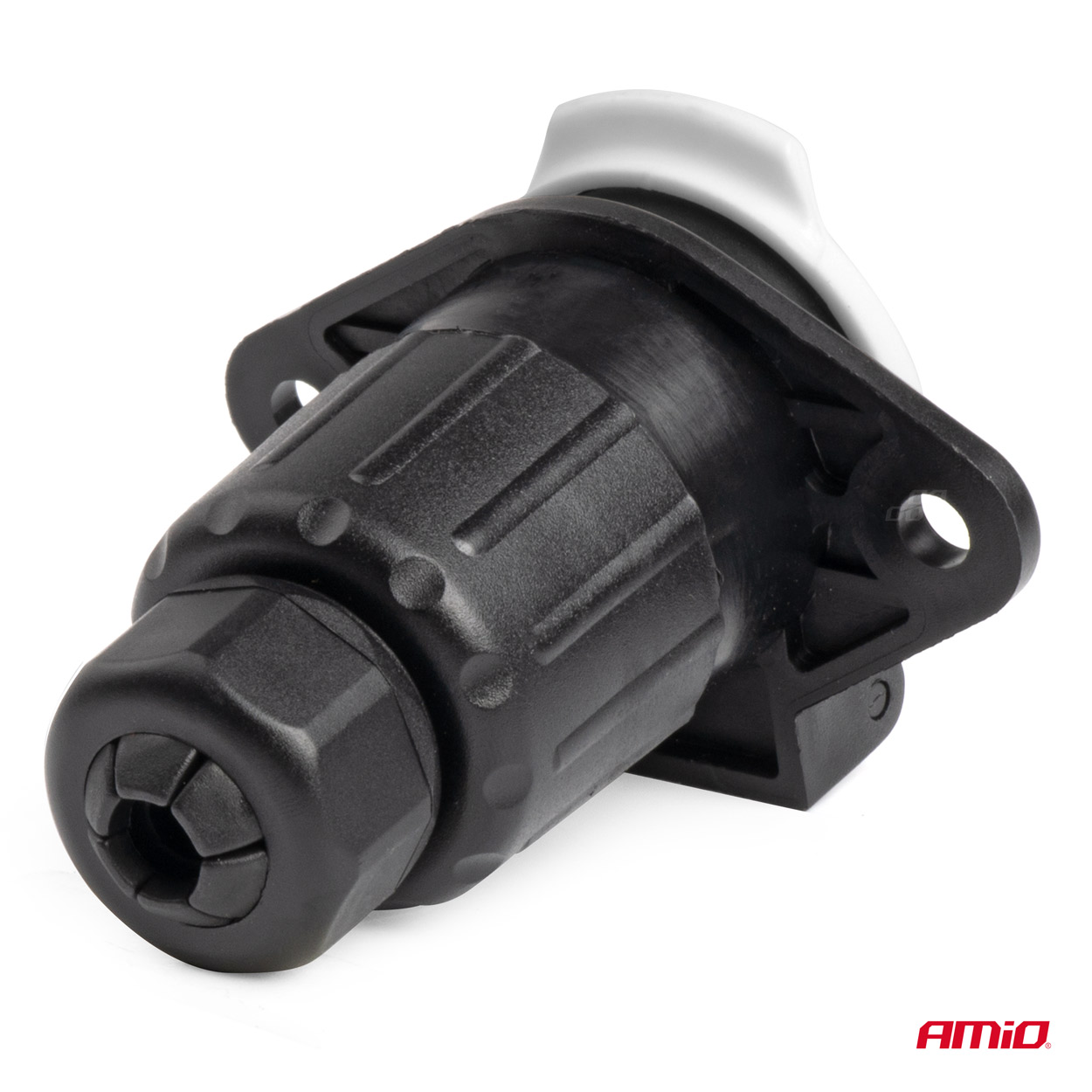

7-pin S-type 24V trailer socket

Universal 7-pin S-type socket designed for the connection and supply of 24V electrical installation in semi-trailers, heavy-duty trailers and other heavy-duty vehicles.

It provides a permanent connection between the electrical system of the semi-trailer and the towing vehicle, guaranteeing uninterrupted operation of the available functions (e.g. lighting).

The 7-pin 24V connector is currently the most common system used to implement electrical connections between trailers and tractors in normal applications.

Key features:

• Universal, fits any type of trailer / semi-trailer
• Construction allows easy assembly and disassembly
• Flap closure to protect against accidental opening and flooding when the cable is not connected
• Durable, damage-resistant and weatherproof metal housing
• Metal contacts that guarantee a correct electrical connection under all conditions
• Rubber cover to protect the interior from dirt (on the back of the housing) -Cable entry from the rear
• Cable entry from the back of the socket via a hole in the cover -Fits two mounting holes
• Provides two mounting holes

Specifications:

• Type: 7-pin S-type trailer socket
• Voltage: 24V
• Plug: 7-pin S-type connector, male connector without pin (white)
• Casing: plastic
• Connection: screwed
• Mounting holes: 2
• Max cable diameter (rubber boot): 10.3 mm
• Colour: black
• Total length: 85 mm
• Connector diameter: 45 mm
• Mounting hole spacing: 75 mm
• Weight: 180 g
