Description

The camera sensor kit is a base for which you should choose one of our LCD displays ( P/N: 01020 or P/N: 02484) and one camera from our wide range.

It is also possible to connect to a radio that is equipped with PAL/NTSC system.

Parking assistant is a device that assists in parking and reversing the car. It is a universal and proven device for those who value safety on the road. The device is simple and functional, it starts automatically. Thanks to the ultrasonic probes you will never again hit any object with your car. When reversing or parking, the device correctly recognizes obstacles on the road and warns the driver with a sound signal (appropriate to the distance from the obstacle) as well as information is shown on the screen.

Specifications of the device:

• Power supply 12V DC
• Current consumption <4W
• Frequency of operation: 40KHz
• Operating temperature of the device -30°C to +55°C
• Obstacle detection 2.5 – 0.3m
• Measurement error +/- 5cm
• Cable length from sensors 2.2m
• Cable length from the display 5m

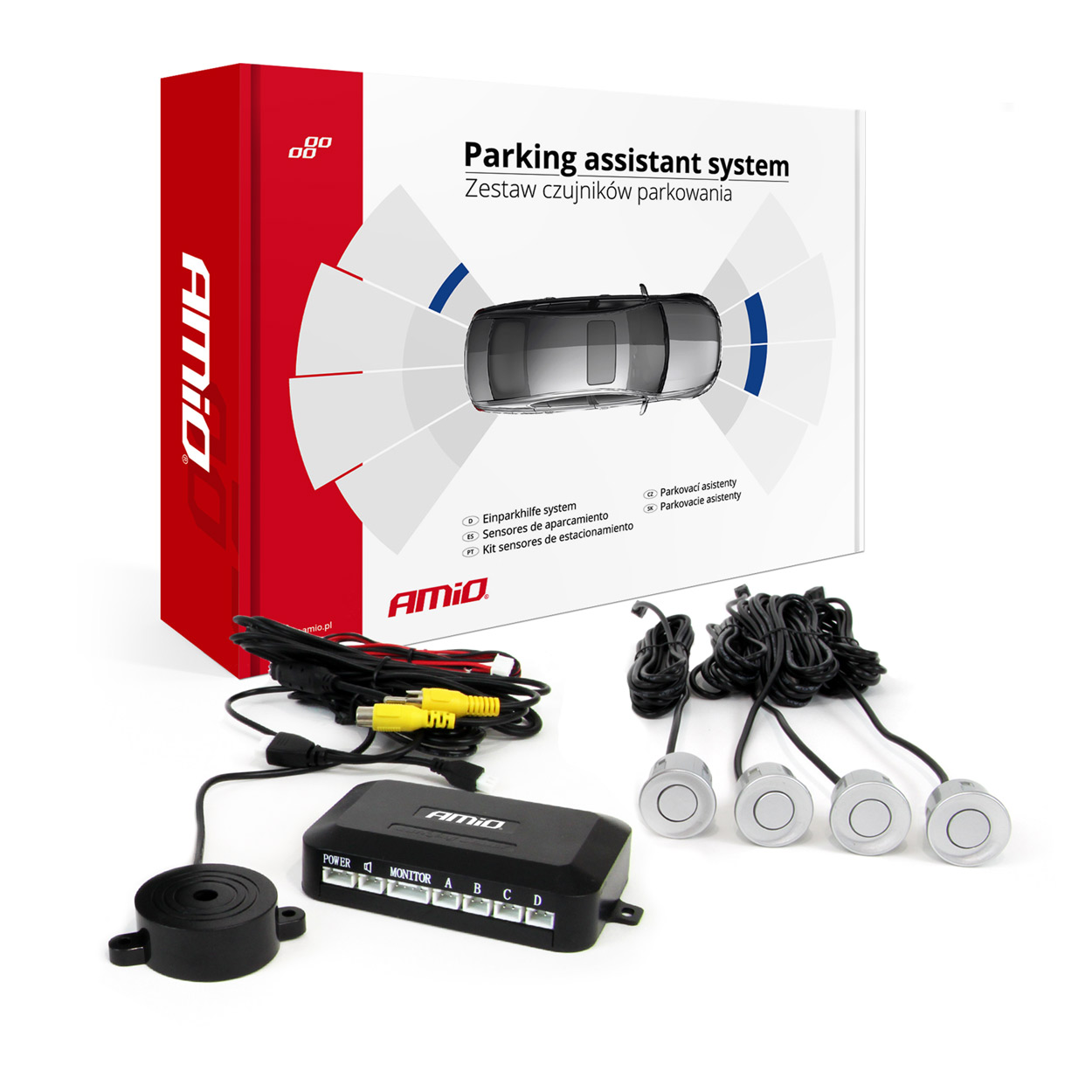

Set composition:

• control panel tft with connection to the display and camera
• sensors/sensors
• wiring
• mounting drill
• instruction manual

Advantages:

• The kit includes sensor sensors that we can place in any configuration at the front or rear of the car, thus increasing safety in your vehicle.
• The sensors activate automatically when reverse gear is engaged for the rear sensors or by pressing the brake pedal for the front sensors. The control panel is factory calibrated.
• The front sensors are activated by pressing the brake pedal (lighting up the stop lights). When the brake pedal is pressed and released, the sensors operate for 15 seconds. The system will activate if an obstacle is detected within 80cm of the vehicle.
• Detection of an obstacle is signaled by distance indication, graphic indication and additionally by sound through the built-in speaker.
• The set is equipped with high-end sensors with a flat flange.
• The sensors are completely waterproof. They are also resistant to weather conditions such as snow, rain or fog.
• If necessary, it is possible to paint the sensors with 1-2 layers of varnish (on your own).
• Universal product, fits most cars, we also have extensions for vans should the wiring from the kit prove too short.
