Description

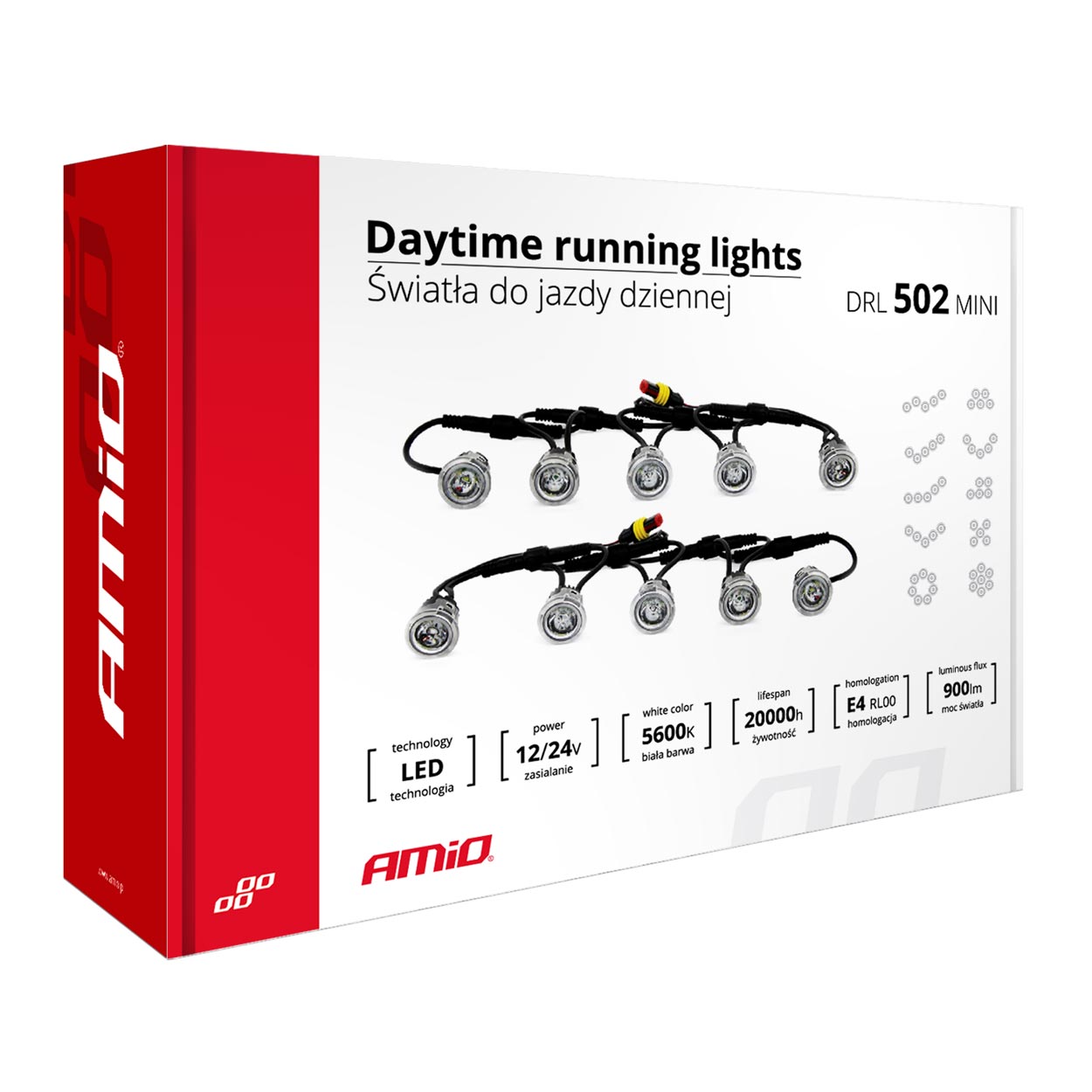

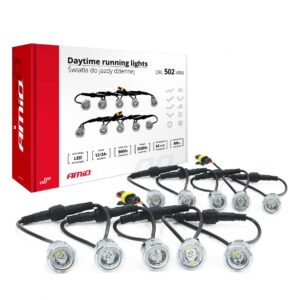

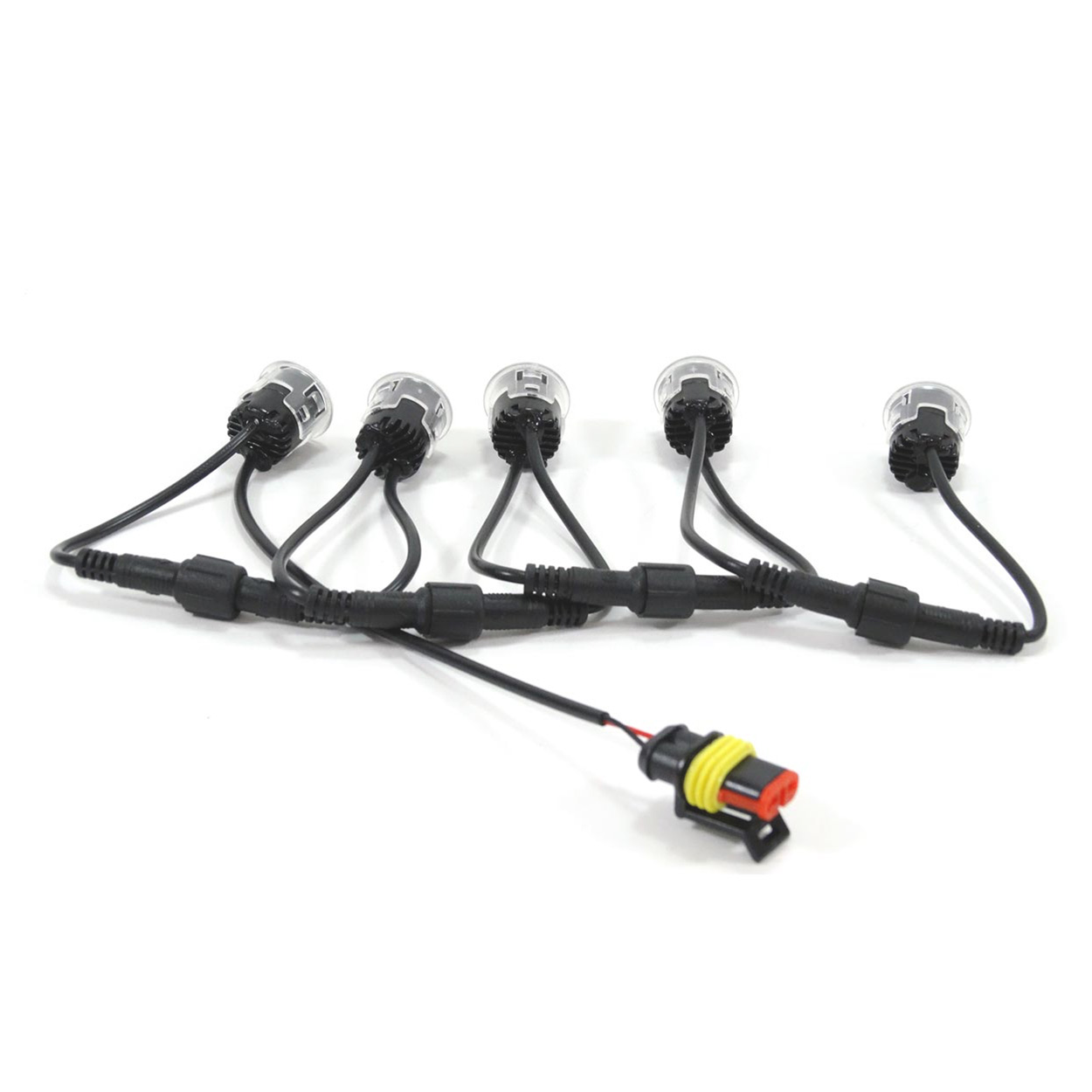

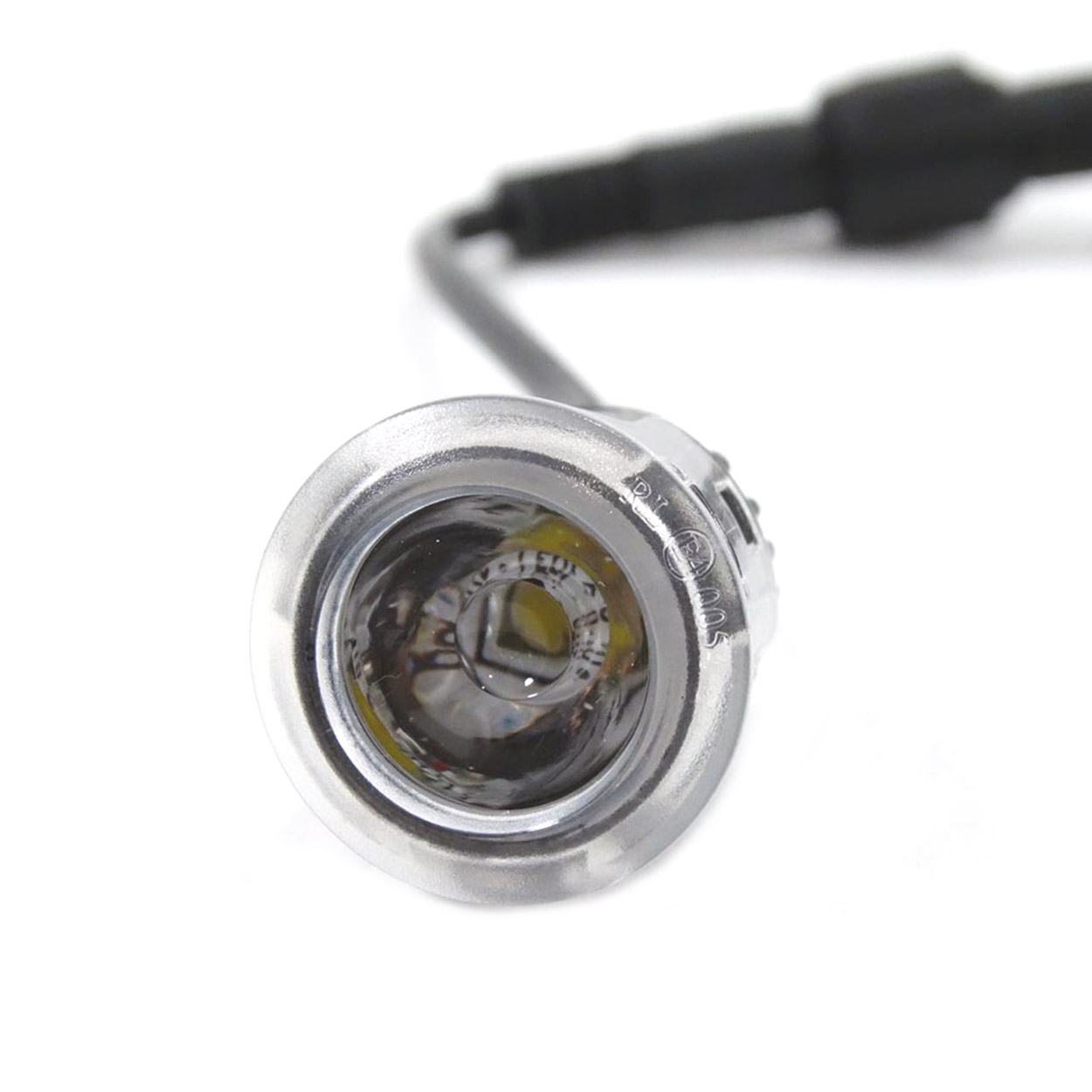

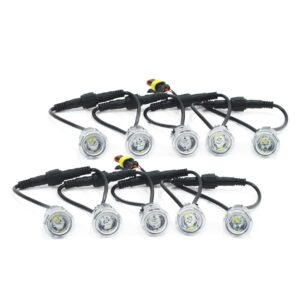

The model which fully satisfies even the most demanding customers. The flexibility in the composition of individual modules (from 4 up to 7 per side) is the distinguishing feature of NSSC 502 HP mini light. An infinite number of assembling configurations provides a unique and modern look of the vehicle. The standard kit consists of 10 modules, so called "eyes" which are equipped with 1 W high power SMD LEDs. Each eye have a diameter of 23 mm.
There is a possibility to enlarge the kit of 2 pairs of modules, which gives an additional 4 "eyes". See "Related Products".
|
Full specification: |
|
|
Diodes |
1 x SMD (/ per eye) |
|

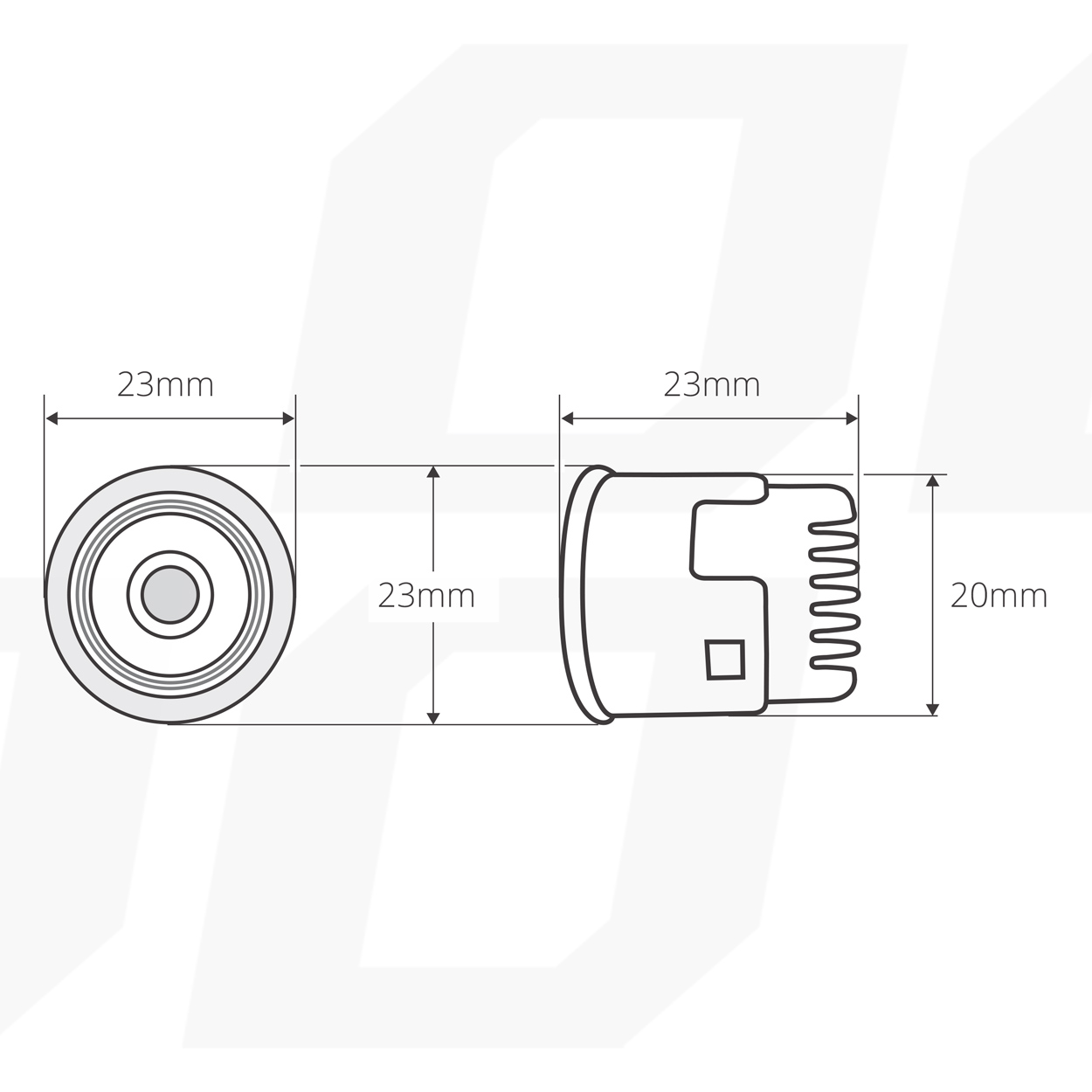

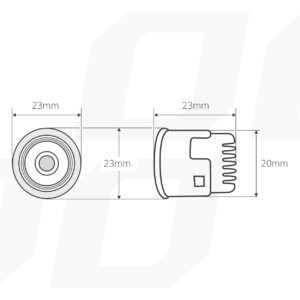

Size (length x height x width) |
ø20/(ø23) x 21 (mm) |
|
Main board |
Aluminium |
|
Total power consumption |
10,56W |
|
Voltage |
12 / 24* V (*to choose) |
|
Homologation |
RL00, E4. Entry into service on the basis of RCE87 |
|
Waterproofness |
Yes |
|
Automatic switch included |
Yes |
|
Machinery integrated elements |
Yes |
|
Reflector |
Lenticular |
|
Warranty |
Yes |
|
Front glass |
PE (in keeping with UE's requirements and safe) |
