Description

• Instructions for use

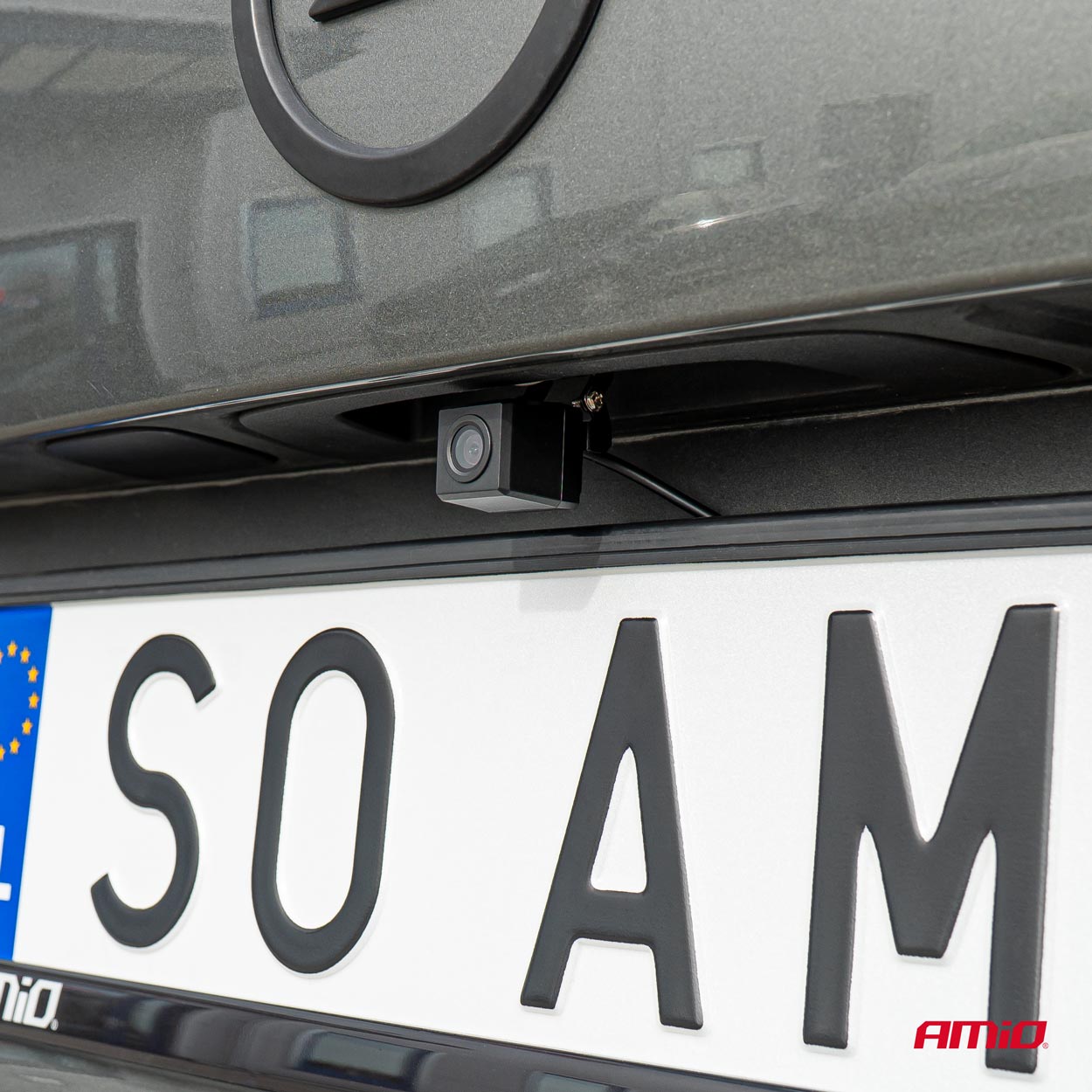

A rearview camera is a device that can be installed in passenger cars, vans, and other vehicles. Its primary purpose is to provide a view of the rear of the vehicle, making parking and reversing significantly easier. This camera helps prevent accidental collisions with obstacles invisible to the naked eye and allows for more precise monitoring of our position within the parking space.

Reverse Camera + Moving Camera – in addition to the standard reversing camera function, it has an additional “moving camera” option.

Differences:

• Reverse – this is a regular reversing camera, showing the rear image.
• Moving Camera – means that the camera can track the vehicle’s movement or adjust its viewing angle, e.g. follow the direction of the wheels or dynamically change the perspective to better show the surroundings.

Specification:

• Resolution: 720p HD
• Horizontal viewing angle: 120°
• Waterproof class: IP67
• Voltage: 12V
• Image: reverse
• Operating temperature: -30 ~+70°C, RH 95% Max
• Storage temperature: -30 ~+80°C, RH 95% Max

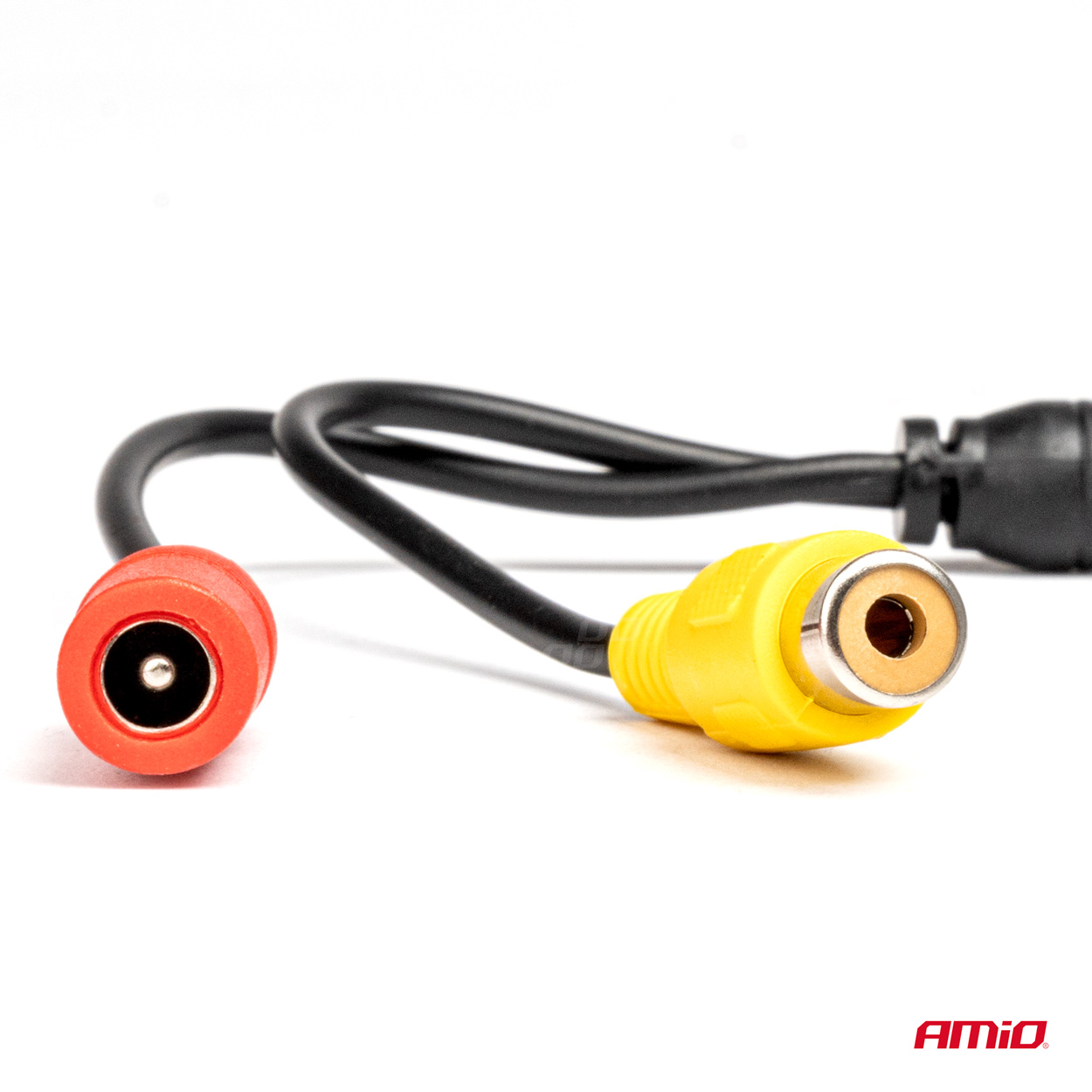

• Cable length at the camera: 50 cm

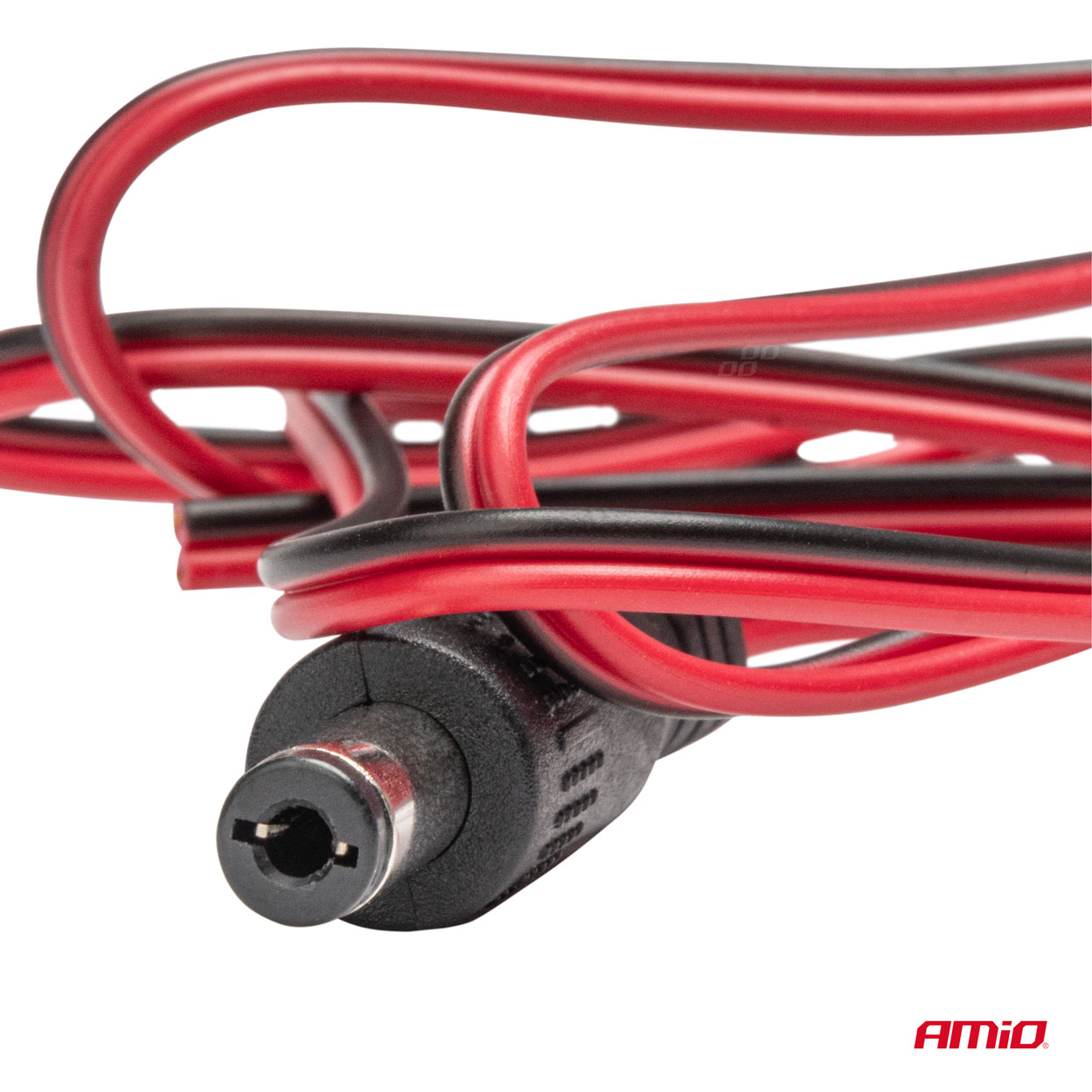

• Power cord length: 80 cm

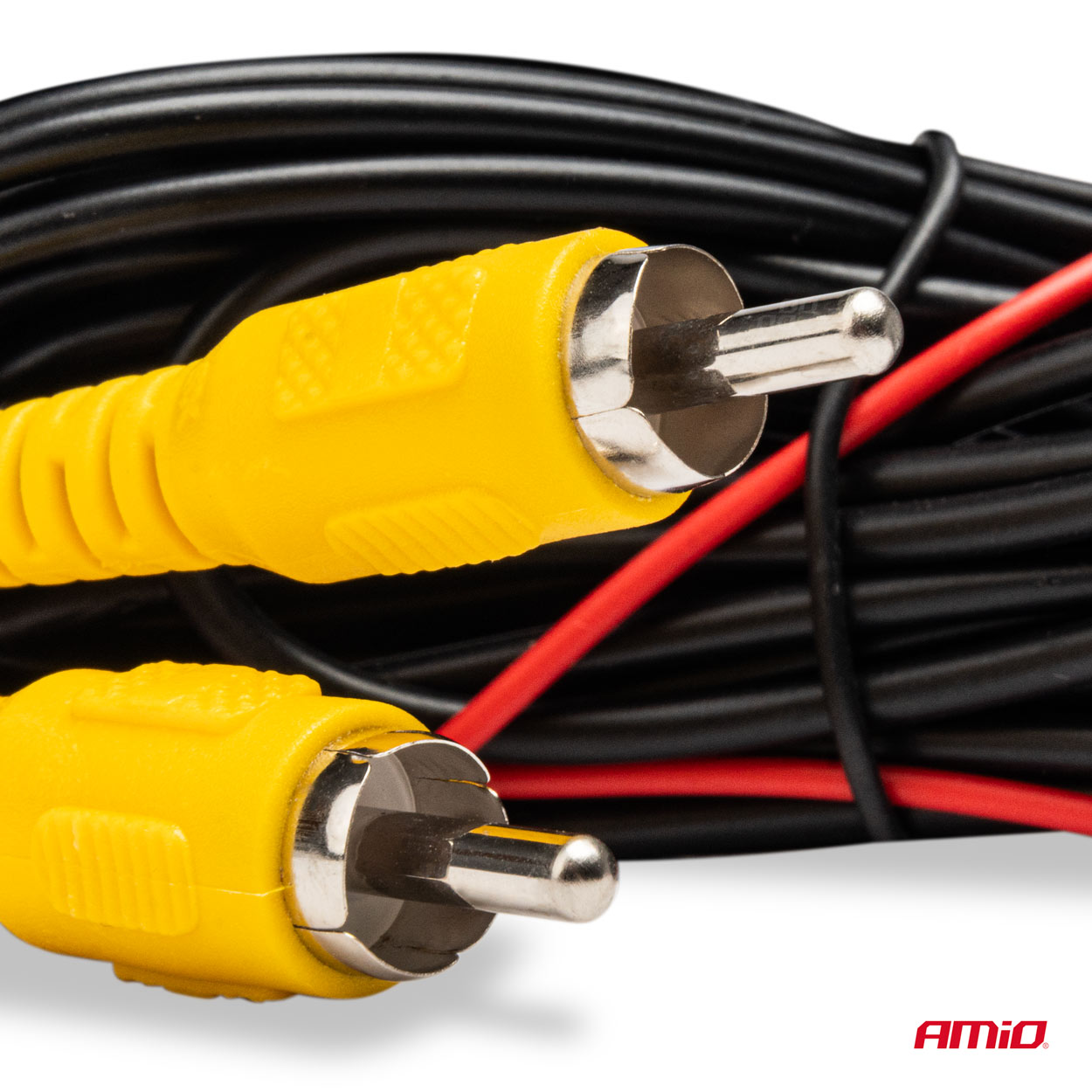

• Length of video cable to monitor: 6 m

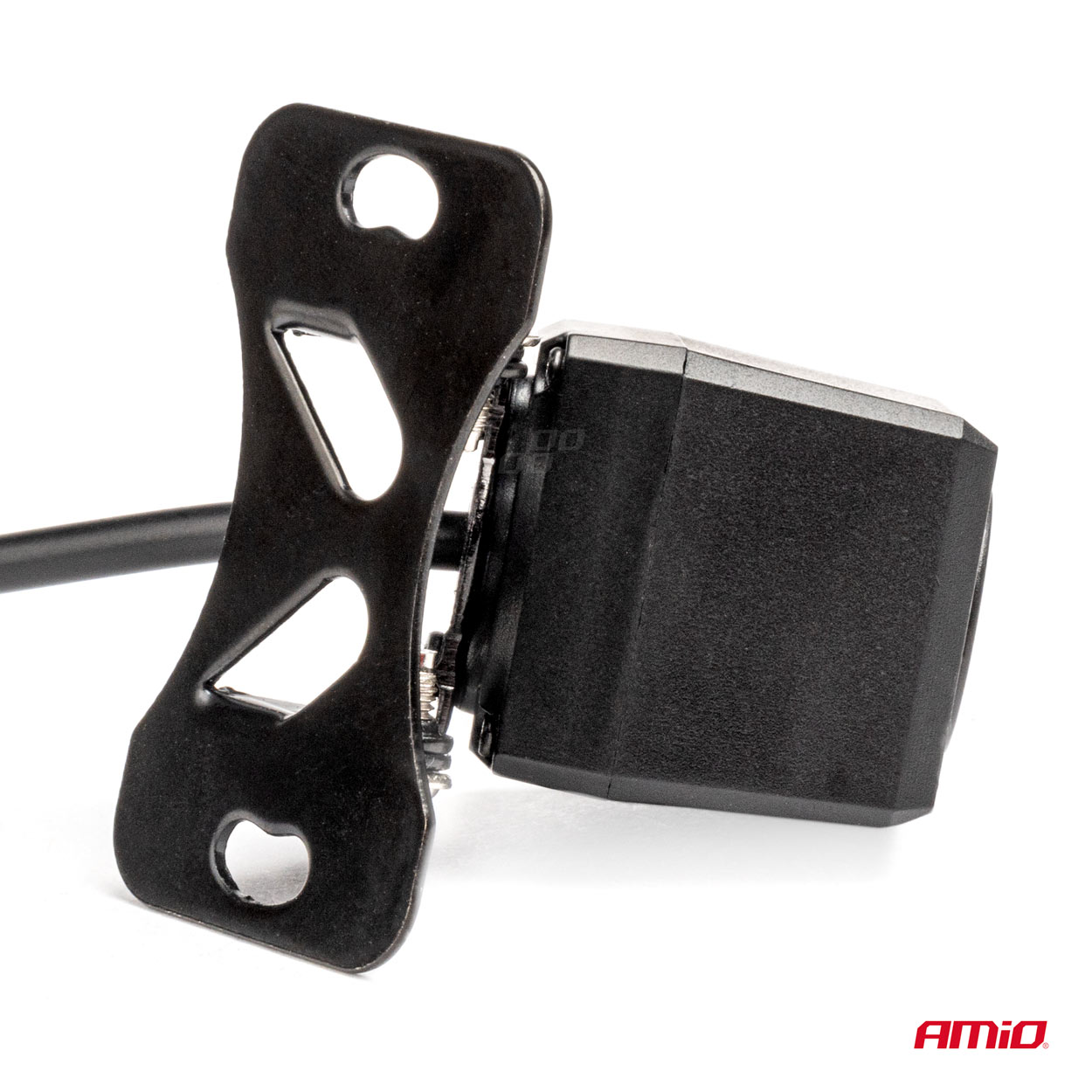

• This camera model has the ability to be adjusted up/down

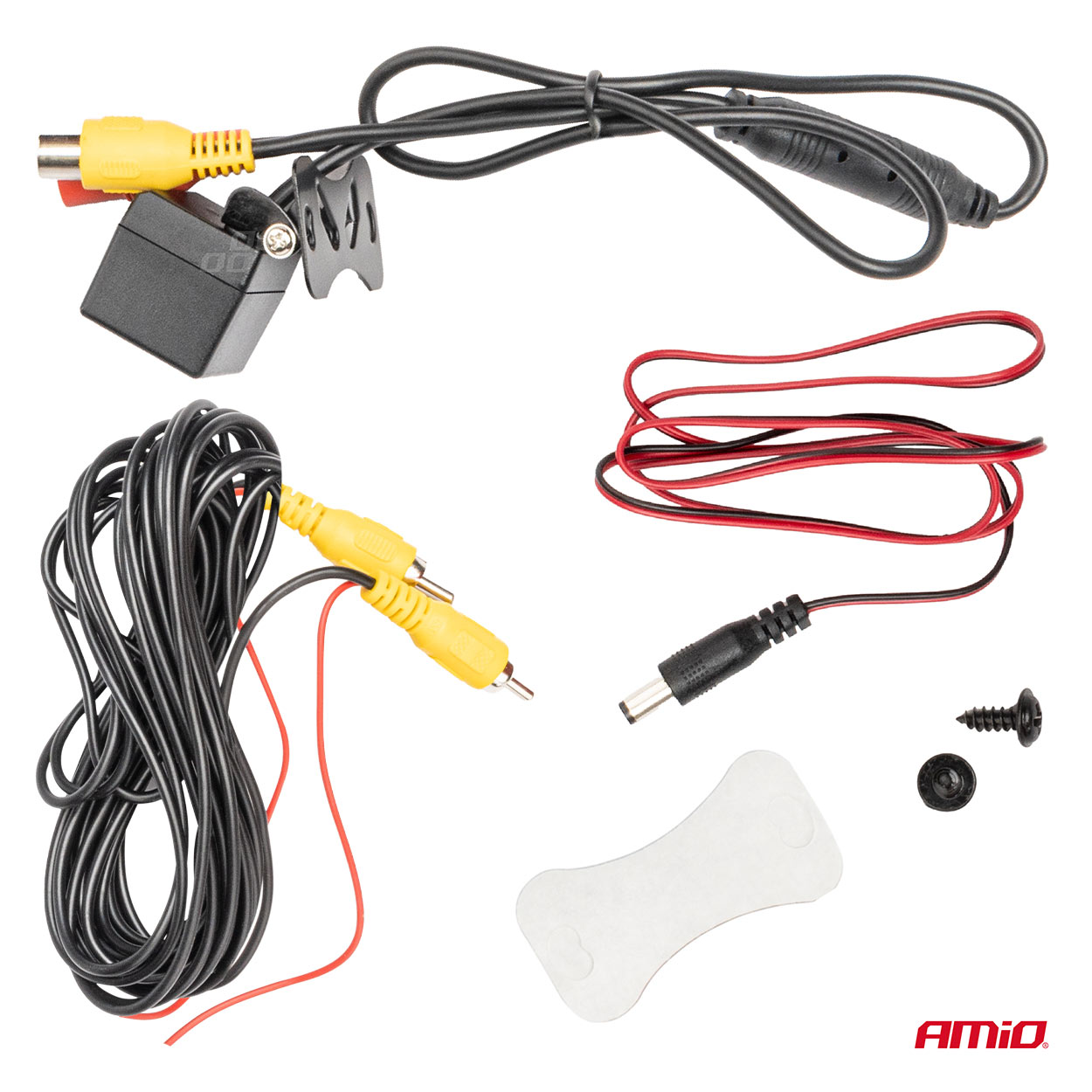

The package contains:

• HD-330 rear view camera
• Cables and mounting accessories
• User manual in Polish
