Description

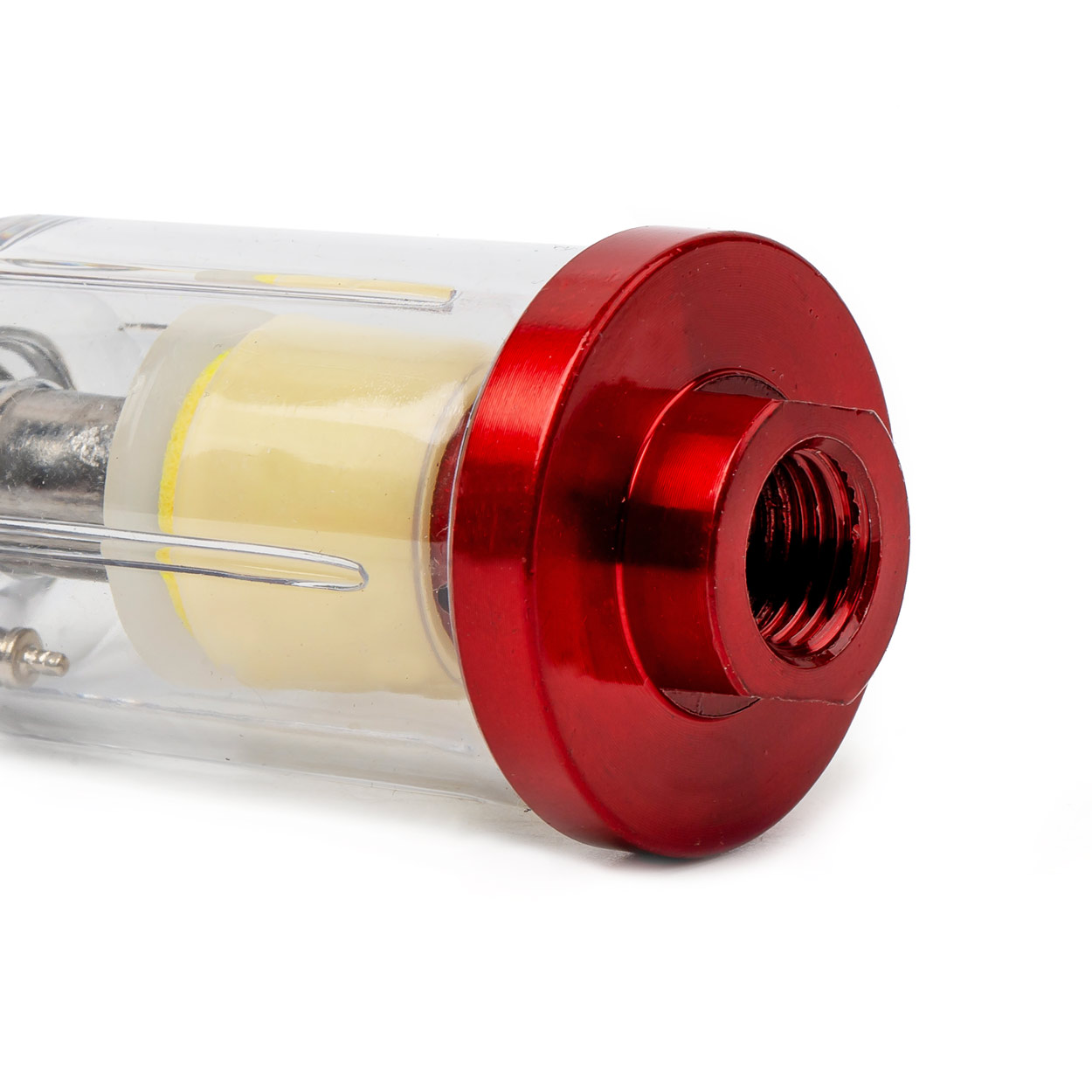

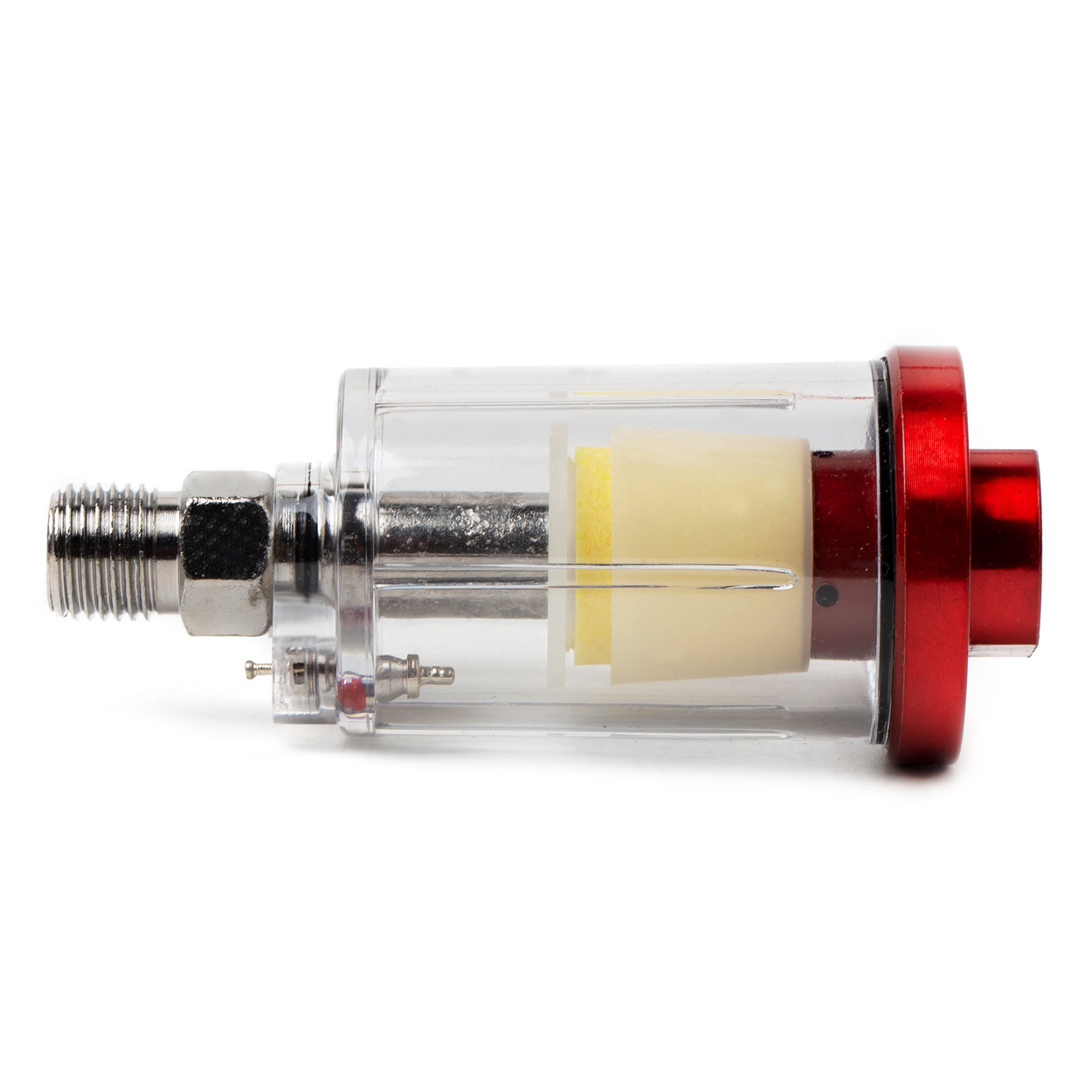

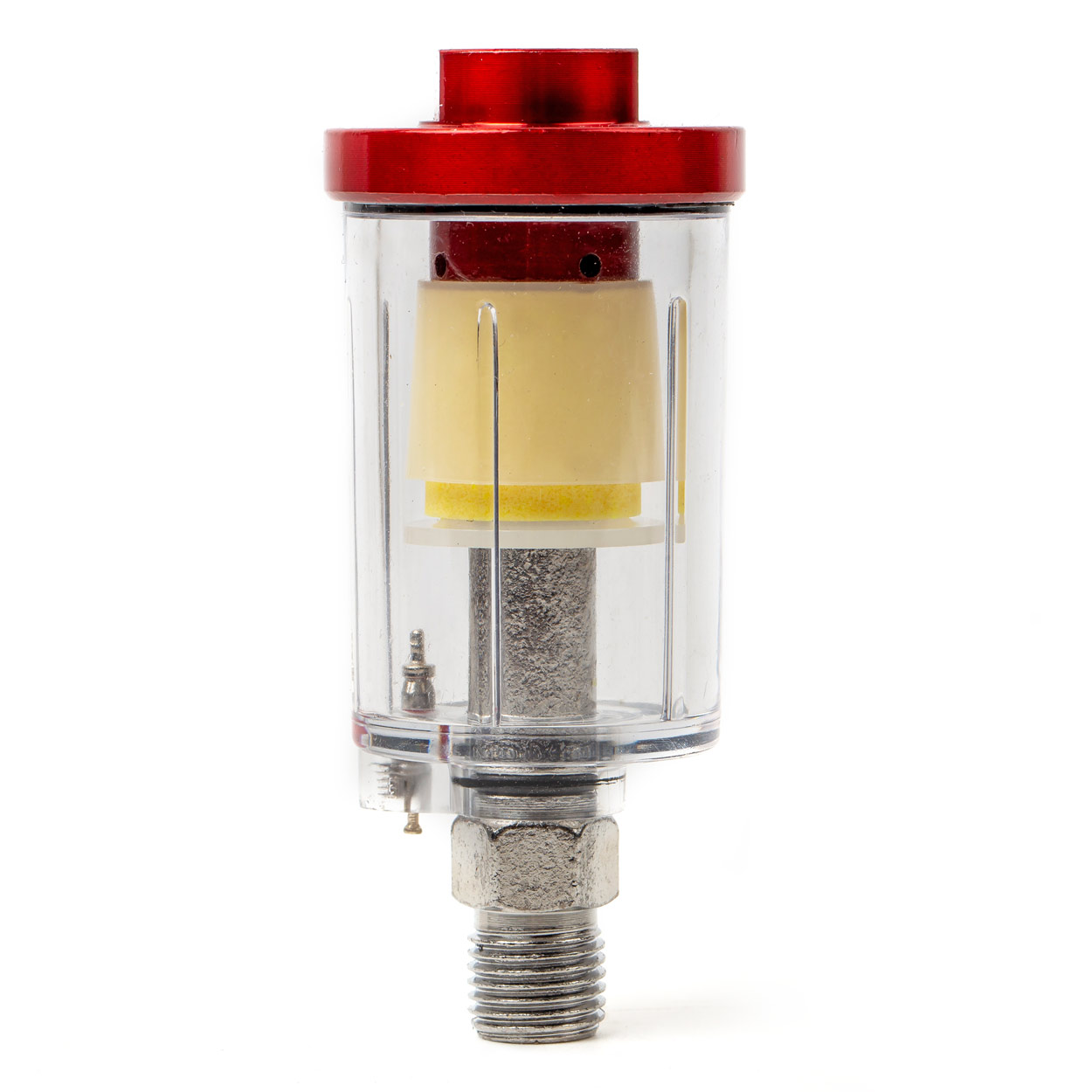

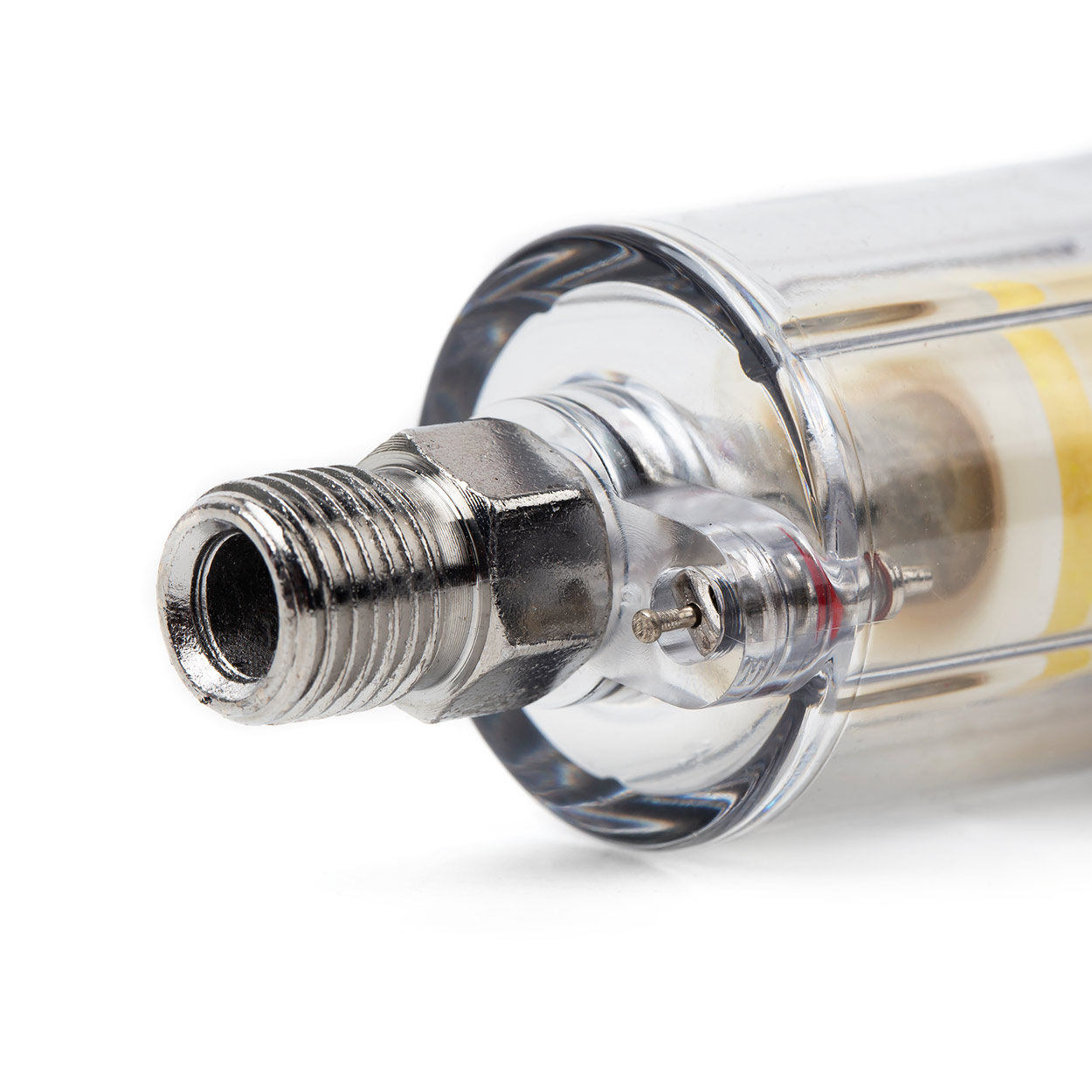

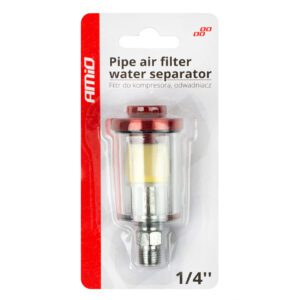

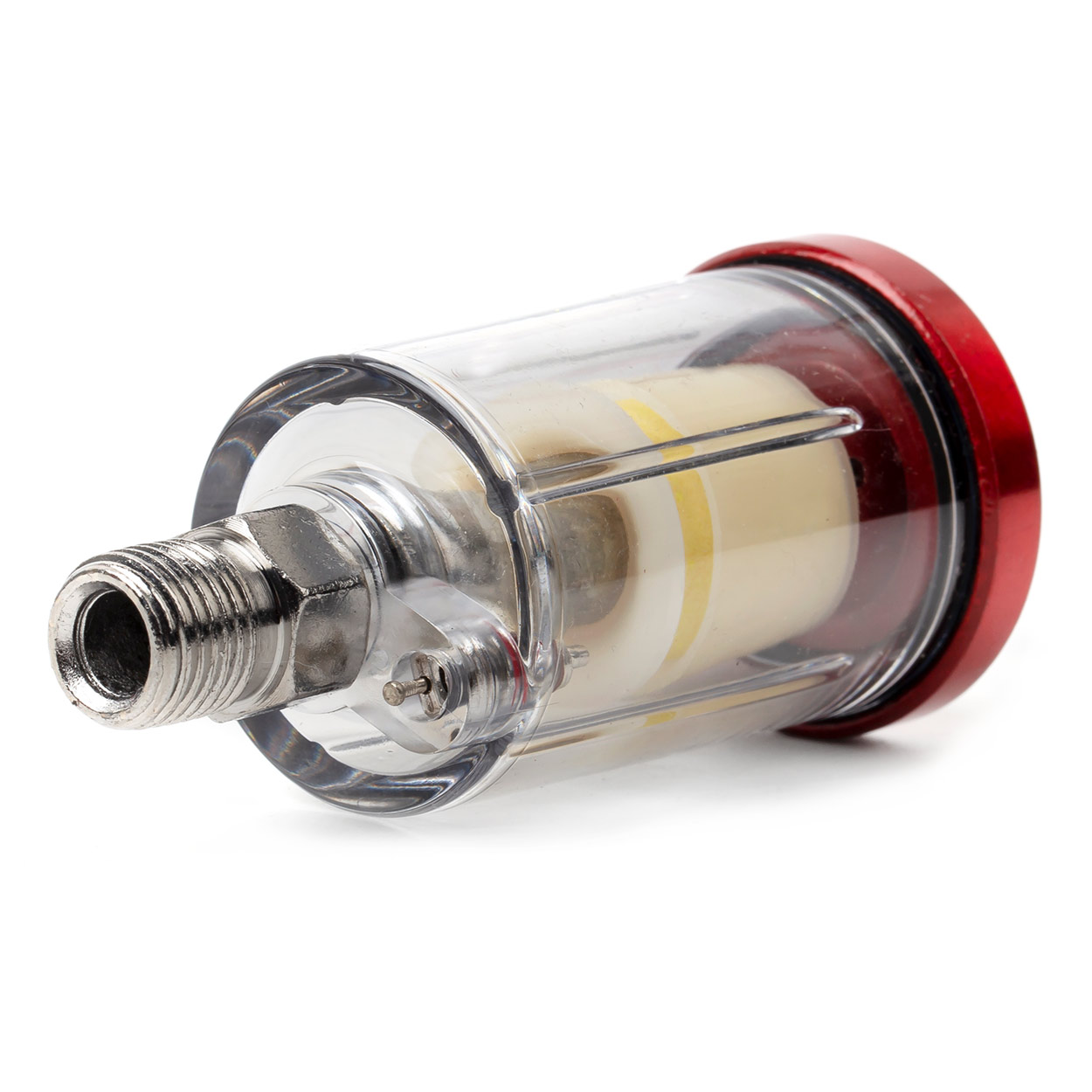

The **PT-18 pipe air filter / water separator** is designed to remove water and oil droplets that condense within compressed air lines. It can be installed before the compressor quick-connect coupling or directly before pneumatic tools and spray guns.

Features / advantages:

• Dimensions: 9 × 4 cm
• Connection: 1/4″ – standard pneumatic thread
• Mechanical filtration to 0.04 mm – removes fine particles
• Condensate capacity: 30 ml – manual drain
• Air flow: up to 1000 l/min
• Max working pressure: 10 bar
• Max temperature: 60 °C
• Robust metal housing for reliable performance

Usage guide:

• Install the filter close to the source of condensate in your line
• Manually drain condensate regularly for optimal performance
• Check filter condition and air quality periodically
• Do not exceed the maximum pressure or temperature limits
