FULL SET – FRAME + BUZZER + CONTROL UNIT

Universal ultrasonic, 3-sensor parking sensors are equipped with a buzzer with a built-in acoustic signal.

The sensors turn on automatically when reverse gear is engaged.

The set includes:

• 3 black ultrasonic sensors integrated into the board frame

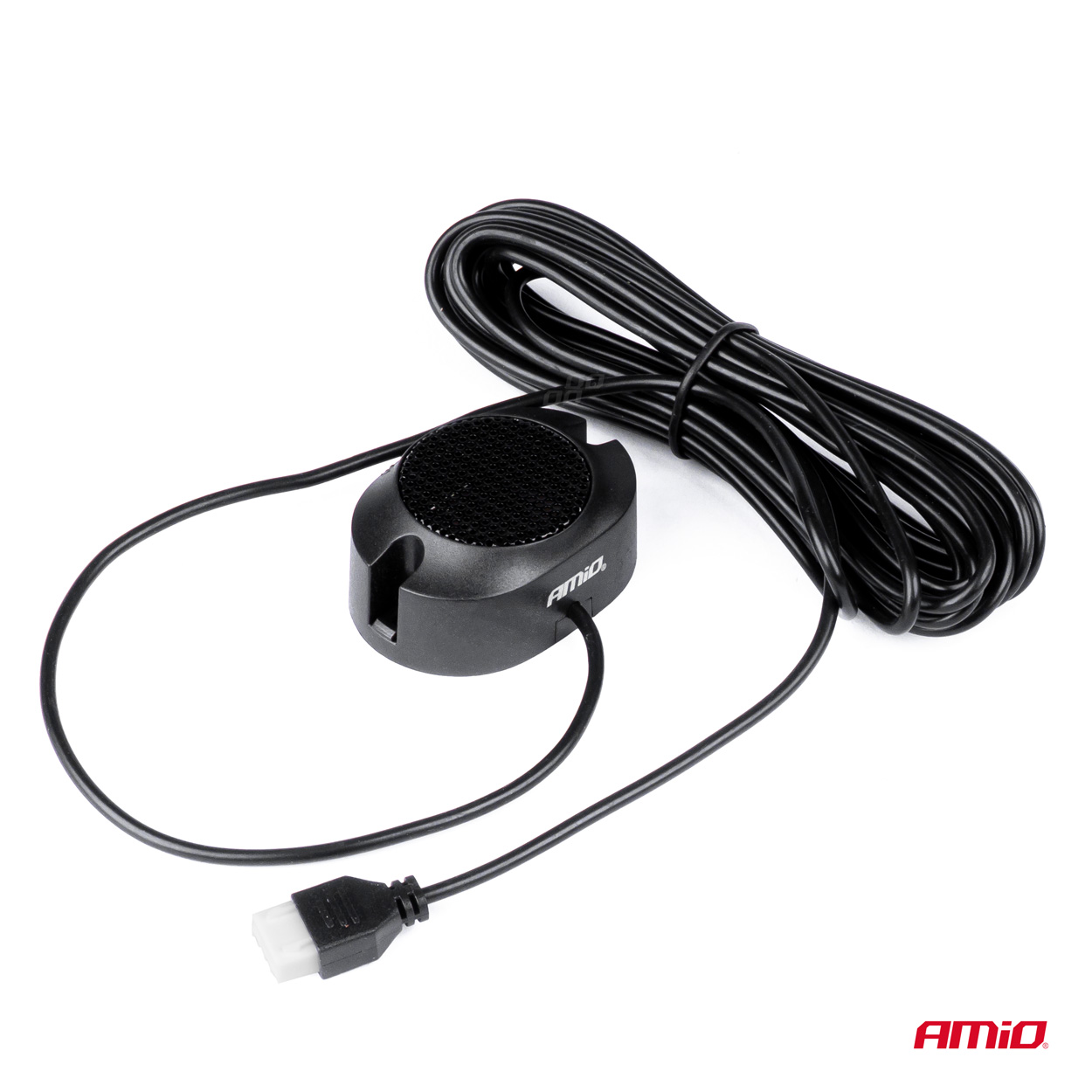

• Buzzer sound indicator
• Central module – sensor controller
• Matching pieces of double-sided adhesive tape – for the buzzer and the central module.
• Instructions for connecting the set

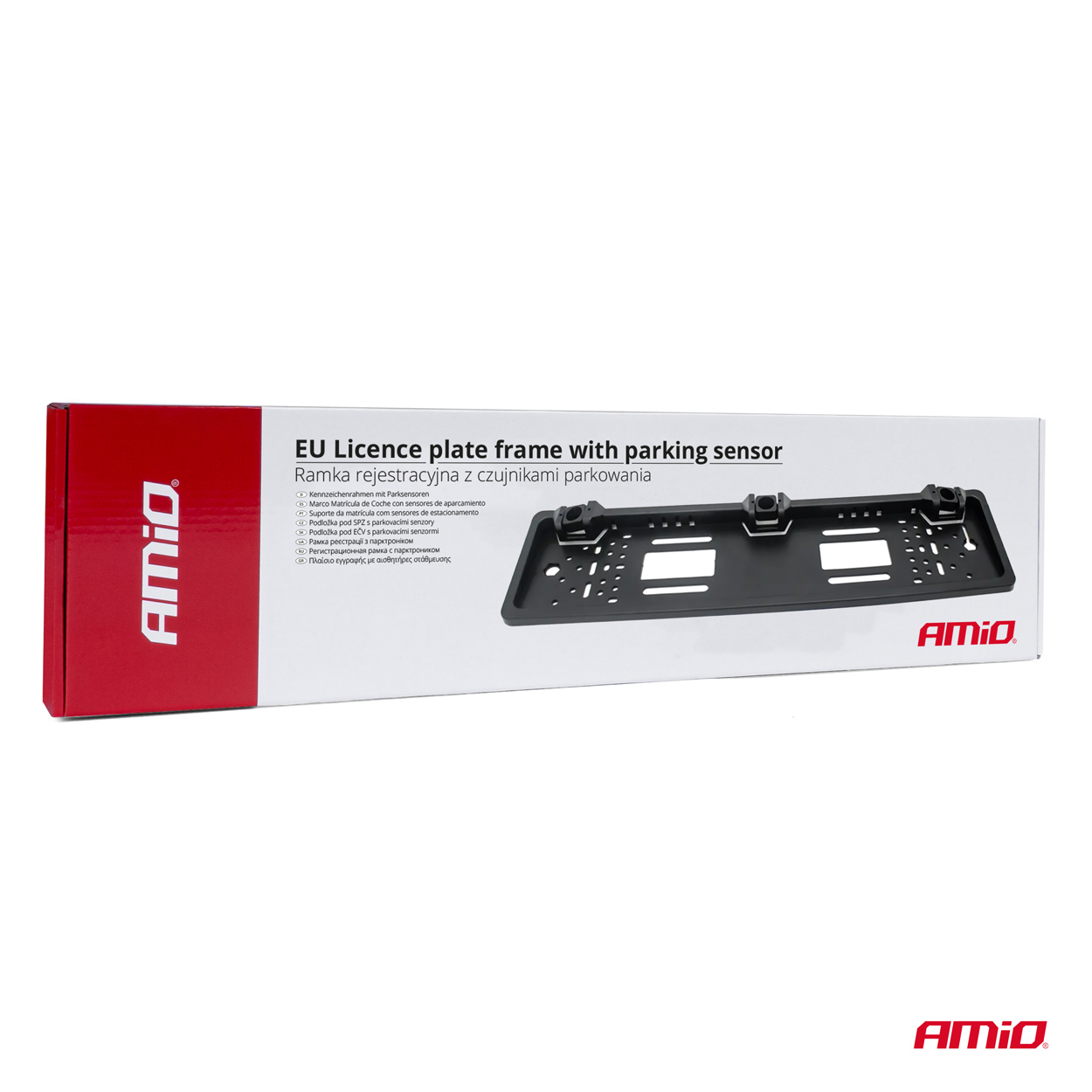

• Original packaging

Perfect performance in all conditions

Falling rain does not affect the operation of the device, while the sensors have an IP69 waterproof class, which means they are perfectly protected against the ingress of water, dust and any contamination into the interior of the device.

Safety through precision

The sensors are calibrated to precisely detect even the smallest obstacles, such as parking bollards, city barriers, high curbs, etc.

Intuitive sound signal

The signal frequency changes as the obstacle approaches. This allows the driver to react in time.

Technical specifications:

• Power supply: 12V (10.5V-16V)
• IP69 – waterproof and protected against dust, sand and dirt
• Power consumption: <4W
• Supply current: 50-200mA
• Device operating temperature: from -30°C to +70°C
• Number of sensors: 3

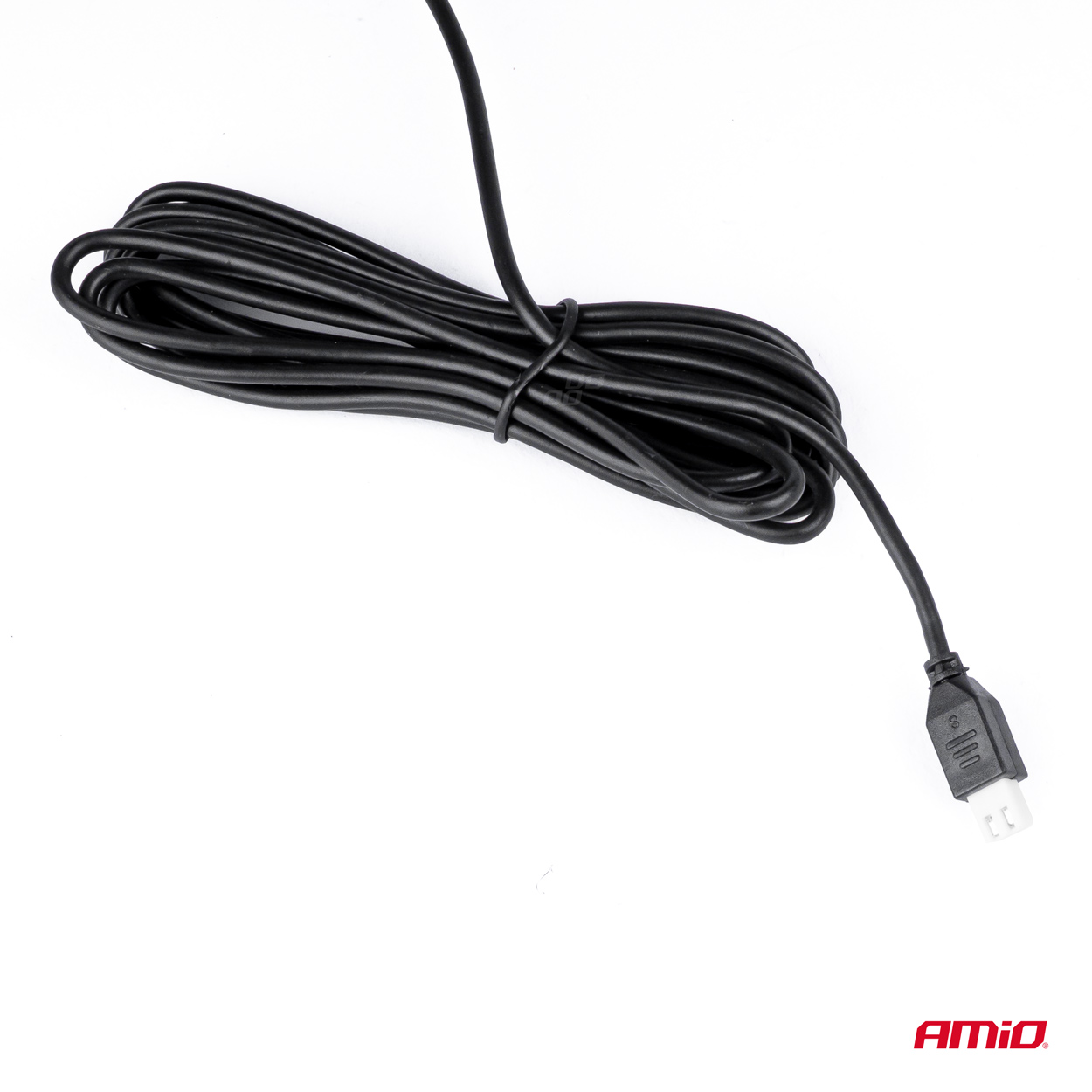

• Sensor cable length: 2.4 m

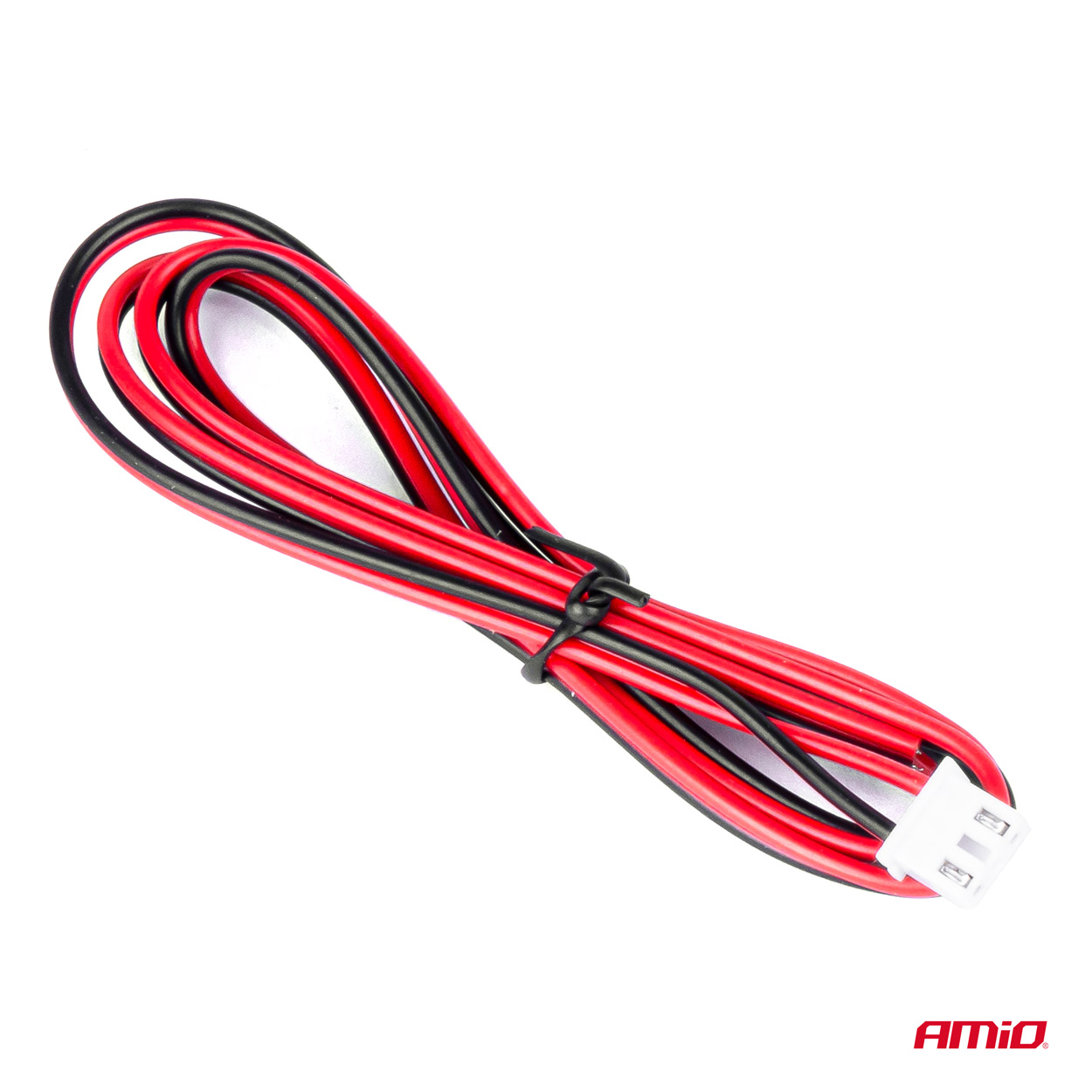

• Power cord length: 70 cm
