Description

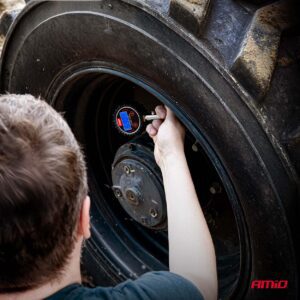

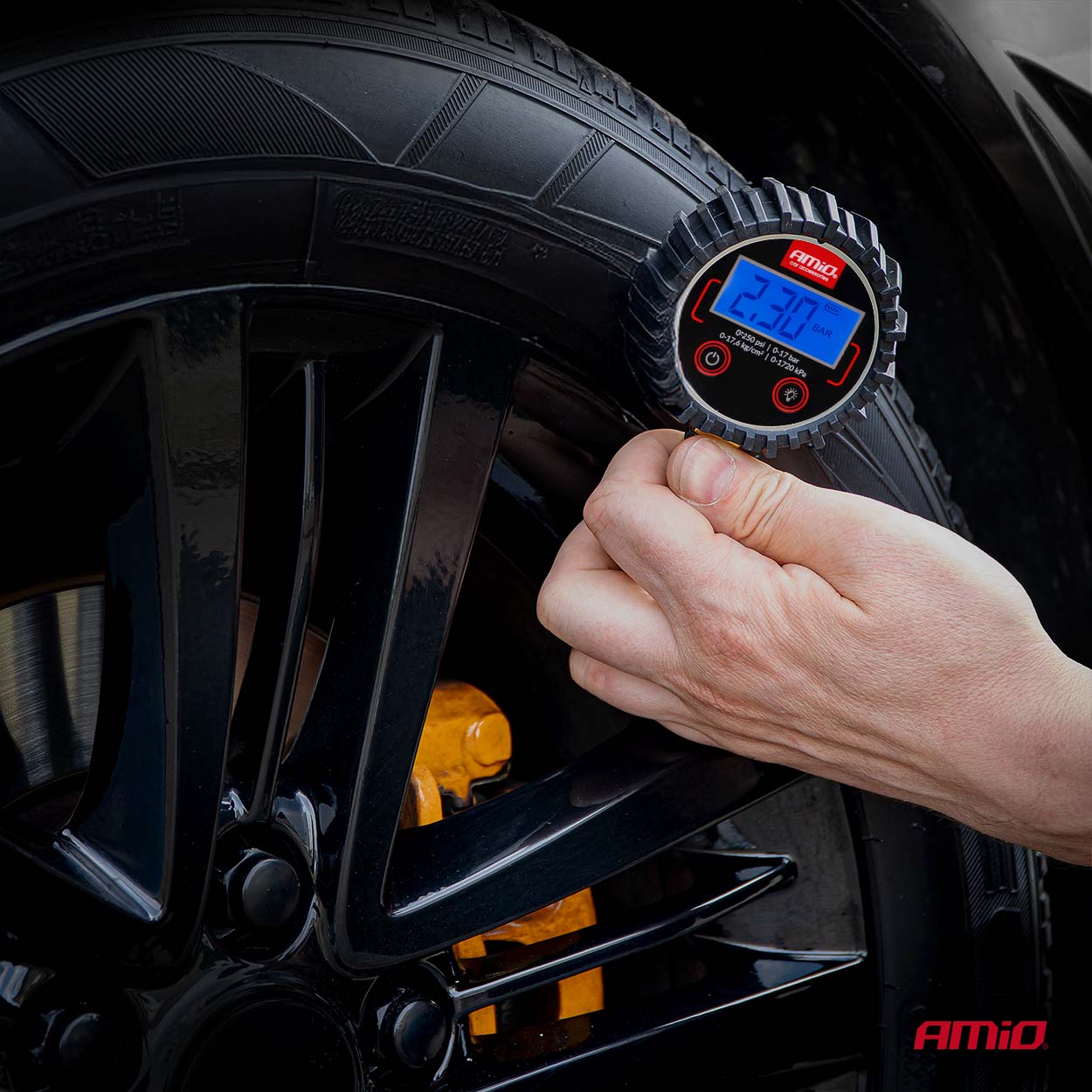

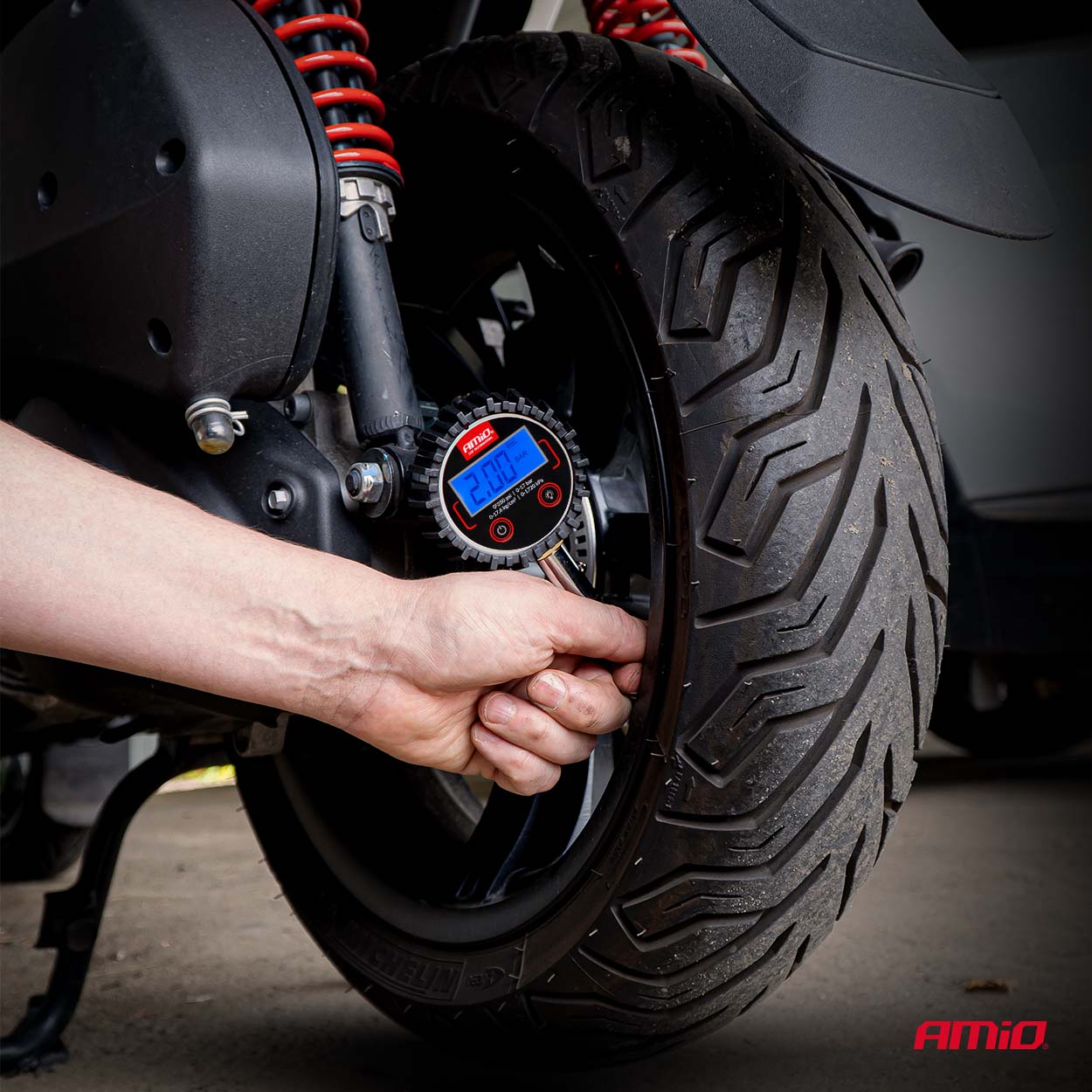

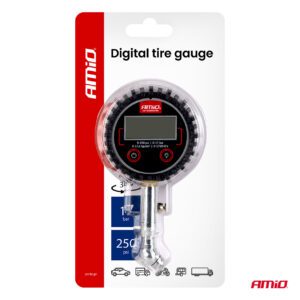

Digital manometer with rotating head and bleed valve (AMIO-04464) is designed for accurate tire pressure measurement up to 17 bar. The rotating head ensures easy access to hard-to-reach valves, while the bleed valve allows precise adjustment without removing the device. The large LCD display guarantees quick and clear readings.

Specifications / features:

• Pressure range: 0–17 bar (0–250 psi / 0–17.6 kgf/cm² / 0–1720 kPa)
• Units: psi, bar, kPa, kgf/cm²
• Resolution: 0.1 psi / 0.01 bar / 1 kPa / 0.01 kgf/cm²
• Accuracy:
  • 3 – 100 psi: ≦ ±1 psi
  • 100 – 200 psi: ≦ ±2 psi
  • 200 – 300 psi: ≦ ±5 psi
  • 0.2 – 7 bar: ≦ ±0.07 bar
  • 7 – 13.7 bar: ≦ ±0.13 bar
  • 13.7 – 20.6 bar: ≦ ±0.34 bar
• Power supply: 2 × AAA batteries (included)

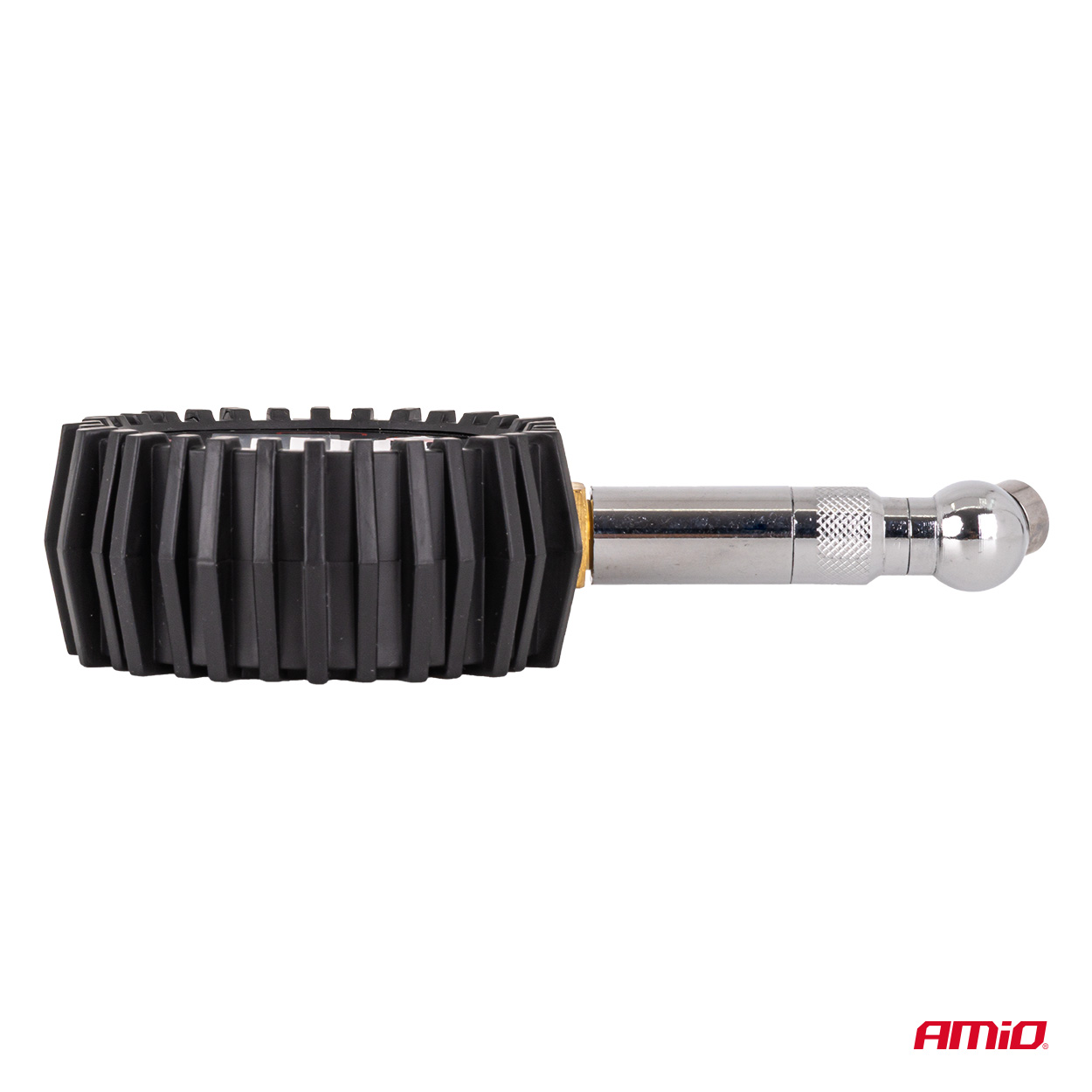

• Rotating head for easy valve access
• Bleed valve for pressure release

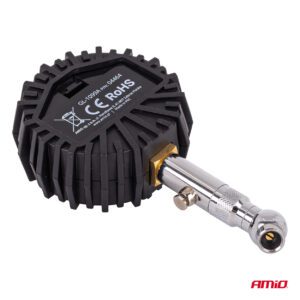

• Rubber protective housing – impact resistant

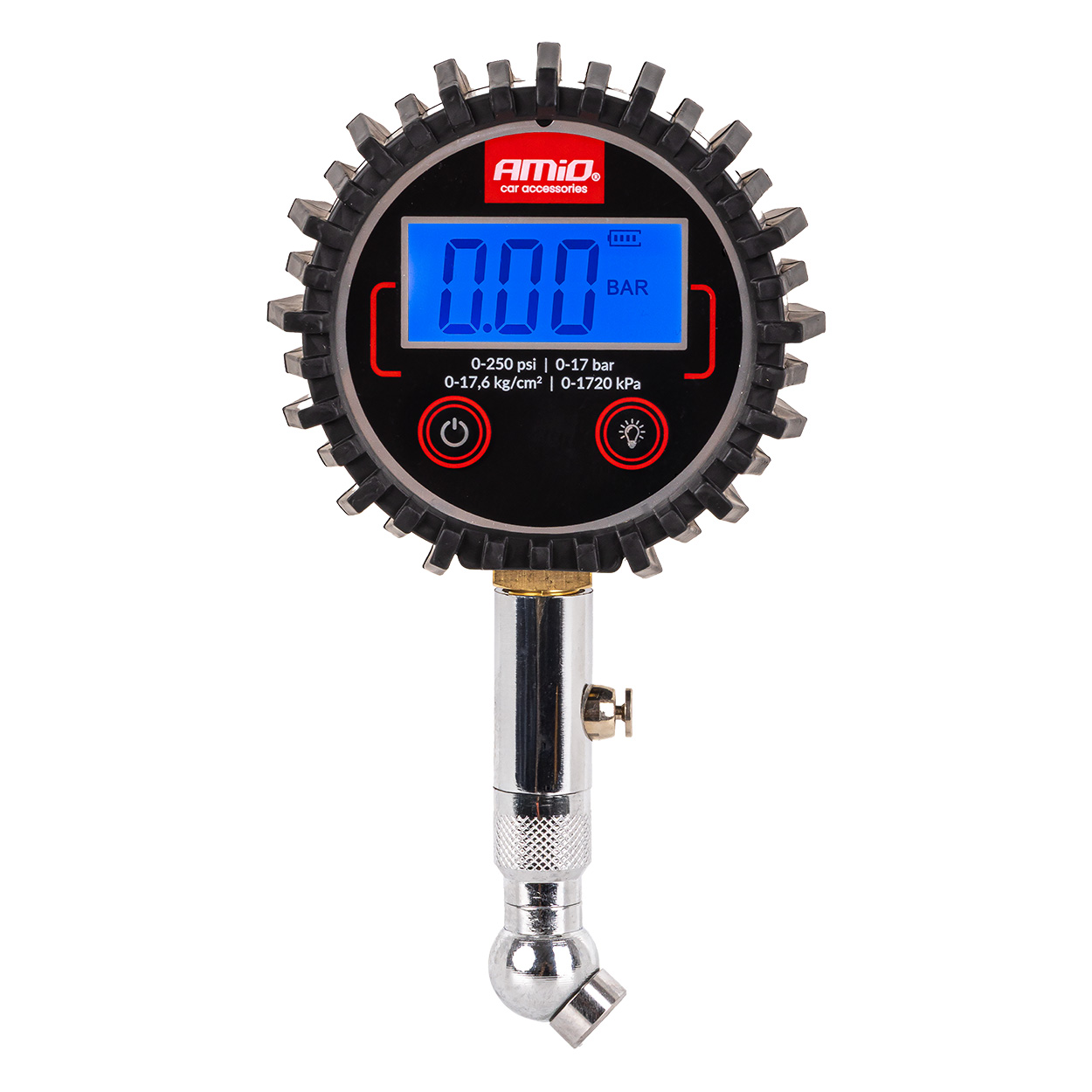

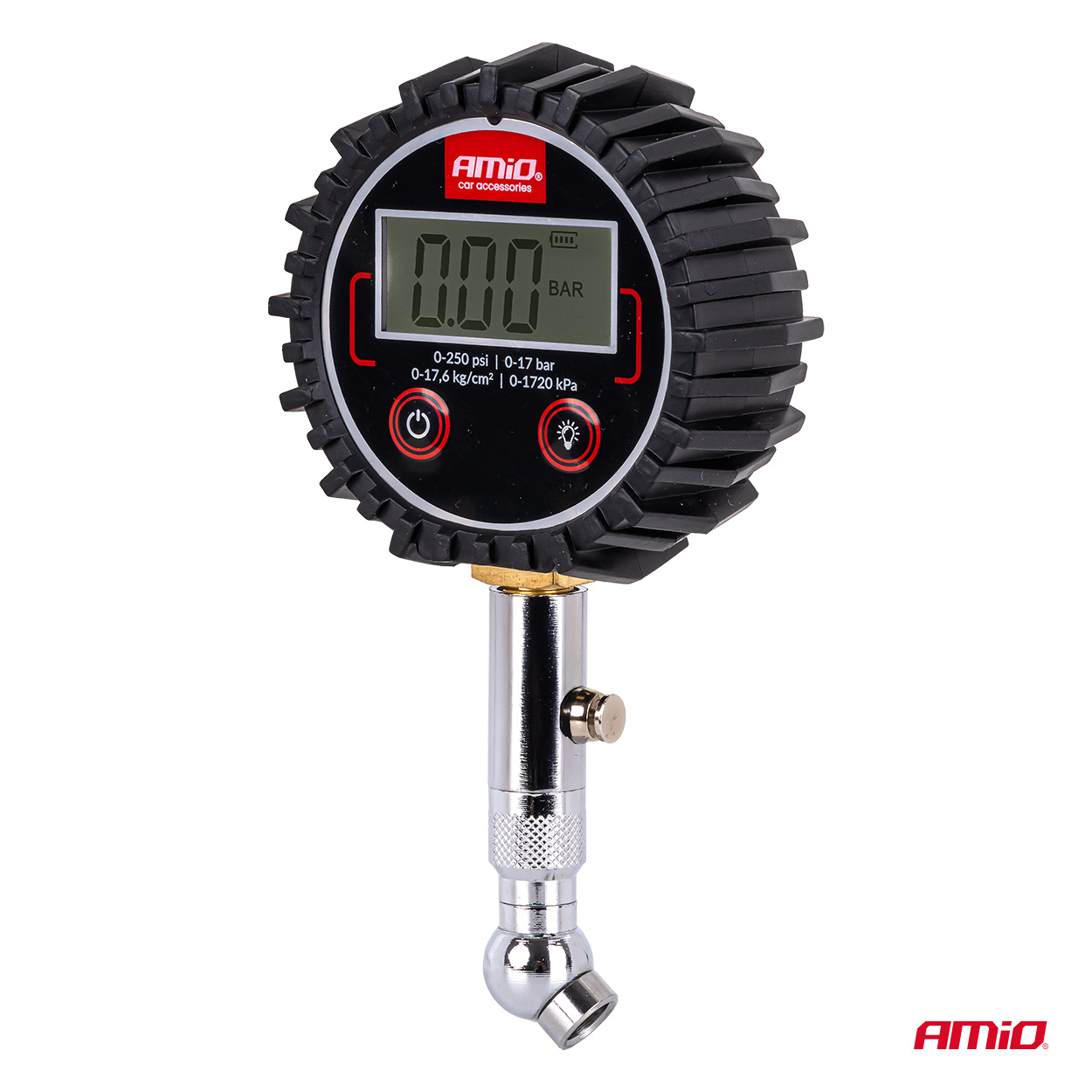

• Large LCD display with clear readings
• Auto-off function

Usage / tips:

• Clean the valve stem before attaching to ensure accuracy
• Securely attach and check sealing

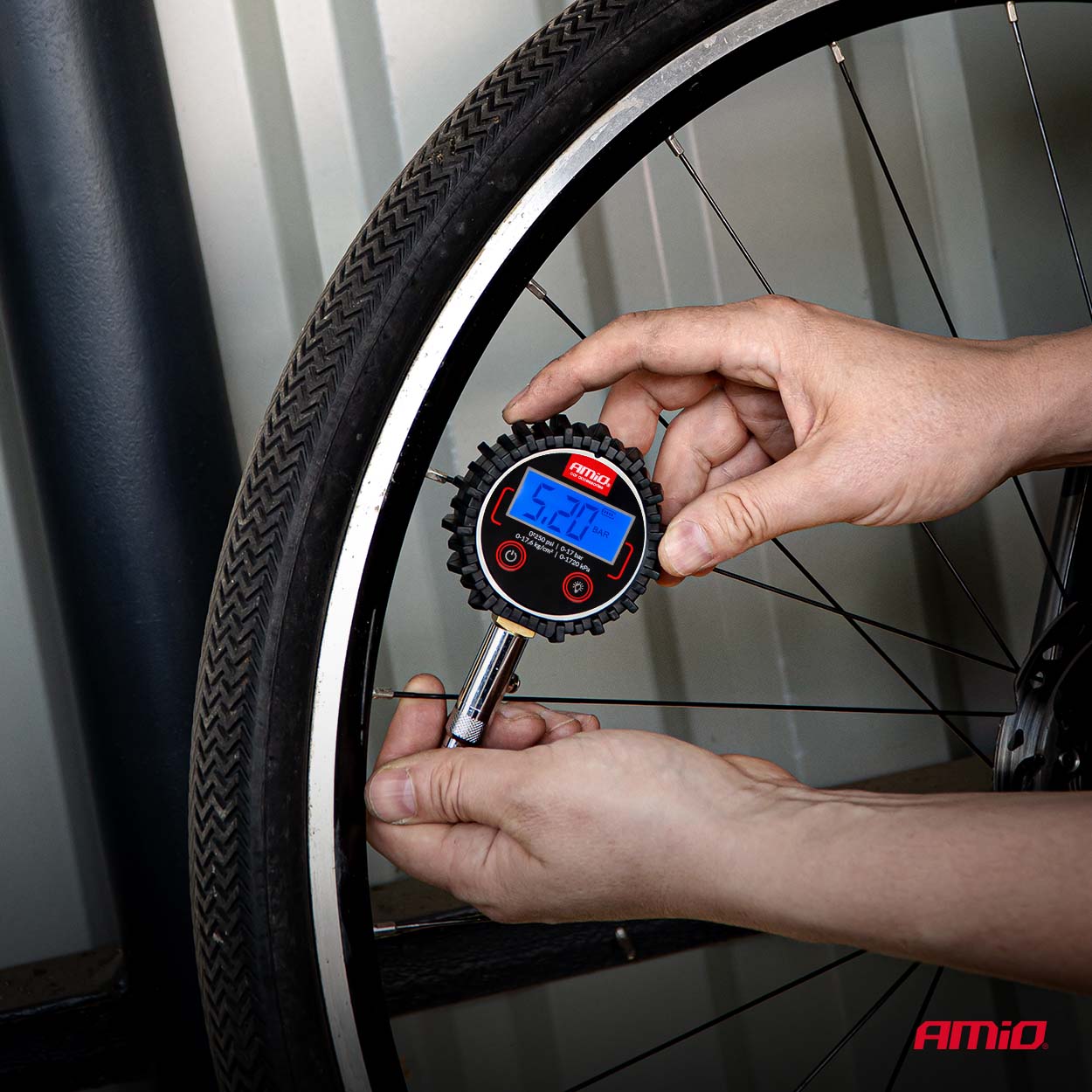

• Read the pressure on the LCD display
• Release excess pressure if necessary using the bleed valve
• After measurement, remove carefully and protect from dust
• Check batteries regularly
